SPEC® CFP2006 Result

Hewlett-Packard Company

ProLiant DL360 G5
(2.66 GHz, Intel Xeon processor X5355)

SPECfp®2006 = 14.4

SPECfp_base2006 = 14.3

CPU2006 license:	3	Test date:	Feb-2007
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Jan-2007
Tested by:	Hewlett-Packard Company	Software Availability:	Nov-2006

Hardware
CPU Name:	Intel Xeon X5355
CPU Characteristics:	2.66GHz, 2x4 MB L2 shared, 1333 MHz system bus
CPU MHz:	2666
FPU:	Integrated
CPU(s) enabled:	1 core, 1 chip, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2 GB PC2-5300 CL5)
Disk Subsystem:	2x72 GB 10 K SAS
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) kernel 2.6.16.21-0.8-default
Compiler:	Intel C++ Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_cc_c_9.1.045 Build no 20061101 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel:	No
File System:	ext2
System State:	Multi-user run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

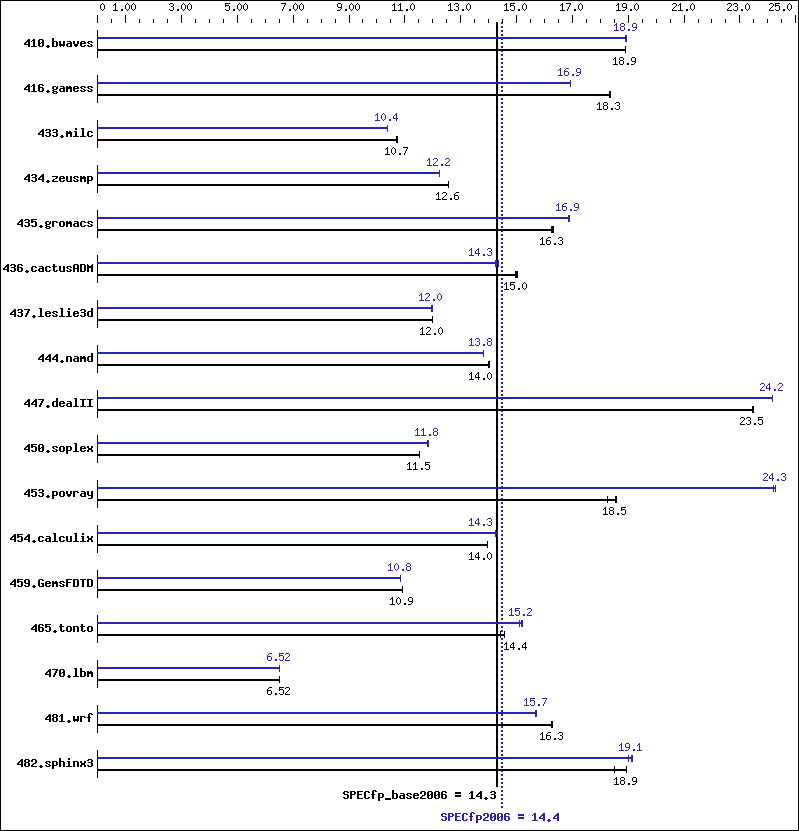

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	720	18.9	719	18.9	719	18.9	718	18.9	718	18.9	718	18.9
416.gamess	1067	18.3	1068	18.3	1067	18.3	1155	16.9	1155	16.9	1156	16.9
433.milc	857	10.7	856	10.7	856	10.7	884	10.4	884	10.4	883	10.4
434.zeusmp	724	12.6	724	12.6	724	12.6	744	12.2	744	12.2	744	12.2
435.gromacs	438	16.3	438	16.3	440	16.2	423	16.9	423	16.9	423	16.9
436.cactusADM	796	15.0	800	14.9	795	15.0	836	14.3	839	14.2	833	14.4
437.leslie3d	784	12.0	783	12.0	784	12.0	785	12.0	785	12.0	786	12.0
444.namd	572	14.0	572	14.0	572	14.0	580	13.8	580	13.8	580	13.8
447.dealII	487	23.5	488	23.5	488	23.5	473	24.2	474	24.2	473	24.2
450.soplex	723	11.5	723	11.5	723	11.5	706	11.8	705	11.8	705	11.8
453.povray	287	18.5	291	18.3	286	18.6	219	24.3	220	24.2	219	24.3
454.calculix	591	14.0	591	14.0	591	14.0	576	14.3	576	14.3	579	14.3
459.GemsFDTD	973	10.9	973	10.9	973	10.9	978	10.8	978	10.8	980	10.8
465.tonto	681	14.4	675	14.6	683	14.4	647	15.2	651	15.1	649	15.2
470.lbm	2107	6.52	2108	6.52	2108	6.52	2106	6.52	2108	6.52	2108	6.52
481.wrf	686	16.3	686	16.3	687	16.3	711	15.7	712	15.7	712	15.7
482.sphinx3	1029	18.9	1053	18.5	1029	18.9	1019	19.1	1017	19.2	1026	19.0

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'
Single processor kernel used

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64
