| CPU2006 license: | 22 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jan-2007 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | X5355 |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (73GB 15400 rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 x64 Enterprise Edition + SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 - Build 20061103Z, Package-ID W_CC_C_9.1.033 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Smart Heap Library, Version 8 |

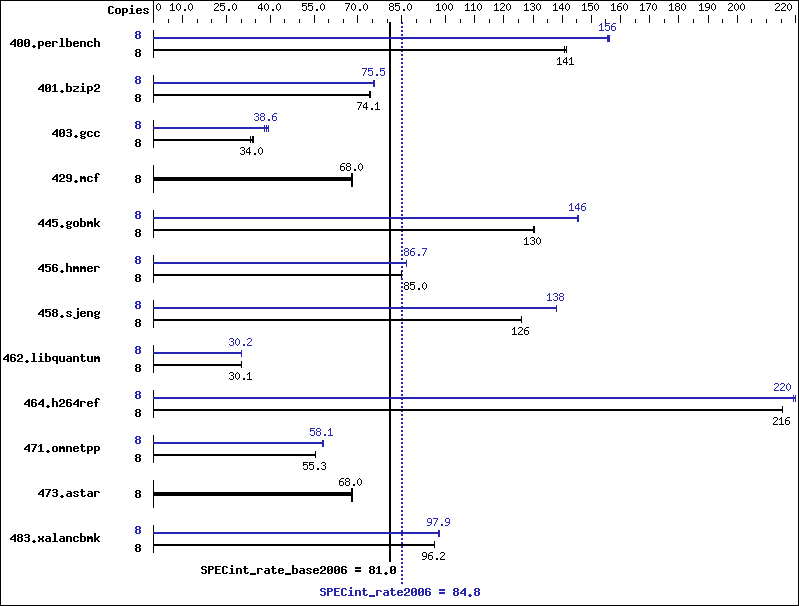

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 555 | 141 | 553 | 141 | 553 | 141 | 8 | 503 | 155 | 502 | 156 | 501 | 156 |
| 401.bzip2 | 8 | 1041 | 74.2 | 1043 | 74.0 | 1042 | 74.1 | 8 | 1022 | 75.5 | 1022 | 75.5 | 1018 | 75.8 |
| 403.gcc | 8 | 1935 | 33.3 | 1880 | 34.2 | 1896 | 34.0 | 8 | 1670 | 38.6 | 1687 | 38.2 | 1635 | 39.4 |
| 429.mcf | 8 | 1074 | 68.0 | 1073 | 68.0 | 1069 | 68.2 | 8 | 1074 | 68.0 | 1073 | 68.0 | 1069 | 68.2 |
| 445.gobmk | 8 | 644 | 130 | 645 | 130 | 644 | 130 | 8 | 577 | 145 | 576 | 146 | 576 | 146 |
| 456.hmmer | 8 | 879 | 85.0 | 878 | 85.0 | 878 | 85.0 | 8 | 861 | 86.7 | 861 | 86.7 | 861 | 86.7 |
| 458.sjeng | 8 | 769 | 126 | 769 | 126 | 769 | 126 | 8 | 701 | 138 | 701 | 138 | 701 | 138 |
| 462.libquantum | 8 | 5508 | 30.1 | 5510 | 30.1 | 5507 | 30.1 | 8 | 5491 | 30.2 | 5489 | 30.2 | 5488 | 30.2 |
| 464.h264ref | 8 | 821 | 216 | 821 | 216 | 822 | 215 | 8 | 805 | 220 | 807 | 219 | 805 | 220 |
| 471.omnetpp | 8 | 903 | 55.4 | 904 | 55.3 | 904 | 55.3 | 8 | 862 | 58.0 | 861 | 58.1 | 861 | 58.1 |
| 473.astar | 8 | 827 | 67.9 | 826 | 68.0 | 826 | 68.0 | 8 | 827 | 67.9 | 826 | 68.0 | 826 | 68.0 |
| 483.xalancbmk | 8 | 574 | 96.2 | 574 | 96.2 | 574 | 96.2 | 8 | 564 | 98.0 | 564 | 97.8 | 564 | 97.9 |
General Notes
The PRIMERGY RX300 S3 and the PRIMERGY TX300 S3 are electronically equivalent. The system bus runs at 1333 MHz BIOS configuration: Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_NO_NEED_VA_COPY |
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_NO_NEED_VA_COPY |
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F512000000 -link -FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | Same as 471.omnetpp |
