| CPU2006 license: | 3 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Nov-2006 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-5300F CL5) |
| Disk Subsystem: | 4x36 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise x64 Edition, SP1 |
| Compiler: | Intel C++ Compiler for 32-bit applications, Version 9.1, Build 20061103Z Package ID: W_CC_C_9.1.033 Microsoft Visual Studio .NET 2003 (v7.1.3088, for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

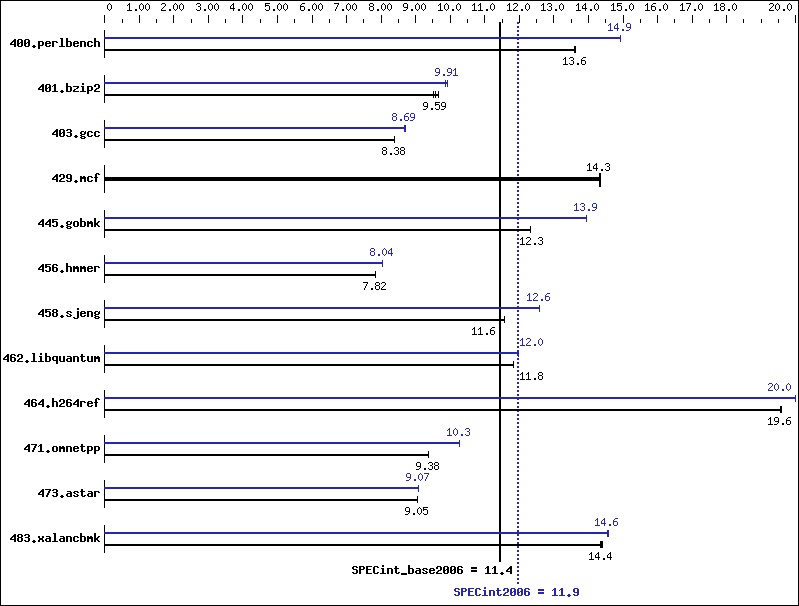

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 718 | 13.6 | 718 | 13.6 | 718 | 13.6 | 655 | 14.9 | 655 | 14.9 | 655 | 14.9 |
| 401.bzip2 | 1007 | 9.59 | 999 | 9.66 | 1015 | 9.50 | 973 | 9.91 | 973 | 9.92 | 978 | 9.86 |
| 403.gcc | 960 | 8.39 | 960 | 8.38 | 960 | 8.38 | 926 | 8.69 | 926 | 8.69 | 925 | 8.70 |
| 429.mcf | 636 | 14.3 | 636 | 14.3 | 637 | 14.3 | 636 | 14.3 | 636 | 14.3 | 637 | 14.3 |
| 445.gobmk | 852 | 12.3 | 851 | 12.3 | 851 | 12.3 | 752 | 13.9 | 752 | 13.9 | 752 | 13.9 |
| 456.hmmer | 1193 | 7.82 | 1193 | 7.82 | 1192 | 7.83 | 1160 | 8.04 | 1161 | 8.04 | 1160 | 8.04 |
| 458.sjeng | 1046 | 11.6 | 1046 | 11.6 | 1047 | 11.6 | 962 | 12.6 | 962 | 12.6 | 962 | 12.6 |
| 462.libquantum | 1752 | 11.8 | 1752 | 11.8 | 1752 | 11.8 | 1730 | 12.0 | 1730 | 12.0 | 1730 | 12.0 |
| 464.h264ref | 1131 | 19.6 | 1131 | 19.6 | 1130 | 19.6 | 1107 | 20.0 | 1107 | 20.0 | 1107 | 20.0 |
| 471.omnetpp | 666 | 9.38 | 666 | 9.38 | 667 | 9.37 | 609 | 10.3 | 609 | 10.3 | 609 | 10.3 |
| 473.astar | 776 | 9.05 | 776 | 9.05 | 776 | 9.05 | 774 | 9.07 | 774 | 9.07 | 773 | 9.08 |
| 483.xalancbmk | 480 | 14.4 | 480 | 14.4 | 479 | 14.4 | 474 | 14.6 | 474 | 14.6 | 474 | 14.6 |
Platform Notes
Power Regulator set to Static High Performance Mode in BIOS. Adjacent Sector Prefetch disabled in BIOS.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
