| CPU2006 license: | 22 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Nov-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Jan-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | Dual Core, 2.66 GHz |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | SATA II 7200 rpm |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP, 64 bit Edition |
| Compiler: | Intel C++ Compiler for 32-bit applications, - version 9.1, Build 20070109Z Microsoft Visual Studio .NET 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

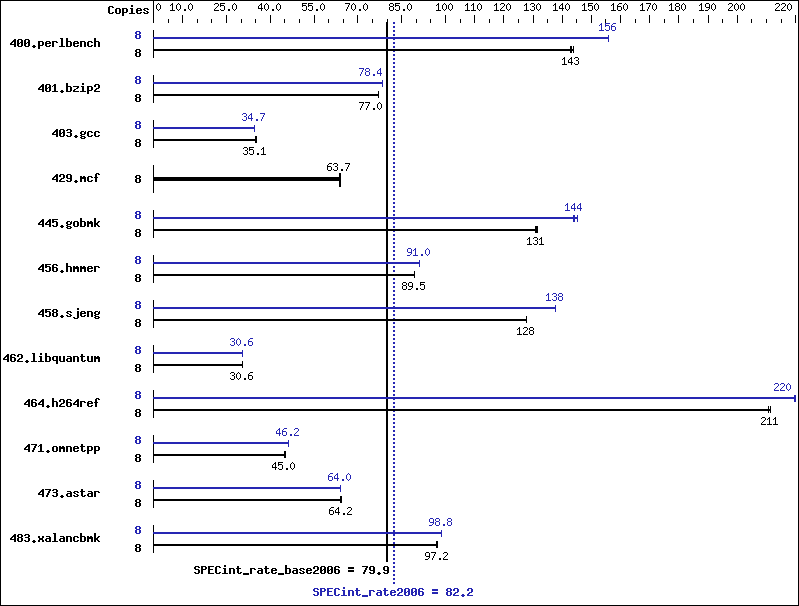

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 547 | 143 | 543 | 144 | 546 | 143 | 8 | 501 | 156 | 501 | 156 | 501 | 156 |
| 401.bzip2 | 8 | 1003 | 76.9 | 1002 | 77.1 | 1003 | 77.0 | 8 | 986 | 78.3 | 985 | 78.4 | 984 | 78.5 |
| 403.gcc | 8 | 1833 | 35.1 | 1835 | 35.1 | 1840 | 35.0 | 8 | 1861 | 34.6 | 1857 | 34.7 | 1857 | 34.7 |
| 429.mcf | 8 | 1145 | 63.7 | 1148 | 63.6 | 1141 | 63.9 | 8 | 1145 | 63.7 | 1148 | 63.6 | 1141 | 63.9 |
| 445.gobmk | 8 | 641 | 131 | 639 | 131 | 639 | 131 | 8 | 577 | 145 | 582 | 144 | 583 | 144 |
| 456.hmmer | 8 | 834 | 89.5 | 833 | 89.6 | 834 | 89.5 | 8 | 821 | 91.0 | 820 | 91.1 | 820 | 91.0 |
| 458.sjeng | 8 | 758 | 128 | 758 | 128 | 758 | 128 | 8 | 703 | 138 | 703 | 138 | 703 | 138 |
| 462.libquantum | 8 | 5412 | 30.6 | 5409 | 30.6 | 5410 | 30.6 | 8 | 5417 | 30.6 | 5416 | 30.6 | 5412 | 30.6 |
| 464.h264ref | 8 | 838 | 211 | 840 | 211 | 837 | 211 | 8 | 806 | 220 | 806 | 220 | 805 | 220 |
| 471.omnetpp | 8 | 1110 | 45.1 | 1111 | 45.0 | 1110 | 45.0 | 8 | 1082 | 46.2 | 1083 | 46.2 | 1082 | 46.2 |
| 473.astar | 8 | 875 | 64.2 | 874 | 64.2 | 873 | 64.3 | 8 | 877 | 64.0 | 879 | 63.9 | 878 | 64.0 |
| 483.xalancbmk | 8 | 569 | 97.1 | 568 | 97.2 | 568 | 97.2 | 8 | 559 | 98.7 | 559 | 98.8 | 559 | 98.8 |
Platform Notes
BIOS default settings have been used, except: High Bandwith Option Enabled
General Notes
'start /b /wait /affinity' command is used to bind CPU(s) to processes For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
