SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL20p G4
(2.66 GHz, Intel Xeon processor X5355)

CPU2006 license: 3 Test date: Jan-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

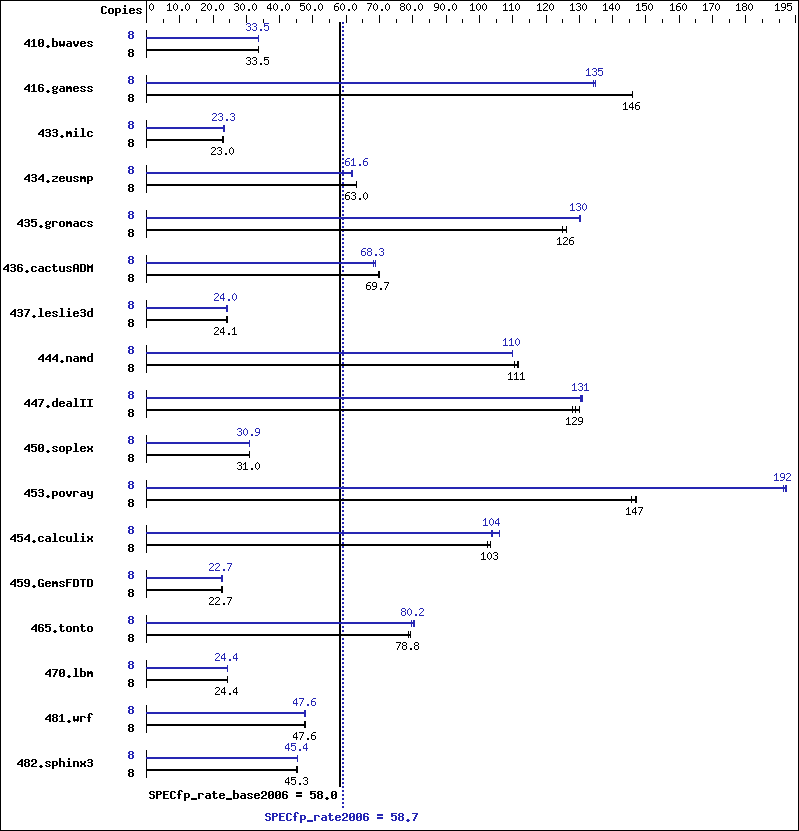

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333 MHz bus
CPU MHz: 2666
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300 CL5)
Disk Subsystem: 2x72 GB SAS, 10 K RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-default
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_cc_c_9.1.045 Build no 20061101
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3242 33.5 3243 33.5 3243 33.5 8 3241 33.5 3242 33.5 3241 33.5
416.gamess 8 1072 146   1073 146   1073 146   8 1167 134   1161 135   1161 135
433.milc 8 3194 23.0 3195 23.0 3198 23.0 8 3157 23.3 3155 23.3 3154 23.3
434.zeusmp 8 1155 63.0 1155 63.0 1155 63.0 8 1178 61.8 1181 61.6 1183 61.6
435.gromacs 8 457 125   453 126   453 126   8 439 130   440 130   438 130
436.cactusADM 8 1369 69.8 1372 69.7 1372 69.7 8 1399 68.3 1405 68.0 1392 68.7
437.leslie3d 8 3105 24.2 3127 24.1 3127 24.1 8 3131 24.0 3128 24.0 3110 24.2
444.namd 8 581 110   576 111   575 112   8 584 110   584 110   584 110
447.dealII 8 704 130   715 128   711 129   8 698 131   700 131   701 130
450.soplex 8 2154 31.0 2156 31.0 2155 31.0 8 2156 30.9 2158 30.9 2160 30.9
453.povray 8 292 146   290 147   289 147   8 222 192   222 192   222 191
454.calculix 8 639 103   638 103   644 103   8 622 106   638 103   635 104
459.GemsFDTD 8 3744 22.7 3744 22.7 3742 22.7 8 3744 22.7 3740 22.7 3744 22.7
465.tonto 8 999 78.8 994 79.2 1001 78.6 8 982 80.2 988 79.7 978 80.5
470.lbm 8 4507 24.4 4508 24.4 4507 24.4 8 4506 24.4 4506 24.4 4505 24.4
481.wrf 8 1876 47.6 1874 47.7 1885 47.4 8 1875 47.6 1880 47.5 1876 47.6
482.sphinx3 8 3463 45.0 3446 45.3 3441 45.3 8 3430 45.5 3433 45.4 3431 45.4

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
Environment stack size set to 'unlimited'

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
