SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL480c
(2.66 GHz, Intel Xeon processor X5355)

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

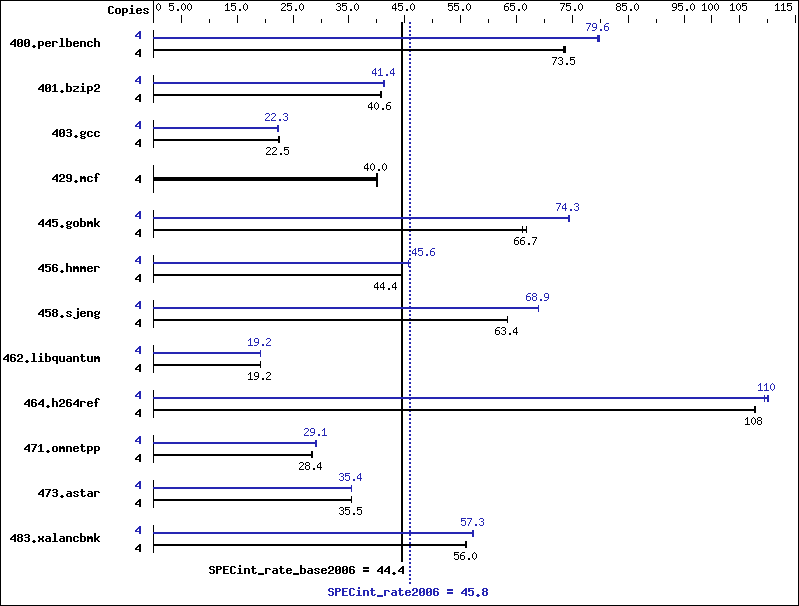

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66GHz, 4x2 MB L2 shared, 1333 MHz bus
CPU MHz: 2660
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 10 K SAS
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise X64 Edition
Compiler: Intel C++ Compiler 9.1 for 32-bit apps,
Build 20060323Z
Package ID: W_CC_P_9.1.020
Microsoft Visual Studio .NET 2003
(v7.1.3088, for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 530 73.7 532 73.5 532 73.5 4 489 79.9 491 79.6 492 79.4
401.bzip2 4 951 40.6 950 40.6 947 40.8 4 932 41.4 937 41.2 933 41.4
403.gcc 4 1442 22.3 1430 22.5 1434 22.5 4 1449 22.2 1445 22.3 1441 22.4
429.mcf 4 911 40.0 915 39.9 912 40.0 4 911 40.0 915 39.9 912 40.0
445.gobmk 4 629 66.7 635 66.0 628 66.8 4 564 74.3 563 74.5 565 74.3
456.hmmer 4 840 44.4 840 44.4 840 44.4 4 818 45.6 818 45.6 818 45.6
458.sjeng 4 763 63.4 763 63.4 763 63.4 4 702 68.9 702 69.0 703 68.9
462.libquantum 4 4328 19.2 4327 19.2 4326 19.2 4 4325 19.2 4322 19.2 4327 19.2
464.h264ref 4 823 108   822 108   821 108   4 805 110   804 110   809 109
471.omnetpp 4 881 28.4 881 28.4 881 28.4 4 858 29.1 858 29.2 861 29.0
473.astar 4 791 35.5 791 35.5 791 35.5 4 793 35.4 793 35.4 793 35.4
483.xalancbmk 4 493 56.0 492 56.1 494 55.9 4 481 57.4 482 57.3 483 57.1

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.20090715.02.xml.
