| CPU2006 license: | 13 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Aug-2006 |
| Tested by: | Intel Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Duo E6700 |
| CPU Characteristics: | 2.67 GHz, 1066 MHz bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800, CL5) |
| Disk Subsystem: | Maxtor DiamondMax 10 6B300S0 300GB NCQ Serial ATA (7200 RPM, 16MB cache) |
| Other Hardware: | SoundBlaster Live! PCI card |
| Software | |
|---|---|
| Operating System: | Windows XP Professional w/ SP2 |
| Compiler: | Intel C++ and Fortran Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

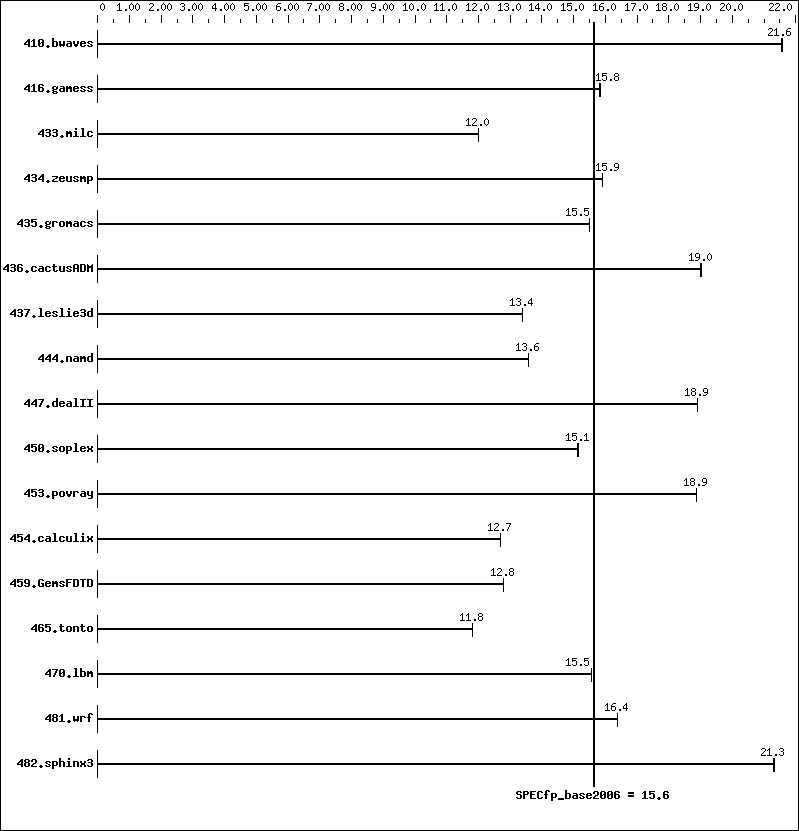

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 630 | 21.6 | 630 | 21.6 | 630 | 21.6 | ||||||
| 416.gamess | 1237 | 15.8 | 1237 | 15.8 | 1237 | 15.8 | ||||||
| 433.milc | 765 | 12.0 | 764 | 12.0 | 765 | 12.0 | ||||||
| 434.zeusmp | 572 | 15.9 | 572 | 15.9 | 572 | 15.9 | ||||||
| 435.gromacs | 461 | 15.5 | 461 | 15.5 | 461 | 15.5 | ||||||
| 436.cactusADM | 628 | 19.0 | 629 | 19.0 | 628 | 19.0 | ||||||
| 437.leslie3d | 702 | 13.4 | 701 | 13.4 | 701 | 13.4 | ||||||
| 444.namd | 591 | 13.6 | 591 | 13.6 | 591 | 13.6 | ||||||
| 447.dealII | 605 | 18.9 | 605 | 18.9 | 605 | 18.9 | ||||||
| 450.soplex | 551 | 15.1 | 551 | 15.1 | 551 | 15.1 | ||||||
| 453.povray | 282 | 18.9 | 282 | 18.9 | 282 | 18.9 | ||||||
| 454.calculix | 650 | 12.7 | 650 | 12.7 | 650 | 12.7 | ||||||
| 459.GemsFDTD | 830 | 12.8 | 830 | 12.8 | 830 | 12.8 | ||||||
| 465.tonto | 834 | 11.8 | 833 | 11.8 | 834 | 11.8 | ||||||
| 470.lbm | 884 | 15.5 | 884 | 15.5 | 884 | 15.5 | ||||||
| 481.wrf | 682 | 16.4 | 682 | 16.4 | 682 | 16.4 | ||||||
| 482.sphinx3 | 915 | 21.3 | 914 | 21.3 | 914 | 21.3 | ||||||
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 1/2007: http://www.intel.com/products/motherboard/DG965WH/index.htm The system bus runs at 1066 MHz System was configured with Single nVidia Quad SLI Geforce 7950 GX2
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
