SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DG965WH motherboard
(3.60 GHz, Intel Pentium D processor 960)

SPECint®2006 = Not Run

CPU2006 license: 13 Test date: Jan-2007
Test sponsor: Intel Corporation Hardware Availability: Aug-2006
Tested by: Intel Corporation Software Availability: Aug-2006

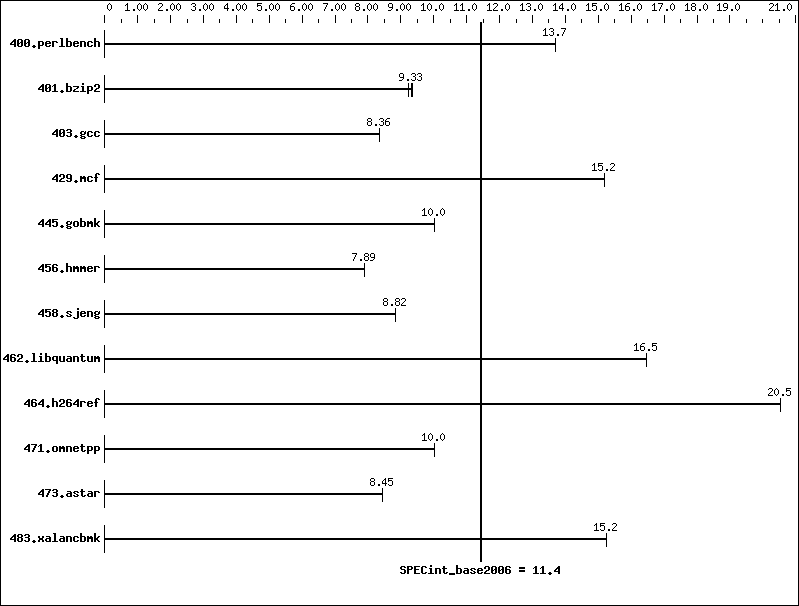

Benchmark results graph
Hardware
CPU Name: Intel Pentium D 960
CPU Characteristics: 3.60 GHz, 800 MHz bus
CPU MHz: 3600
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800,
CL5)
Disk Subsystem: Maxtor DiamondMax 10 6B300S0 300GB NCQ Serial ATA
(7200 RPM, 16MB cache)
Other Hardware: SoundBlaster Live! PCI card
Software
Operating System: Windows XP Professional w/ SP2
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 713 13.7  713 13.7  713 13.7
401.bzip2 1044 9.25 1034 9.33 1032 9.35
403.gcc 964 8.35 963 8.36 962 8.36
429.mcf 601 15.2  601 15.2  601 15.2
445.gobmk 1047 10.0  1047 10.0  1047 10.0
456.hmmer 1183 7.89 1183 7.89 1183 7.89
458.sjeng 1372 8.82 1372 8.82 1371 8.82
462.libquantum 1259 16.5  1259 16.5  1259 16.5
464.h264ref 1077 20.5  1078 20.5  1077 20.5
471.omnetpp 624 10.0  624 10.0  624 10.0
473.astar 831 8.45 831 8.45 830 8.45
483.xalancbmk 453 15.2  453 15.2  453 15.2

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 1/2007:
 http://www.intel.com/products/motherboard/DG965WH/index.htm
 The system bus runs at 800 MHz
 System was configured with Single nVidia Quad SLI Geforce 7950 GX2

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.xml.
