SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DG965WH motherboard
(3.4 GHz, Intel Pentium D processor 950)

SPECfp®_rate2006 = Not Run

CPU2006 license: 13 Test date: Jan-2007
Test sponsor: Intel Corporation Hardware Availability: Aug-2006
Tested by: Intel Corporation Software Availability: Aug-2006

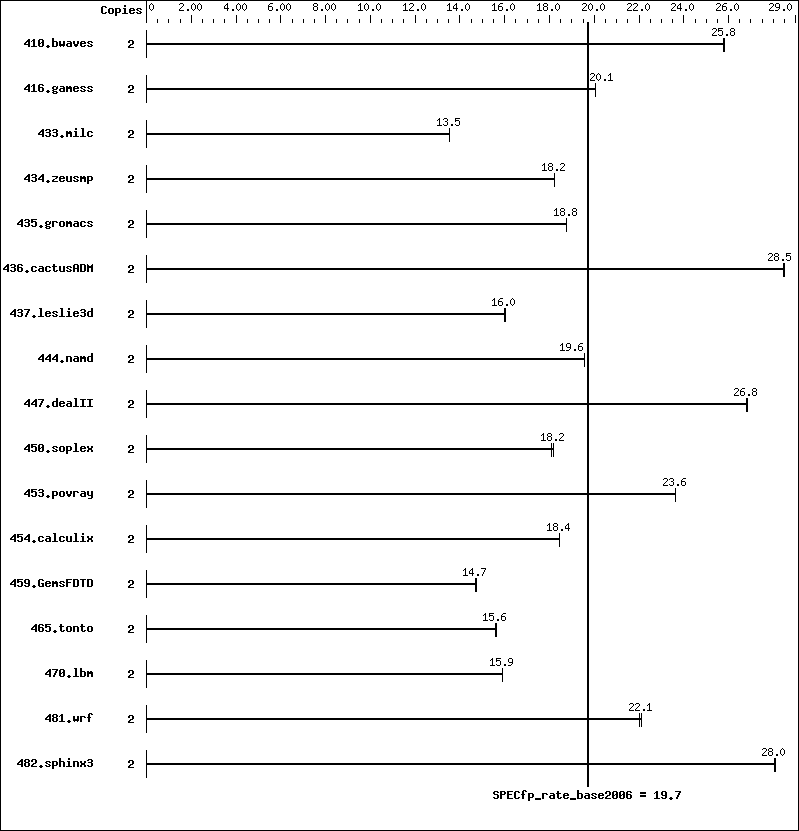

Benchmark results graph
Hardware
CPU Name: Intel Pentium D 950
CPU Characteristics: 3.4 GHz, 800 MHz bus
CPU MHz: 3400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 2 GB (2 1GB Micron MT16HTF12864AY-80ED4 DDR2 800,
CL5)
Disk Subsystem: Maxtor DiamondMax 10 6B300S0 300GB NCQ Serial ATA
(7200 RPM, 16MB cache)
Other Hardware: SoundBlaster Live! PCI card
Software
Operating System: Windows XP Professional w/ SP2
Compiler: Intel C++ and Fortran Compiler for IA32 version
9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: SmartHeap Library Version 8.0 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1054 25.8 1053 25.8 1053 25.8
416.gamess 2 1952 20.1 1952 20.1 1952 20.1
433.milc 2 1357 13.5 1356 13.5 1357 13.5
434.zeusmp 2 999 18.2 999 18.2 998 18.2
435.gromacs 2 761 18.8 761 18.8 761 18.8
436.cactusADM 2 839 28.5 840 28.5 840 28.5
437.leslie3d 2 1175 16.0 1175 16.0 1173 16.0
444.namd 2 819 19.6 819 19.6 819 19.6
447.dealII 2 853 26.8 853 26.8 854 26.8
450.soplex 2 917 18.2 917 18.2 922 18.1
453.povray 2 450 23.6 450 23.6 450 23.6
454.calculix 2 894 18.4 895 18.4 895 18.4
459.GemsFDTD 2 1444 14.7 1444 14.7 1442 14.7
465.tonto 2 1261 15.6 1261 15.6 1260 15.6
470.lbm 2 1727 15.9 1727 15.9 1727 15.9
481.wrf 2 1010 22.1 1014 22.0 1011 22.1
482.sphinx3 2 1390 28.0 1391 28.0 1388 28.1

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Product description located as of 1/2007:
 http://www.intel.com/products/motherboard/DG965WH/index.htm
 The system bus runs at 800 MHz
 System was configured with Single nVidia Quad SLI Geforce 7950 GX2

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090715.06.xml.
