| CPU2006 license: | 3 | Test date: | Feb-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jan-2007 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 2.66 GHz, 2x4 MB L2 shared, 1333 MHz bus |
| CPU MHz: | 2666 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB PC2-5300F CL5) |
| Disk Subsystem: | 4x36 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise X64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for 32-bit apps, Build 20060323Z Package ID: W_CC_P_9.1.020 Microsoft Visual Studio .NET 2003 (v7.1.3088, for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

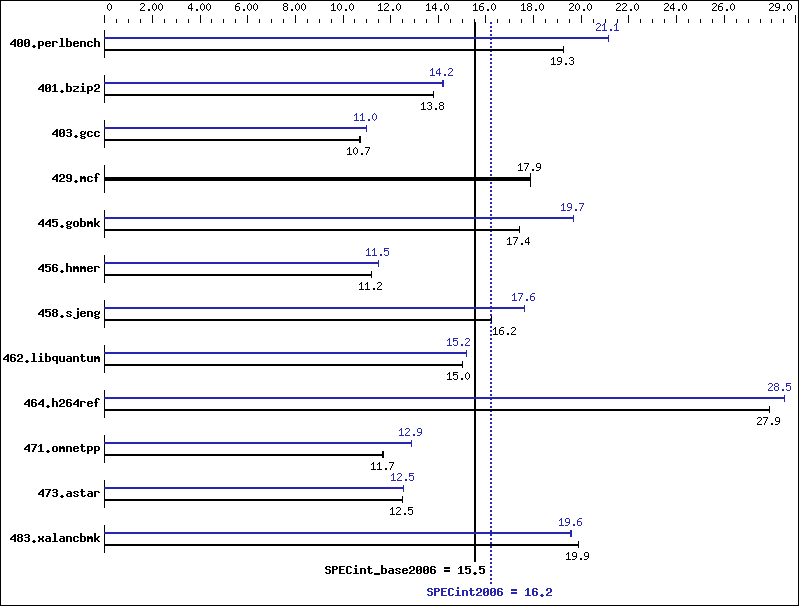

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 507 | 19.3 | 507 | 19.3 | 507 | 19.3 | 462 | 21.1 | 462 | 21.1 | 462 | 21.2 |
| 401.bzip2 | 699 | 13.8 | 699 | 13.8 | 699 | 13.8 | 680 | 14.2 | 680 | 14.2 | 680 | 14.2 |
| 403.gcc | 751 | 10.7 | 752 | 10.7 | 752 | 10.7 | 732 | 11.0 | 732 | 11.0 | 733 | 11.0 |
| 429.mcf | 511 | 17.9 | 511 | 17.9 | 511 | 17.9 | 511 | 17.9 | 511 | 17.9 | 511 | 17.9 |
| 445.gobmk | 603 | 17.4 | 603 | 17.4 | 602 | 17.4 | 534 | 19.7 | 534 | 19.7 | 534 | 19.7 |
| 456.hmmer | 834 | 11.2 | 834 | 11.2 | 835 | 11.2 | 812 | 11.5 | 811 | 11.5 | 812 | 11.5 |
| 458.sjeng | 745 | 16.2 | 745 | 16.2 | 746 | 16.2 | 687 | 17.6 | 687 | 17.6 | 686 | 17.6 |
| 462.libquantum | 1380 | 15.0 | 1380 | 15.0 | 1379 | 15.0 | 1364 | 15.2 | 1364 | 15.2 | 1364 | 15.2 |
| 464.h264ref | 793 | 27.9 | 793 | 27.9 | 793 | 27.9 | 776 | 28.5 | 776 | 28.5 | 776 | 28.5 |
| 471.omnetpp | 535 | 11.7 | 535 | 11.7 | 535 | 11.7 | 485 | 12.9 | 486 | 12.9 | 485 | 12.9 |
| 473.astar | 563 | 12.5 | 562 | 12.5 | 562 | 12.5 | 560 | 12.5 | 560 | 12.5 | 560 | 12.5 |
| 483.xalancbmk | 347 | 19.9 | 347 | 19.9 | 347 | 19.9 | 353 | 19.6 | 353 | 19.6 | 353 | 19.6 |
Platform Notes
Power Regulator set to Static High Performance Mode in BIOS. Adjacent Sector Prefetch disabled in BIOS.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
