SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS V840, AMD Opteron 2218

CPU2006 license: 22 Test date: Jan-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Nov-2006
Tested by: Fujitsu Siemens Computers Software Availability: Aug-2006

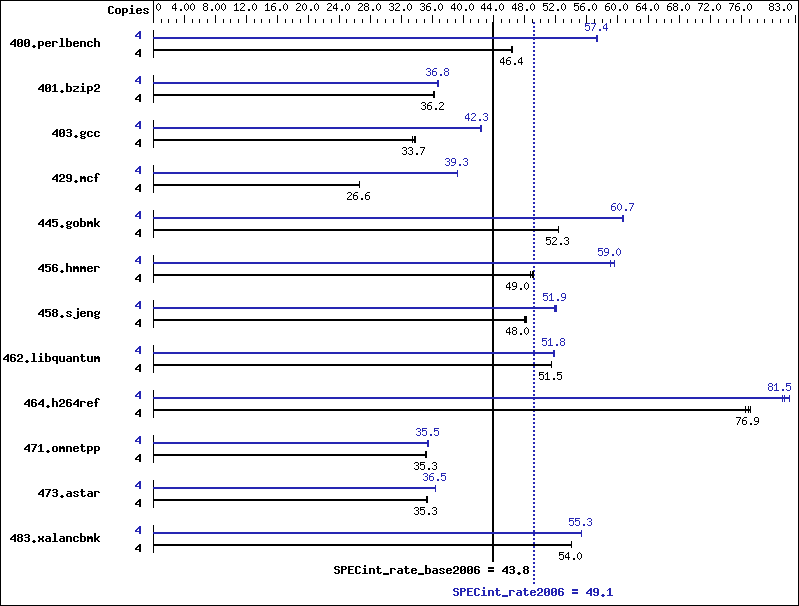

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2218
CPU Characteristics: Dual Core, 2.6 GHz, 2 MB L2-cache
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB DDR2-667 CL5 dual rank ECC DIMMs
registered)
Disk Subsystem: SATA II, 80 GB
Other Hardware: None
Software
Operating System: SLES 10 for AMD64/EM64T
Compiler: QLogic PathScale
Compiler Suite, Release 2.5
SmartHeap 8.0 32 bit Library for Linux
Auto Parallel: No
File System: ext3
System State: Multi-User SuSE Run Level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 845 46.3 843 46.4 843 46.4 4 683 57.2 681 57.4 681 57.4
401.bzip2 4 1063 36.3 1066 36.2 1065 36.2 4 1048 36.8 1050 36.8 1047 36.8
403.gcc 4 950 33.9 956 33.7 962 33.5 4 761 42.3 761 42.3 760 42.4
429.mcf 4 1369 26.6 1369 26.7 1370 26.6 4 928 39.3 928 39.3 928 39.3
445.gobmk 4 802 52.3 802 52.3 802 52.3 4 691 60.7 692 60.6 691 60.7
456.hmmer 4 765 48.8 760 49.1 762 49.0 4 627 59.5 632 59.0 632 59.0
458.sjeng 4 1008 48.0 1004 48.2 1010 47.9 4 929 52.1 932 51.9 933 51.9
462.libquantum 4 1610 51.5 1610 51.5 1610 51.5 4 1599 51.8 1600 51.8 1603 51.7
464.h264ref 4 1157 76.5 1147 77.2 1151 76.9 4 1086 81.5 1076 82.2 1089 81.3
471.omnetpp 4 708 35.3 712 35.1 708 35.3 4 705 35.4 705 35.5 704 35.5
473.astar 4 795 35.3 794 35.4 795 35.3 4 770 36.5 770 36.5 770 36.5
483.xalancbmk 4 511 54.1 511 54.0 511 54.0 4 499 55.4 499 55.3 499 55.3

Operating System Notes

 powersave -f is applied to set CPU to maximum frequency prior to run
 stacksize is set to unlimited prior to run
 taskset utility used to bind CPU(s) to processes
 numactl utility used to assign to each chip its local memory

General Notes

Binaries supplied by AMD
Compilation done on an Opteron-based system
         running SuSE 9.3 (Kernel 2.6.5.7)

BIOS default settings with
Node memory interleave disabled, SRAT enabled

For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast   -m32   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O2   -ipa   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -WOPT:aggstr=0   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -IPA:pu_reorder=2   -CG:gcm=off   -m32   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap
473.astar:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.25.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.25.xml.
