| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1.86 GHz, 8MB L2, 1066MHz bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

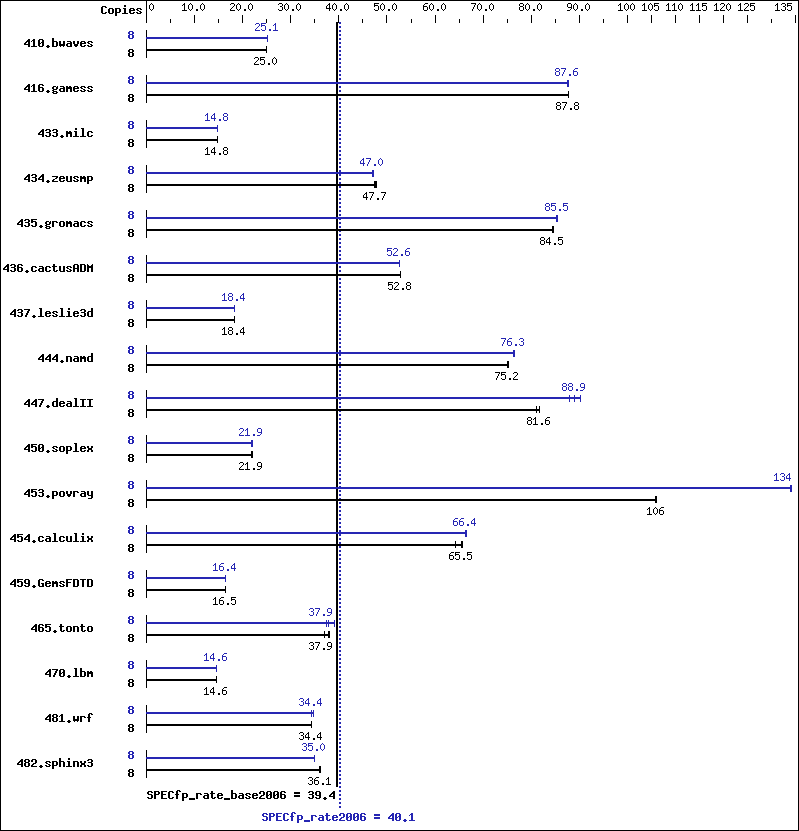

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 4340 | 25.0 | 4341 | 25.0 | 4341 | 25.0 | 8 | 4338 | 25.1 | 4338 | 25.1 | 4333 | 25.1 |
| 416.gamess | 8 | 1786 | 87.7 | 1784 | 87.8 | 1784 | 87.8 | 8 | 1788 | 87.6 | 1788 | 87.6 | 1787 | 87.6 |
| 433.milc | 8 | 4965 | 14.8 | 4954 | 14.8 | 4968 | 14.8 | 8 | 4956 | 14.8 | 4954 | 14.8 | 4966 | 14.8 |
| 434.zeusmp | 8 | 1539 | 47.3 | 1527 | 47.7 | 1522 | 47.8 | 8 | 1541 | 47.2 | 1550 | 47.0 | 1550 | 47.0 |
| 435.gromacs | 8 | 675 | 84.6 | 676 | 84.5 | 676 | 84.5 | 8 | 670 | 85.3 | 668 | 85.5 | 668 | 85.5 |
| 436.cactusADM | 8 | 1810 | 52.8 | 1810 | 52.8 | 1811 | 52.8 | 8 | 1819 | 52.6 | 1819 | 52.6 | 1819 | 52.5 |
| 437.leslie3d | 8 | 4096 | 18.4 | 4091 | 18.4 | 4094 | 18.4 | 8 | 4093 | 18.4 | 4096 | 18.4 | 4100 | 18.3 |
| 444.namd | 8 | 852 | 75.3 | 854 | 75.1 | 854 | 75.2 | 8 | 841 | 76.3 | 840 | 76.3 | 839 | 76.4 |
| 447.dealII | 8 | 1119 | 81.8 | 1128 | 81.1 | 1121 | 81.6 | 8 | 1014 | 90.2 | 1029 | 88.9 | 1042 | 87.9 |
| 450.soplex | 8 | 3061 | 21.8 | 3038 | 22.0 | 3048 | 21.9 | 8 | 3044 | 21.9 | 3039 | 22.0 | 3046 | 21.9 |
| 453.povray | 8 | 402 | 106 | 402 | 106 | 402 | 106 | 8 | 317 | 134 | 317 | 134 | 318 | 134 |
| 454.calculix | 8 | 1028 | 64.2 | 1004 | 65.7 | 1007 | 65.5 | 8 | 996 | 66.3 | 994 | 66.4 | 991 | 66.6 |
| 459.GemsFDTD | 8 | 5154 | 16.5 | 5156 | 16.5 | 5149 | 16.5 | 8 | 5179 | 16.4 | 5148 | 16.5 | 5172 | 16.4 |
| 465.tonto | 8 | 2128 | 37.0 | 2079 | 37.9 | 2073 | 38.0 | 8 | 2109 | 37.3 | 2076 | 37.9 | 2012 | 39.1 |
| 470.lbm | 8 | 7509 | 14.6 | 7517 | 14.6 | 7517 | 14.6 | 8 | 7507 | 14.6 | 7514 | 14.6 | 7516 | 14.6 |
| 481.wrf | 8 | 2597 | 34.4 | 2606 | 34.3 | 2601 | 34.4 | 8 | 2602 | 34.3 | 2577 | 34.7 | 2600 | 34.4 |
| 482.sphinx3 | 8 | 4317 | 36.1 | 4323 | 36.1 | 4318 | 36.1 | 8 | 4456 | 35.0 | 4457 | 35.0 | 4451 | 35.0 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
