| CPU2006 license: | 55 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | May-2006 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 1333 MHz Bus Speed |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB 667 MHz ECC CL5 DDR2 FB-DIMM) |
| Disk Subsystem: | 1 x 72 GB SAS 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional x64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for IA32 (20061103Z) Microsoft Visual Studio 2005 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

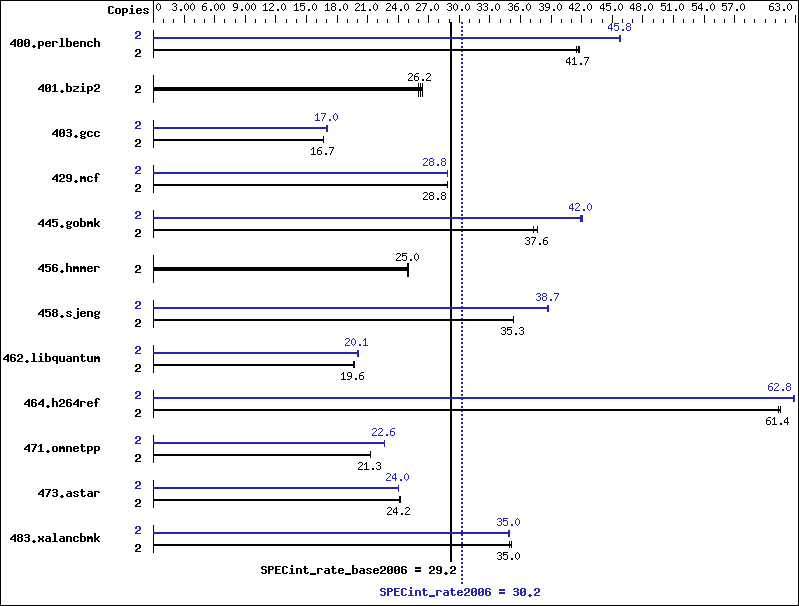

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 2 | 468 | 41.8 | 471 | 41.5 | 469 | 41.7 | 2 | 426 | 45.8 | 428 | 45.7 | 426 | 45.9 |
| 401.bzip2 | 2 | 733 | 26.3 | 743 | 26.0 | 736 | 26.2 | 2 | 733 | 26.3 | 743 | 26.0 | 736 | 26.2 |
| 403.gcc | 2 | 965 | 16.7 | 966 | 16.7 | 966 | 16.7 | 2 | 945 | 17.0 | 946 | 17.0 | 949 | 17.0 |
| 429.mcf | 2 | 632 | 28.9 | 633 | 28.8 | 633 | 28.8 | 2 | 633 | 28.8 | 632 | 28.8 | 633 | 28.8 |
| 445.gobmk | 2 | 557 | 37.6 | 562 | 37.3 | 557 | 37.7 | 2 | 500 | 41.9 | 500 | 42.0 | 499 | 42.1 |
| 456.hmmer | 2 | 747 | 25.0 | 747 | 25.0 | 748 | 25.0 | 2 | 747 | 25.0 | 747 | 25.0 | 748 | 25.0 |
| 458.sjeng | 2 | 686 | 35.3 | 686 | 35.3 | 686 | 35.3 | 2 | 625 | 38.7 | 625 | 38.7 | 625 | 38.7 |
| 462.libquantum | 2 | 2115 | 19.6 | 2103 | 19.7 | 2109 | 19.6 | 2 | 2066 | 20.1 | 2065 | 20.1 | 2069 | 20.0 |
| 464.h264ref | 2 | 721 | 61.4 | 720 | 61.5 | 722 | 61.3 | 2 | 705 | 62.8 | 704 | 62.9 | 705 | 62.7 |
| 471.omnetpp | 2 | 586 | 21.3 | 586 | 21.3 | 588 | 21.3 | 2 | 552 | 22.6 | 552 | 22.6 | 551 | 22.7 |
| 473.astar | 2 | 581 | 24.2 | 581 | 24.2 | 581 | 24.2 | 2 | 583 | 24.1 | 584 | 24.0 | 584 | 24.0 |
| 483.xalancbmk | 2 | 395 | 35.0 | 393 | 35.1 | 395 | 35.0 | 2 | 397 | 34.8 | 395 | 35.0 | 395 | 35.0 |
General Notes
BIOS Settings
Adjacent Cache Line Prefetch set to ON:
Prefetch data in order to shorten execution
cycles and maximize data processing efficiency.
Snoop Filter set to OFF
Snoop Filter preserves cache coherency while minimizing
snoops to remote nodes.
32-bit binaries were built on Windows XP Professional x64 Edition
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | basepeak = yes |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | ONESTEP -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| 471.omnetpp: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | ONESTEP -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
