| CPU2006 license: | 55 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | May-2006 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 1333 MHz Bus Speed |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (8x1 GB 667 MHz ECC CL5 DDR2 FB-DIMM) |
| Disk Subsystem: | 1 x 72 GB SAS 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional x64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for IA32 (20061103Z) Microsoft Visual Studio 2005 |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

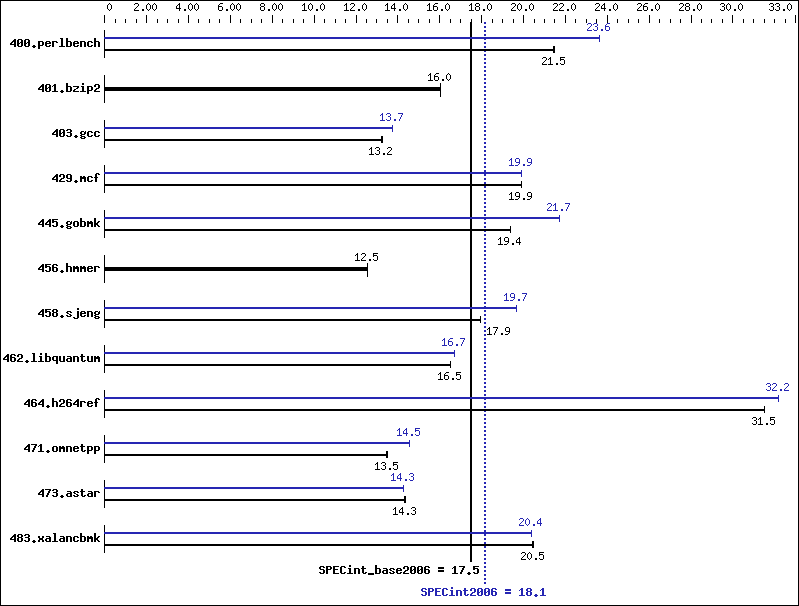

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 456 | 21.4 | 455 | 21.5 | 455 | 21.5 | 413 | 23.6 | 413 | 23.6 | 413 | 23.6 |
| 401.bzip2 | 602 | 16.0 | 602 | 16.0 | 602 | 16.0 | 602 | 16.0 | 602 | 16.0 | 602 | 16.0 |
| 403.gcc | 608 | 13.2 | 608 | 13.2 | 609 | 13.2 | 587 | 13.7 | 586 | 13.7 | 586 | 13.7 |
| 429.mcf | 459 | 19.9 | 459 | 19.9 | 459 | 19.9 | 459 | 19.9 | 459 | 19.9 | 459 | 19.9 |
| 445.gobmk | 542 | 19.4 | 542 | 19.4 | 542 | 19.4 | 483 | 21.7 | 483 | 21.7 | 483 | 21.7 |
| 456.hmmer | 744 | 12.5 | 744 | 12.5 | 744 | 12.5 | 744 | 12.5 | 744 | 12.5 | 744 | 12.5 |
| 458.sjeng | 674 | 17.9 | 674 | 17.9 | 674 | 17.9 | 615 | 19.7 | 615 | 19.7 | 615 | 19.7 |
| 462.libquantum | 1256 | 16.5 | 1257 | 16.5 | 1256 | 16.5 | 1242 | 16.7 | 1242 | 16.7 | 1242 | 16.7 |
| 464.h264ref | 703 | 31.5 | 703 | 31.5 | 703 | 31.5 | 687 | 32.2 | 687 | 32.2 | 687 | 32.2 |
| 471.omnetpp | 464 | 13.5 | 464 | 13.5 | 464 | 13.5 | 430 | 14.5 | 430 | 14.5 | 430 | 14.5 |
| 473.astar | 490 | 14.3 | 490 | 14.3 | 490 | 14.3 | 492 | 14.3 | 492 | 14.3 | 492 | 14.3 |
| 483.xalancbmk | 337 | 20.5 | 337 | 20.5 | 338 | 20.4 | 339 | 20.4 | 339 | 20.4 | 339 | 20.4 |
General Notes
BIOS Settings
Adjacent Cache Line Prefetch set to ON:
Prefetch data in order to shorten execution
cycles and maximize data processing efficiency.
Snoop Filter set to OFF
Snoop Filter preserves cache coherency while minimizing
snoops to remote nodes.
32-bit binaries were built on Windows XP Professional x64 Edition
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | basepeak = yes |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | ONESTEP -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| 471.omnetpp: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | ONESTEP -fast -Qcxx_features /F512000000 shlW32M.lib -link /FORCE:MULTIPLE |
