| CPU2006 license: | 55 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jan-2007 |
| Tested by: | Dell Inc. | Software Availability: | Oct-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3210 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2 GB 533MHz ECC DDR2 SDRAM) |
| Disk Subsystem: | 1 x 73GB SAS 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise x64 Edition |
| Compiler: | Intel C++ Compiler 9.1 for EM64T (20060925Z) Intel FORTRAN Compiler 9.1 for EM64T (20060925Z) Microsoft Visual Studio 2005 (8.0.50727.42) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 |

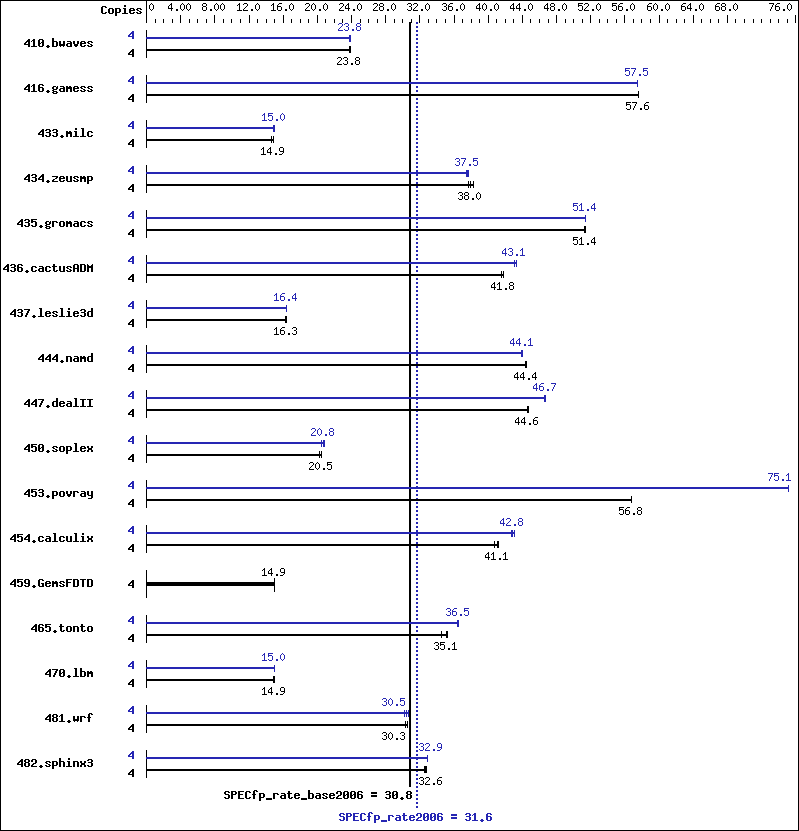

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2278 | 23.9 | 2291 | 23.7 | 2287 | 23.8 | 4 | 2288 | 23.8 | 2282 | 23.8 | 2278 | 23.9 |
| 416.gamess | 4 | 1361 | 57.6 | 1360 | 57.6 | 1360 | 57.6 | 4 | 1362 | 57.5 | 1362 | 57.5 | 1362 | 57.5 |
| 433.milc | 4 | 2500 | 14.7 | 2463 | 14.9 | 2464 | 14.9 | 4 | 2467 | 14.9 | 2455 | 15.0 | 2456 | 15.0 |
| 434.zeusmp | 4 | 966 | 37.7 | 959 | 38.0 | 951 | 38.3 | 4 | 965 | 37.7 | 970 | 37.5 | 971 | 37.5 |
| 435.gromacs | 4 | 557 | 51.3 | 555 | 51.4 | 555 | 51.4 | 4 | 556 | 51.4 | 556 | 51.4 | 556 | 51.4 |
| 436.cactusADM | 4 | 1152 | 41.5 | 1145 | 41.8 | 1144 | 41.8 | 4 | 1108 | 43.1 | 1103 | 43.3 | 1109 | 43.1 |
| 437.leslie3d | 4 | 2310 | 16.3 | 2299 | 16.4 | 2302 | 16.3 | 4 | 2301 | 16.3 | 2293 | 16.4 | 2293 | 16.4 |
| 444.namd | 4 | 722 | 44.4 | 722 | 44.4 | 722 | 44.5 | 4 | 730 | 43.9 | 728 | 44.1 | 728 | 44.1 |
| 447.dealII | 4 | 1026 | 44.6 | 1022 | 44.8 | 1027 | 44.5 | 4 | 980 | 46.7 | 981 | 46.6 | 980 | 46.7 |
| 450.soplex | 4 | 1646 | 20.3 | 1630 | 20.5 | 1625 | 20.5 | 4 | 1627 | 20.5 | 1606 | 20.8 | 1605 | 20.8 |
| 453.povray | 4 | 375 | 56.8 | 375 | 56.8 | 375 | 56.7 | 4 | 283 | 75.2 | 283 | 75.1 | 283 | 75.1 |
| 454.calculix | 4 | 800 | 41.2 | 804 | 41.1 | 809 | 40.8 | 4 | 771 | 42.8 | 772 | 42.8 | 766 | 43.1 |
| 459.GemsFDTD | 4 | 2836 | 15.0 | 2843 | 14.9 | 2843 | 14.9 | 4 | 2836 | 15.0 | 2843 | 14.9 | 2843 | 14.9 |
| 465.tonto | 4 | 1121 | 35.1 | 1138 | 34.6 | 1116 | 35.3 | 4 | 1080 | 36.5 | 1078 | 36.5 | 1078 | 36.5 |
| 470.lbm | 4 | 3676 | 14.9 | 3688 | 14.9 | 3672 | 15.0 | 4 | 3659 | 15.0 | 3659 | 15.0 | 3659 | 15.0 |
| 481.wrf | 4 | 1465 | 30.5 | 1474 | 30.3 | 1473 | 30.3 | 4 | 1477 | 30.2 | 1465 | 30.5 | 1459 | 30.6 |
| 482.sphinx3 | 4 | 2395 | 32.6 | 2388 | 32.6 | 2380 | 32.8 | 4 | 2373 | 32.9 | 2368 | 32.9 | 2371 | 32.9 |
General Notes
Adjacent Sector Prefetch disabled in BIOS, default enabled Binaries were built on Windows XP Professional x64 Edition
Base Compiler Invocation
C benchmarks:
| icl -Qc99 |
C++ benchmarks:
| icl |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qc99 ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_P64 |
| 416.gamess: | -DSPEC_CPU_P64 |
| 433.milc: | -D_Complex= -DSPEC_CPU_P64 |
| 434.zeusmp: | -DSPEC_CPU_P64 |
| 435.gromacs: | -D_Complex= -DSPEC_CPU_P64 |
| 436.cactusADM: | -D_Complex= -DSPEC_CPU_P64 -Qlowercase /assume:underscore |
| 437.leslie3d: | -DSPEC_CPU_P64 |
| 444.namd: | -DSPEC_CPU_P64 /TP |
| 447.dealII: | -D_Complex= -DSPEC_CPU_P64 -DBOOST_NO_INTRINSIC_WCHAR_T -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 450.soplex: | -DSPEC_CPU_P64 |
| 453.povray: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -D_Complex= -DSPEC_CPU_P64 -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 459.GemsFDTD: | -DSPEC_CPU_P64 |
| 465.tonto: | -DSPEC_CPU_P64 |
| 470.lbm: | -D_Complex= -DSPEC_CPU_P64 |
| 481.wrf: | -DSPEC_CPU_P64 -DSPEC_CPU_WINDOWS_ICL |
| 482.sphinx3: | -D_Complex= -DSPEC_CPU_P64 |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qc99 |
C++ benchmarks:
| icl |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qc99 ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 -Qcxx_features /F950000000 shlW64M.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| 410.bwaves: | ONESTEP -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 416.gamess: | ONESTEP -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 434.zeusmp: | Same as 410.bwaves |
| 437.leslie3d: | Same as 410.bwaves |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | Same as 410.bwaves |
Benchmarks using both Fortran and C:
| 435.gromacs: | -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 436.cactusADM: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qauto_ilp32 /F950000000 -link /FORCE:MULTIPLE |
| 454.calculix: | Same as 436.cactusADM |
| 481.wrf: | Same as 435.gromacs |
