| CPU2006 license: | 11 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2007 |
| Tested by: | IBM Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3210 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2GB PC2-5300 ECC) |
| Disk Subsystem: | 1 x 80 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20060816 Intel Fortran Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Smart Heap Library, Version 8 |

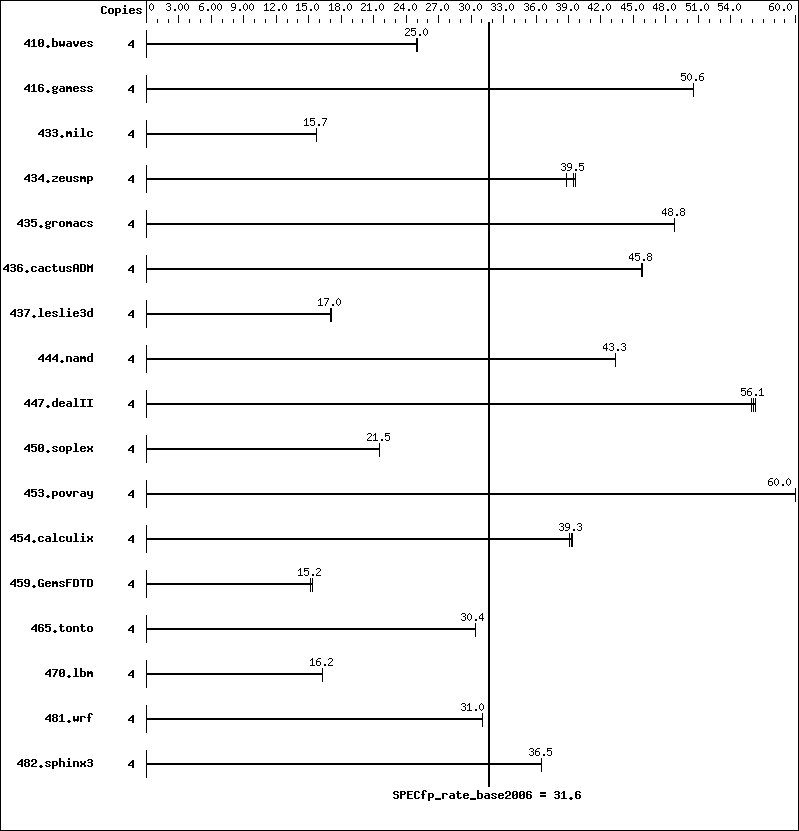

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2173 | 25.0 | 2181 | 24.9 | 2174 | 25.0 | |||||||
| 416.gamess | 4 | 1549 | 50.6 | 1549 | 50.6 | 1549 | 50.6 | |||||||
| 433.milc | 4 | 2343 | 15.7 | 2341 | 15.7 | 2341 | 15.7 | |||||||
| 434.zeusmp | 4 | 923 | 39.5 | 918 | 39.6 | 937 | 38.8 | |||||||
| 435.gromacs | 4 | 585 | 48.8 | 586 | 48.8 | 586 | 48.8 | |||||||
| 436.cactusADM | 4 | 1043 | 45.8 | 1044 | 45.8 | 1045 | 45.8 | |||||||
| 437.leslie3d | 4 | 2216 | 17.0 | 2203 | 17.1 | 2210 | 17.0 | |||||||
| 444.namd | 4 | 741 | 43.3 | 740 | 43.3 | 741 | 43.3 | |||||||
| 447.dealII | 4 | 818 | 55.9 | 816 | 56.1 | 813 | 56.3 | |||||||
| 450.soplex | 4 | 1551 | 21.5 | 1551 | 21.5 | 1547 | 21.6 | |||||||
| 453.povray | 4 | 355 | 60.0 | 355 | 60.0 | 355 | 60.0 | |||||||
| 454.calculix | 4 | 839 | 39.4 | 840 | 39.3 | 844 | 39.1 | |||||||
| 459.GemsFDTD | 4 | 2767 | 15.3 | 2794 | 15.2 | 2792 | 15.2 | |||||||
| 465.tonto | 4 | 1296 | 30.4 | 1294 | 30.4 | 1296 | 30.4 | |||||||
| 470.lbm | 4 | 3384 | 16.2 | 3387 | 16.2 | 3388 | 16.2 | |||||||
| 481.wrf | 4 | 1440 | 31.0 | 1441 | 31.0 | 1441 | 31.0 | |||||||
| 482.sphinx3 | 4 | 2135 | 36.5 | 2135 | 36.5 | 2133 | 36.5 | |||||||
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
