| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Dec-2006 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 2.0 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

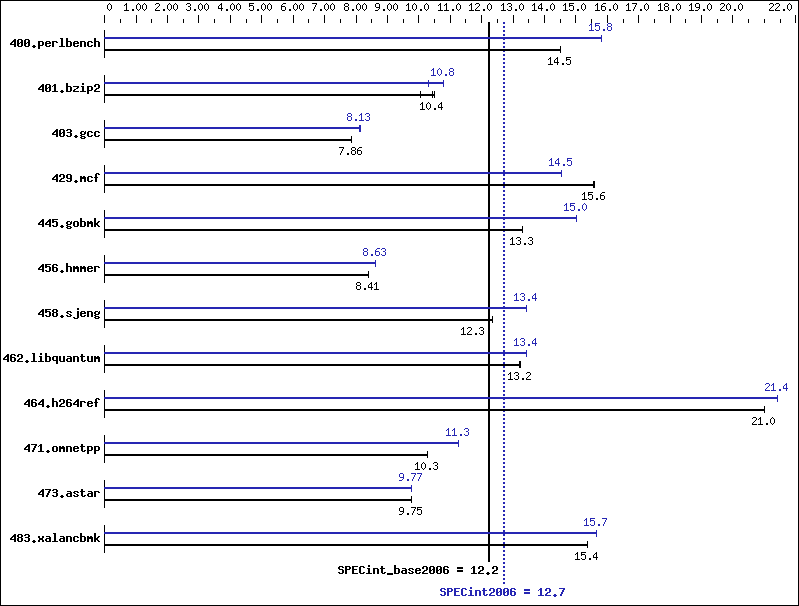

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 673 | 14.5 | 673 | 14.5 | 673 | 14.5 | 618 | 15.8 | 618 | 15.8 | 618 | 15.8 |
| 401.bzip2 | 925 | 10.4 | 961 | 10.0 | 919 | 10.5 | 894 | 10.8 | 935 | 10.3 | 894 | 10.8 |
| 403.gcc | 1023 | 7.87 | 1025 | 7.85 | 1024 | 7.86 | 991 | 8.13 | 990 | 8.13 | 991 | 8.12 |
| 429.mcf | 585 | 15.6 | 585 | 15.6 | 586 | 15.6 | 627 | 14.5 | 627 | 14.5 | 627 | 14.5 |
| 445.gobmk | 789 | 13.3 | 789 | 13.3 | 789 | 13.3 | 698 | 15.0 | 698 | 15.0 | 698 | 15.0 |
| 456.hmmer | 1110 | 8.41 | 1110 | 8.41 | 1110 | 8.41 | 1082 | 8.63 | 1081 | 8.63 | 1081 | 8.63 |
| 458.sjeng | 980 | 12.3 | 980 | 12.3 | 980 | 12.3 | 902 | 13.4 | 902 | 13.4 | 902 | 13.4 |
| 462.libquantum | 1567 | 13.2 | 1567 | 13.2 | 1567 | 13.2 | 1545 | 13.4 | 1545 | 13.4 | 1545 | 13.4 |
| 464.h264ref | 1053 | 21.0 | 1053 | 21.0 | 1054 | 21.0 | 1032 | 21.4 | 1032 | 21.4 | 1033 | 21.4 |
| 471.omnetpp | 609 | 10.3 | 609 | 10.3 | 609 | 10.3 | 554 | 11.3 | 554 | 11.3 | 554 | 11.3 |
| 473.astar | 720 | 9.75 | 720 | 9.75 | 720 | 9.75 | 719 | 9.77 | 719 | 9.77 | 719 | 9.77 |
| 483.xalancbmk | 449 | 15.4 | 449 | 15.4 | 449 | 15.4 | 440 | 15.7 | 441 | 15.6 | 441 | 15.7 |
General Notes
Other Configuration Notes /NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
