| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5130 |
| CPU Characteristics: | 2.0 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

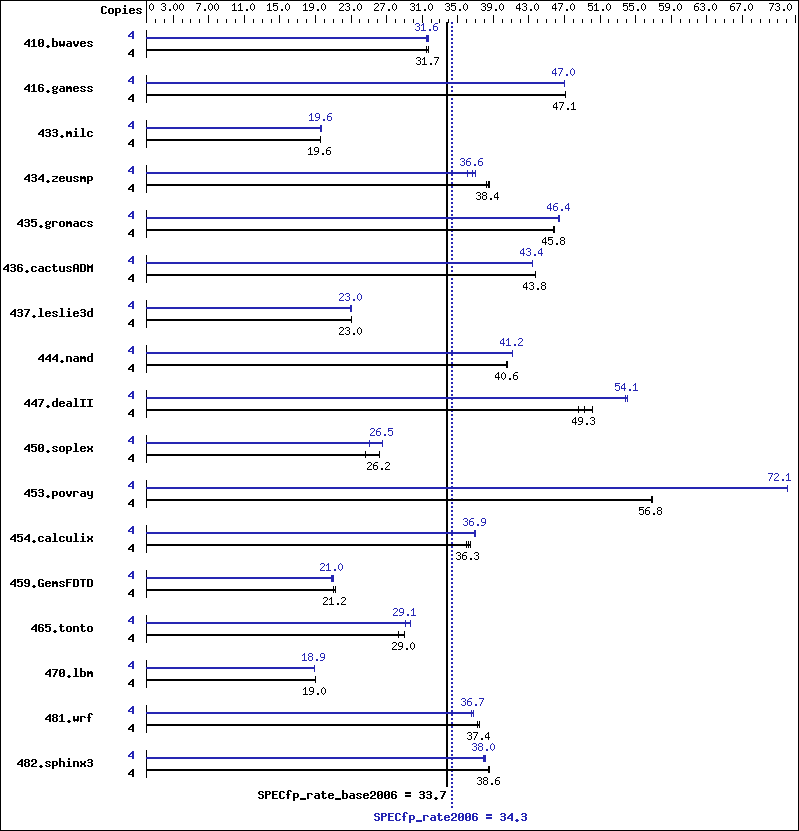

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1715 | 31.7 | 1714 | 31.7 | 1724 | 31.5 | 4 | 1717 | 31.7 | 1723 | 31.6 | 1727 | 31.5 |
| 416.gamess | 4 | 1663 | 47.1 | 1662 | 47.1 | 1662 | 47.1 | 4 | 1665 | 47.0 | 1666 | 47.0 | 1665 | 47.0 |
| 433.milc | 4 | 1878 | 19.6 | 1872 | 19.6 | 1873 | 19.6 | 4 | 1869 | 19.6 | 1871 | 19.6 | 1873 | 19.6 |
| 434.zeusmp | 4 | 953 | 38.2 | 948 | 38.4 | 945 | 38.5 | 4 | 1008 | 36.1 | 993 | 36.6 | 985 | 36.9 |
| 435.gromacs | 4 | 625 | 45.7 | 623 | 45.8 | 623 | 45.8 | 4 | 616 | 46.3 | 616 | 46.4 | 615 | 46.4 |
| 436.cactusADM | 4 | 1092 | 43.8 | 1092 | 43.8 | 1092 | 43.8 | 4 | 1101 | 43.4 | 1101 | 43.4 | 1101 | 43.4 |
| 437.leslie3d | 4 | 1631 | 23.1 | 1634 | 23.0 | 1634 | 23.0 | 4 | 1638 | 22.9 | 1630 | 23.1 | 1632 | 23.0 |
| 444.namd | 4 | 792 | 40.5 | 790 | 40.6 | 791 | 40.6 | 4 | 780 | 41.1 | 779 | 41.2 | 779 | 41.2 |
| 447.dealII | 4 | 929 | 49.3 | 913 | 50.1 | 943 | 48.6 | 4 | 847 | 54.1 | 846 | 54.1 | 850 | 53.8 |
| 450.soplex | 4 | 1352 | 24.7 | 1274 | 26.2 | 1273 | 26.2 | 4 | 1329 | 25.1 | 1259 | 26.5 | 1259 | 26.5 |
| 453.povray | 4 | 375 | 56.8 | 374 | 56.9 | 375 | 56.8 | 4 | 295 | 72.0 | 295 | 72.1 | 295 | 72.1 |
| 454.calculix | 4 | 910 | 36.3 | 916 | 36.0 | 905 | 36.5 | 4 | 892 | 37.0 | 893 | 36.9 | 894 | 36.9 |
| 459.GemsFDTD | 4 | 2016 | 21.1 | 2001 | 21.2 | 2002 | 21.2 | 4 | 2038 | 20.8 | 2021 | 21.0 | 2025 | 21.0 |
| 465.tonto | 4 | 1357 | 29.0 | 1389 | 28.3 | 1359 | 29.0 | 4 | 1327 | 29.7 | 1354 | 29.1 | 1350 | 29.1 |
| 470.lbm | 4 | 2896 | 19.0 | 2894 | 19.0 | 2894 | 19.0 | 4 | 2906 | 18.9 | 2906 | 18.9 | 2907 | 18.9 |
| 481.wrf | 4 | 1201 | 37.2 | 1194 | 37.4 | 1193 | 37.4 | 4 | 1222 | 36.6 | 1216 | 36.8 | 1216 | 36.7 |
| 482.sphinx3 | 4 | 2029 | 38.4 | 2022 | 38.6 | 2022 | 38.6 | 4 | 2055 | 37.9 | 2052 | 38.0 | 2045 | 38.1 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
