| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Dec-2006 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1.60 GHz, 4MB L2, 1066MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None |

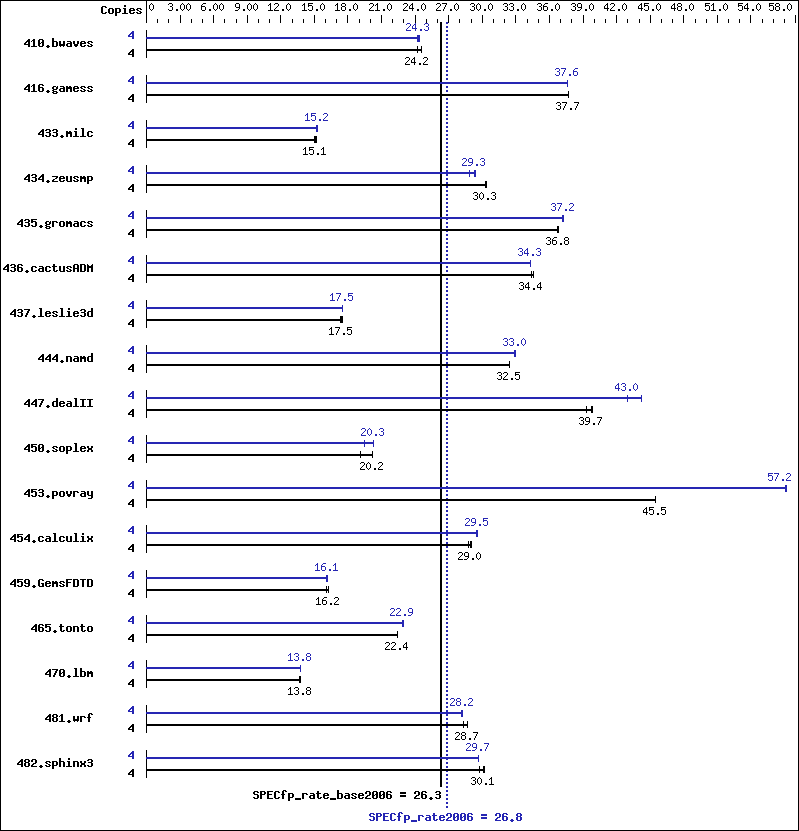

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 2242 | 24.2 | 2245 | 24.2 | 2216 | 24.5 | 4 | 2226 | 24.4 | 2249 | 24.2 | 2241 | 24.3 |
| 416.gamess | 4 | 2076 | 37.7 | 2076 | 37.7 | 2075 | 37.7 | 4 | 2081 | 37.6 | 2082 | 37.6 | 2082 | 37.6 |
| 433.milc | 4 | 2439 | 15.1 | 2445 | 15.0 | 2419 | 15.2 | 4 | 2409 | 15.2 | 2420 | 15.2 | 2405 | 15.3 |
| 434.zeusmp | 4 | 1202 | 30.3 | 1201 | 30.3 | 1198 | 30.4 | 4 | 1260 | 28.9 | 1240 | 29.4 | 1241 | 29.3 |
| 435.gromacs | 4 | 778 | 36.7 | 777 | 36.8 | 776 | 36.8 | 4 | 768 | 37.2 | 767 | 37.2 | 767 | 37.3 |
| 436.cactusADM | 4 | 1389 | 34.4 | 1389 | 34.4 | 1382 | 34.6 | 4 | 1393 | 34.3 | 1393 | 34.3 | 1393 | 34.3 |
| 437.leslie3d | 4 | 2174 | 17.3 | 2153 | 17.5 | 2145 | 17.5 | 4 | 2147 | 17.5 | 2148 | 17.5 | 2143 | 17.5 |
| 444.namd | 4 | 990 | 32.4 | 988 | 32.5 | 988 | 32.5 | 4 | 975 | 32.9 | 973 | 33.0 | 973 | 33.0 |
| 447.dealII | 4 | 1148 | 39.9 | 1163 | 39.3 | 1152 | 39.7 | 4 | 1035 | 44.2 | 1065 | 43.0 | 1065 | 43.0 |
| 450.soplex | 4 | 1742 | 19.2 | 1655 | 20.2 | 1652 | 20.2 | 4 | 1714 | 19.5 | 1646 | 20.3 | 1647 | 20.3 |
| 453.povray | 4 | 468 | 45.5 | 468 | 45.5 | 468 | 45.5 | 4 | 373 | 57.1 | 372 | 57.2 | 372 | 57.2 |
| 454.calculix | 4 | 1138 | 29.0 | 1140 | 29.0 | 1147 | 28.8 | 4 | 1119 | 29.5 | 1118 | 29.5 | 1117 | 29.5 |
| 459.GemsFDTD | 4 | 2640 | 16.1 | 2612 | 16.2 | 2612 | 16.2 | 4 | 2630 | 16.1 | 2635 | 16.1 | 2628 | 16.2 |
| 465.tonto | 4 | 1757 | 22.4 | 1757 | 22.4 | 1756 | 22.4 | 4 | 1713 | 23.0 | 1721 | 22.9 | 1719 | 22.9 |
| 470.lbm | 4 | 4033 | 13.6 | 3991 | 13.8 | 3991 | 13.8 | 4 | 3989 | 13.8 | 3988 | 13.8 | 3989 | 13.8 |
| 481.wrf | 4 | 1578 | 28.3 | 1559 | 28.7 | 1559 | 28.7 | 4 | 1590 | 28.1 | 1583 | 28.2 | 1582 | 28.2 |
| 482.sphinx3 | 4 | 2618 | 29.8 | 2586 | 30.2 | 2587 | 30.1 | 4 | 2625 | 29.7 | 2626 | 29.7 | 2627 | 29.7 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
