| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Dec-2006 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5110 |
| CPU Characteristics: | 1.60 GHz, 4MB L2, 1066MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None |

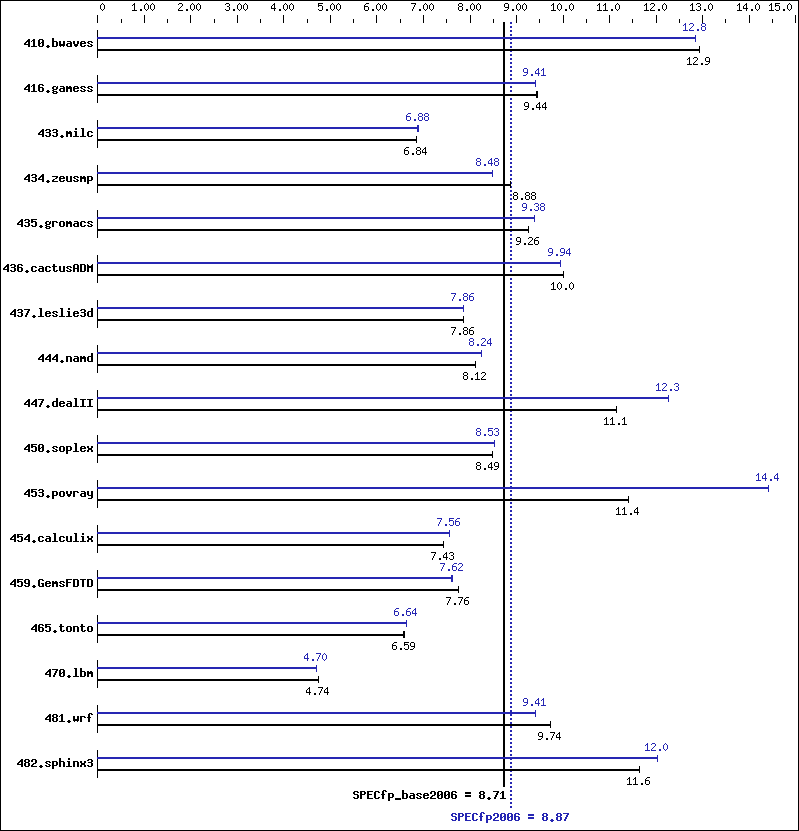

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 1051 | 12.9 | 1051 | 12.9 | 1051 | 12.9 | 1058 | 12.8 | 1057 | 12.9 | 1058 | 12.8 |
| 416.gamess | 2074 | 9.44 | 2074 | 9.44 | 2074 | 9.44 | 2081 | 9.41 | 2081 | 9.41 | 2081 | 9.41 |
| 433.milc | 1340 | 6.85 | 1341 | 6.84 | 1342 | 6.84 | 1334 | 6.88 | 1333 | 6.88 | 1335 | 6.88 |
| 434.zeusmp | 1025 | 8.88 | 1025 | 8.88 | 1025 | 8.88 | 1073 | 8.48 | 1073 | 8.48 | 1073 | 8.48 |
| 435.gromacs | 771 | 9.26 | 771 | 9.26 | 771 | 9.26 | 761 | 9.38 | 761 | 9.38 | 761 | 9.38 |
| 436.cactusADM | 1194 | 10.0 | 1194 | 10.0 | 1194 | 10.0 | 1202 | 9.94 | 1203 | 9.94 | 1202 | 9.94 |
| 437.leslie3d | 1196 | 7.86 | 1196 | 7.86 | 1197 | 7.86 | 1195 | 7.86 | 1195 | 7.86 | 1195 | 7.86 |
| 444.namd | 988 | 8.12 | 988 | 8.12 | 988 | 8.12 | 973 | 8.24 | 973 | 8.24 | 973 | 8.24 |
| 447.dealII | 1027 | 11.1 | 1027 | 11.1 | 1027 | 11.1 | 933 | 12.3 | 933 | 12.3 | 933 | 12.3 |
| 450.soplex | 982 | 8.49 | 982 | 8.49 | 982 | 8.49 | 977 | 8.53 | 977 | 8.53 | 977 | 8.53 |
| 453.povray | 467 | 11.4 | 466 | 11.4 | 466 | 11.4 | 369 | 14.4 | 369 | 14.4 | 369 | 14.4 |
| 454.calculix | 1110 | 7.43 | 1111 | 7.43 | 1111 | 7.43 | 1091 | 7.56 | 1091 | 7.56 | 1092 | 7.56 |
| 459.GemsFDTD | 1370 | 7.74 | 1368 | 7.76 | 1368 | 7.76 | 1394 | 7.61 | 1393 | 7.62 | 1393 | 7.62 |
| 465.tonto | 1494 | 6.59 | 1494 | 6.59 | 1495 | 6.58 | 1482 | 6.64 | 1482 | 6.64 | 1482 | 6.64 |
| 470.lbm | 2898 | 4.74 | 2898 | 4.74 | 2898 | 4.74 | 2926 | 4.70 | 2926 | 4.70 | 2926 | 4.70 |
| 481.wrf | 1147 | 9.74 | 1147 | 9.74 | 1147 | 9.74 | 1187 | 9.41 | 1187 | 9.41 | 1187 | 9.41 |
| 482.sphinx3 | 1675 | 11.6 | 1675 | 11.6 | 1675 | 11.6 | 1619 | 12.0 | 1619 | 12.0 | 1619 | 12.0 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
