SPEC® CINT2006 Result

Hewlett-Packard Company

HP Integrity rx8640
(1.6GHz/24MB Dual-Core Intel Itanium 2)

SPECint®_rate2006 = 355

SPECint_rate_base2006 = 336

CPU2006 license:	03	Test date:	Dec-2006
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2006
Tested by:	Hewlett-Packard Company	Software Availability:	Nov-2006

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9050
CPU Characteristics:	1.6GHz/24MB, 533MHz FSB
CPU MHz:	1600
FPU:	Integrated
CPU(s) enabled:	32 cores, 16 chips, 2 cores/chip
CPU(s) orderable:	1-16 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	12 MB I+D on chip per core
Other Cache:	None
Memory:	128 GB (64x2GB DIMMs)
Disk Subsystem:	73GB 15K RPM SCSI
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux AS release 4 (Update 4)
Compiler:	Intel C++ Compiler 9.1 for Linux (Build 20061105)
Auto Parallel:	No
File System:	ext3
System State:	Multi-user
Base Pointers:	64-bit
Peak Pointers:	64-bit
Other Software:	MicroQuill Smartheap 8.0

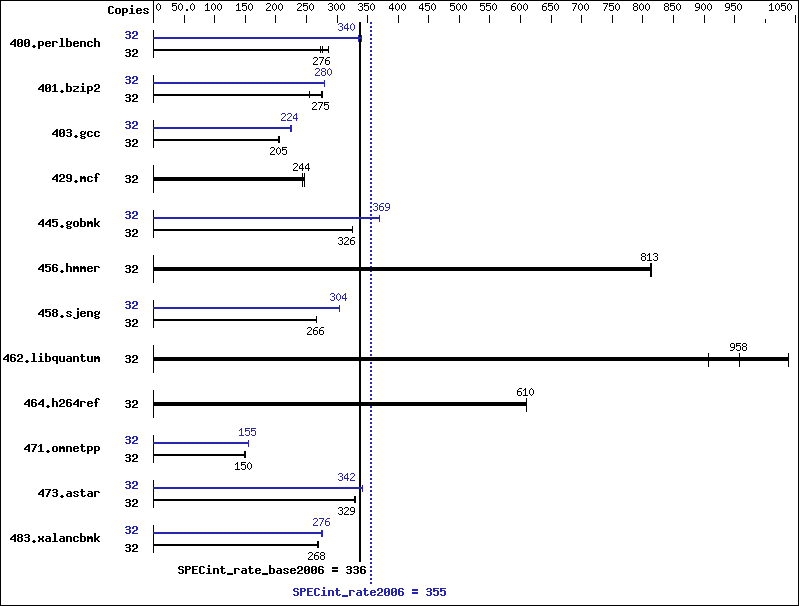

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	32	1142	274	1132	276	1090	287	32	917	341	934	335	918	340
401.bzip2	32	1120	276	1208	256	1121	275	32	1103	280	1103	280	1104	280
403.gcc	32	1256	205	1254	205	1249	206	32	1148	224	1145	225	1152	224
429.mcf	32	1200	243	1197	244	1183	247	32	1200	243	1197	244	1183	247
445.gobmk	32	1029	326	1030	326	1031	326	32	909	369	910	369	910	369
456.hmmer	32	367	813	367	813	367	814	32	367	813	367	813	367	814
458.sjeng	32	1455	266	1453	267	1454	266	32	1275	304	1276	304	1275	304
462.libquantum	32	638	1040	692	958	731	907	32	638	1040	692	958	731	907
464.h264ref	32	1161	610	1162	610	1162	609	32	1161	610	1162	610	1162	609
471.omnetpp	32	1338	150	1337	150	1337	150	32	1289	155	1291	155	1290	155
473.astar	32	681	330	683	329	684	328	32	657	342	657	342	658	341
483.xalancbmk	32	821	269	823	268	825	268	32	802	275	800	276	801	276

Operating System Notes

 stacksize set to unlimited prior to run

Platform Notes

 System was configured as a single partition with
 4 cells and 4 processors (8 cores) per cell.
 Memory was configured as 100% cell local.

 The following config file entry was used to bind
 processes to cores using the Linux "numactl" utility:
 submit = let "MYNUM=$SPECCOPYNUM" ; let "NODE=\$MYNUM/8" ; numactl --cpubind \$NODE --membind \$NODE $command

Base Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_IA64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
471.omnetpp:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-fast -IPF_fp_relaxed -ansi-alias

C++ benchmarks:

-fast -IPF_fp_relaxed -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a

Peak Compiler Invocation

C benchmarks:

icc

C++ benchmarks:

icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:	-prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias
401.bzip2:	Same as 400.perlbench
403.gcc:	Same as 400.perlbench
429.mcf:	basepeak = yes
445.gobmk:	Same as 400.perlbench
456.hmmer:	basepeak = yes
458.sjeng:	Same as 400.perlbench
462.libquantum:	basepeak = yes
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	-prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:	-prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -inline-factor=150 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:	Same as 471.omnetpp

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.20090715.xml.
