SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx7640
(1.6GHz/18MB Dual-Core Intel Itanium 2)

CPU2006 license: 03 Test date: Dec-2006
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2006
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

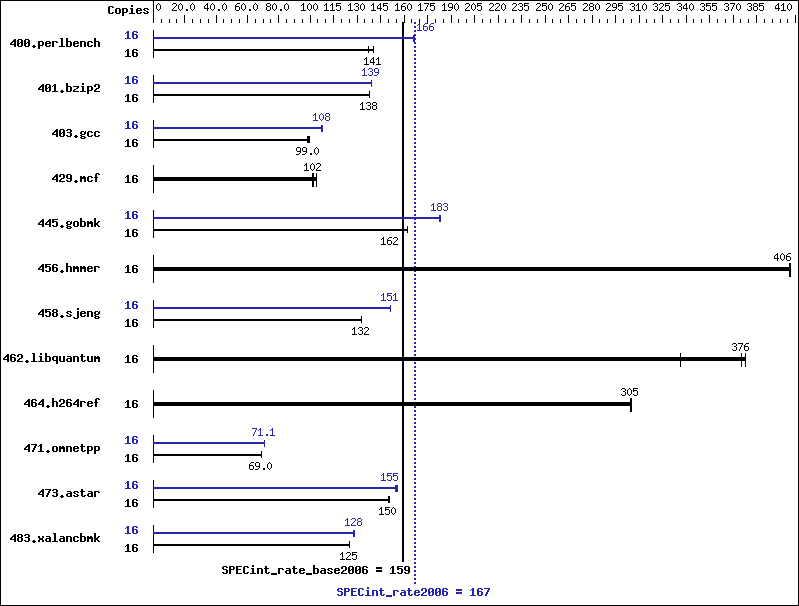

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9040
CPU Characteristics: 1.6GHz/18MB, 533MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 16 cores, 8 chips, 2 cores/chip
CPU(s) orderable: 1-8 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 64 GB (32x2GB DIMMs)
Disk Subsystem: 73GB 15K RPM SCSI
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux AS release 4 (Update 4)
Compiler: Intel C++ Compiler 9.1 for Linux
(Build 20061105)
Auto Parallel: No
File System: ext3
System State: Multi-user
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: MicroQuill Smartheap 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 1139 137   1112 141   1111 141   16 939 166   941 166   941 166
401.bzip2 16 1121 138   1122 138   1120 138   16 1109 139   1108 139   1110 139
403.gcc 16 1309 98.4 1301 99.0 1293 99.6 16 1198 107   1196 108   1197 108
429.mcf 16 1427 102   1405 104   1435 102   16 1427 102   1405 104   1435 102
445.gobmk 16 1035 162   1037 162   1035 162   16 916 183   921 182   916 183
456.hmmer 16 368 406   367 406   367 406   16 368 406   367 406   367 406
458.sjeng 16 1461 132   1461 132   1461 133   16 1281 151   1281 151   1281 151
462.libquantum 16 985 337   877 378   883 376   16 985 337   877 378   883 376
464.h264ref 16 1162 305   1161 305   1162 305   16 1162 305   1161 305   1162 305
471.omnetpp 16 1451 68.9 1450 69.0 1450 69.0 16 1407 71.1 1406 71.1 1407 71.1
473.astar 16 749 150   744 151   748 150   16 724 155   726 155   721 156
483.xalancbmk 16 881 125   881 125   884 125   16 864 128   862 128   862 128

Operating System Notes

 stacksize set to unlimited prior to run

Platform Notes

 System was configured as a single partition with
 2 cells and 4 processors (8 cores) per cell.
 Memory was configured as 100% cell local.

 The following config file entry was used to bind
 processes to cores using the Linux "numactl" utility:
 submit = let "MYNUM=$SPECCOPYNUM" ; let "NODE=\$MYNUM/8" ; numactl --cpubind \$NODE --membind \$NODE $command

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_IA64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias

C++ benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  basepeak = yes
458.sjeng:  Same as 400.perlbench
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -inline-factor=150   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:  Same as 471.omnetpp

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.20090715.xml.
