SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Ultra 40 M2

CPU2006 license: 6 Test date: Nov-2006
Test sponsor: Sun Microsystems Hardware Availability: Nov-2006
Tested by: Sun Microsystems Software Availability: Jul-2006

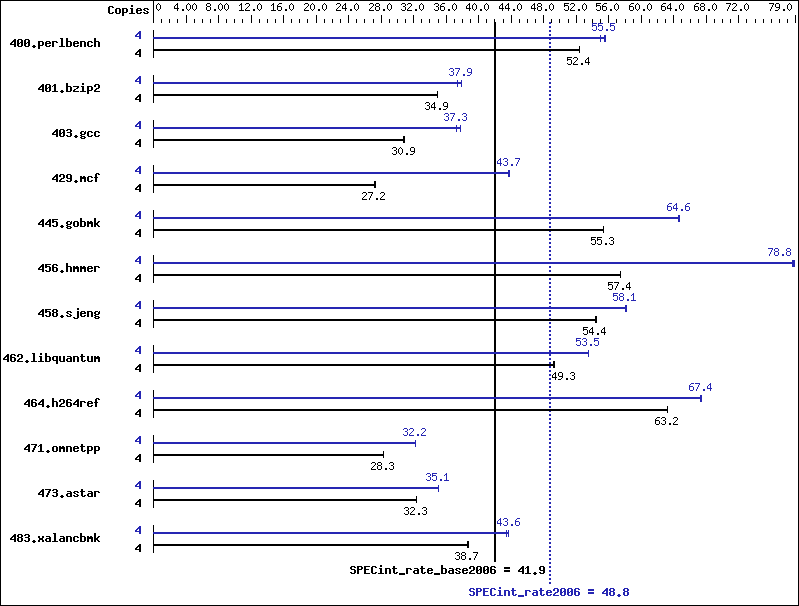

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2220 SE
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB, DDR2-667 CL5 ECC REG, Dual Rank)
Disk Subsystem: SATA, 160 GB, 7200 RPM
Other Hardware: None
Software
Operating System: Solaris 10 6/06
Compiler: Sun Studio 11 with Patches
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 746 52.4 746 52.4 746 52.4 4 703 55.6 711 54.9 704 55.5
401.bzip2 4 1104 35.0 1106 34.9 1106 34.9 4 1032 37.4 1019 37.9 1018 37.9
403.gcc 4 1041 30.9 1048 30.7 1043 30.9 4 854 37.7 863 37.3 864 37.3
429.mcf 4 1340 27.2 1337 27.3 1344 27.2 4 832 43.8 835 43.7 834 43.7
445.gobmk 4 758 55.3 758 55.3 758 55.4 4 649 64.6 649 64.7 649 64.6
456.hmmer 4 649 57.5 650 57.4 650 57.4 4 474 78.8 475 78.6 473 78.8
458.sjeng 4 889 54.4 890 54.4 888 54.5 4 832 58.2 833 58.1 833 58.1
462.libquantum 4 1680 49.3 1681 49.3 1685 49.2 4 1550 53.5 1550 53.5 1549 53.5
464.h264ref 4 1401 63.2 1400 63.2 1400 63.2 4 1316 67.3 1313 67.4 1312 67.4
471.omnetpp 4 884 28.3 883 28.3 885 28.2 4 775 32.3 776 32.2 776 32.2
473.astar 4 868 32.3 869 32.3 869 32.3 4 801 35.1 800 35.1 801 35.1
483.xalancbmk 4 714 38.7 713 38.7 714 38.7 4 635 43.5 632 43.6 632 43.7

Operating System Notes


 Processes were bound to cores using "submit" and "pbind".


 ulimit -s 131072  (shell): increases stack


 The following patches were applied to Sun Studio 11 compiler:
 120759-07 : x86/x64
 121016-03 : x86 C
 121020-03 : x86 F90
 121018-03 : x86 C++

Platform Notes


 Default BIOS settings was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xarch=amd64a

C++ benchmarks:

 -fast   -xipo=2   -xarch=amd64a   -library=stlport4

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fast   -xarch=amd64a   -xvector=simd   -lbsdmalloc   -Wu,-fsimple=3
401.bzip2:  ONESTEP   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=2m   -xipo=2   -xalias_level=strong   -xarch=sse2a   -M /usr/lib/ld/map.bssalign   -Wu,-fsimple=3
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xbuiltin=%none   -xpagesize=2m   -lmvec
429.mcf:  -fast   -xpagesize=2m   -xalias_level=std   -M /usr/lib/ld/map.bssalign   -lmvec
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xrestrict   -xalias_level=strong   -xdepend   -xpagesize=2m   -lmvec
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -Wd,-iropt-prof
458.sjeng:  -fast   -xarch=amd64a   -xipo=2   -xprefetch=auto   -xprefetch_level=3   -xpagesize=2m   -lmvec
462.libquantum:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -xunroll=8
464.h264ref:  -fast   -xarch=amd64a   -xipo=2   -xvector   -xunroll=8   -xalias_level=strong   -xrestrict   -xpagesize=2m   -lmvec

C++ benchmarks:

471.omnetpp:  -fast   -xipo=2   -xprefetch_level=3   -xpagesize=2m   -xarch=sse2a   -Qoption ube -fsimple=3   -library=stlport4
473.astar:  -fast   -xrestrict   -xarch=amd64a   -xipo=2   -xprefetch_level=3   -xpagesize=2m   -library=stlport4
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xarch=sse2a   -xpagesize=2m   -library=stlport4

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.01.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 10:08:40 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 29 November 2006.
