SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx4640
(1.6GHz/24MB Dual-Core Intel Itanium 2)

SPECint®2006 = 12.5

CPU2006 license: 03 Test date: Oct-2006
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2006
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

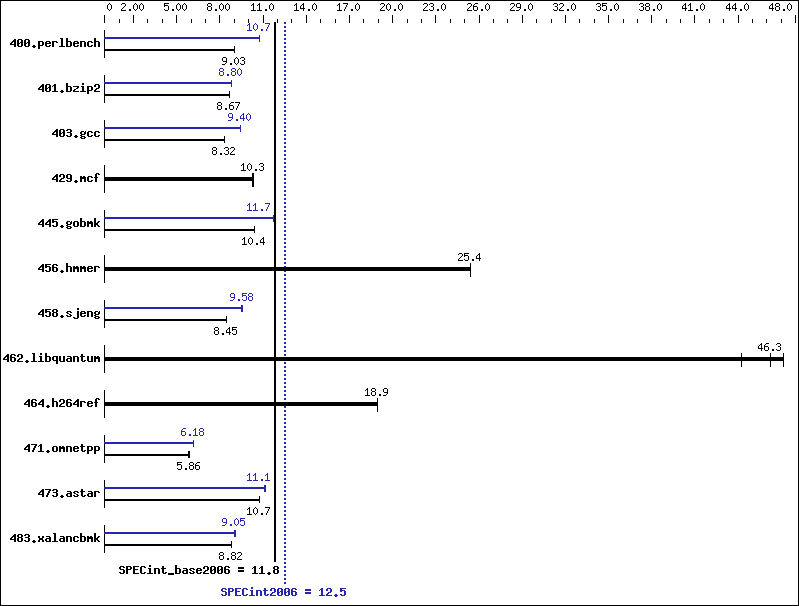

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9050
CPU Characteristics: 1.6GHz/24MB, 400MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1-4 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 12 MB I+D on chip per core
Other Cache: None
Memory: 32 GB (16x2GB DIMMs)
Disk Subsystem: 36GB 15K RPM SCSI
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux AS release 4 (Update 4)
Compiler: Intel C++ Compiler for Itanium version 9.1
(Build 20060818)
Auto Parallel: No
File System: ext3
System State: Multi-user
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: MicroQuill Smartheap 8.0

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1081 9.04 1085 9.01 1081 9.03 910 10.7  909 10.7  910 10.7
401.bzip2 1113 8.67 1113 8.67 1113 8.67 1097 8.80 1097 8.80 1097 8.80
403.gcc 967 8.32 967 8.32 970 8.30 856 9.40 856 9.40 856 9.40
429.mcf 882 10.3  888 10.3  883 10.3  882 10.3  888 10.3  883 10.3
445.gobmk 1010 10.4  1010 10.4  1011 10.4  897 11.7  897 11.7  897 11.7
456.hmmer 367 25.4  368 25.4  367 25.4  367 25.4  368 25.4  367 25.4
458.sjeng 1431 8.45 1431 8.45 1431 8.45 1270 9.53 1263 9.58 1263 9.58
462.libquantum 448 46.3  440 47.1  469 44.2  448 46.3  440 47.1  469 44.2
464.h264ref 1169 18.9  1169 18.9  1169 18.9  1169 18.9  1169 18.9  1169 18.9
471.omnetpp 1066 5.86 1067 5.86 1068 5.85 1012 6.18 1012 6.18 1014 6.17
473.astar 653 10.7  652 10.8  653 10.7  634 11.1  630 11.1  631 11.1
483.xalancbmk 782 8.82 783 8.81 782 8.82 762 9.05 764 9.04 763 9.05

Operating System Notes

 stacksize set to unlimited prior to run

 system was booted uniprocessor by setting "maxcpus=0"
 kernel parameter in elilo.conf

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_IA64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias

C++ benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  basepeak = yes
458.sjeng:  Same as 400.perlbench
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -inline-factor=150   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:  Same as 471.omnetpp

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.xml.
