| CPU2006 license: | 03 | Test date: | Nov-2006 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Nov-2006 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Dual-Core Intel Itanium 2 9040 |
| CPU Characteristics: | 1.6GHz/18MB, 533MHz FSB |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1-2 chips |
| Primary Cache: | 16 KB I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I + 256 KB D on chip per core |
| L3 Cache: | 9 MB I+D on chip per core |
| Other Cache: | None |
| Memory: | 16 GB (8x2GB DIMMs, AD124A 8-DIMM memory carrier) |
| Disk Subsystem: | 2x73GB 10K RPM SAS (mirrored) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux AS release 4 (Update 4) |
| Compiler: | Intel C++ Compiler for Itanium version 9.1 (Build 20060818) |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | MicroQuill Smartheap 8.0 |

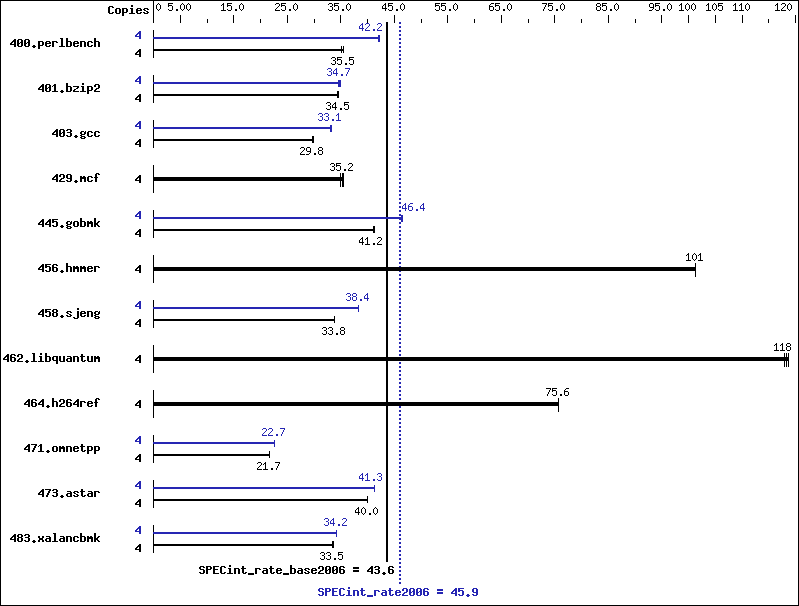

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 1115 | 35.0 | 1101 | 35.5 | 1100 | 35.5 | 4 | 927 | 42.2 | 928 | 42.1 | 926 | 42.2 |
| 401.bzip2 | 4 | 1120 | 34.5 | 1117 | 34.6 | 1118 | 34.5 | 4 | 1102 | 35.0 | 1112 | 34.7 | 1115 | 34.6 |
| 403.gcc | 4 | 1082 | 29.8 | 1082 | 29.8 | 1080 | 29.8 | 4 | 970 | 33.2 | 973 | 33.1 | 974 | 33.1 |
| 429.mcf | 4 | 1028 | 35.5 | 1042 | 35.0 | 1035 | 35.2 | 4 | 1028 | 35.5 | 1042 | 35.0 | 1035 | 35.2 |
| 445.gobmk | 4 | 1019 | 41.2 | 1017 | 41.3 | 1018 | 41.2 | 4 | 905 | 46.4 | 904 | 46.4 | 904 | 46.4 |
| 456.hmmer | 4 | 368 | 101 | 368 | 101 | 368 | 101 | 4 | 368 | 101 | 368 | 101 | 368 | 101 |
| 458.sjeng | 4 | 1432 | 33.8 | 1433 | 33.8 | 1433 | 33.8 | 4 | 1262 | 38.4 | 1262 | 38.4 | 1261 | 38.4 |
| 462.libquantum | 4 | 703 | 118 | 698 | 119 | 701 | 118 | 4 | 703 | 118 | 698 | 119 | 701 | 118 |
| 464.h264ref | 4 | 1170 | 75.7 | 1170 | 75.6 | 1171 | 75.6 | 4 | 1170 | 75.7 | 1170 | 75.6 | 1171 | 75.6 |
| 471.omnetpp | 4 | 1152 | 21.7 | 1153 | 21.7 | 1152 | 21.7 | 4 | 1103 | 22.7 | 1102 | 22.7 | 1102 | 22.7 |
| 473.astar | 4 | 702 | 40.0 | 704 | 39.9 | 702 | 40.0 | 4 | 681 | 41.3 | 681 | 41.3 | 679 | 41.4 |
| 483.xalancbmk | 4 | 823 | 33.5 | 823 | 33.5 | 823 | 33.5 | 4 | 807 | 34.2 | 807 | 34.2 | 807 | 34.2 |
Operating System Notes
stacksize set to unlimited prior to run
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_IA64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -IPF_fp_relaxed -ansi-alias |
C++ benchmarks:
| -fast -IPF_fp_relaxed -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | basepeak = yes |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a |
| 473.astar: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -inline-factor=150 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a |
| 483.xalancbmk: | Same as 471.omnetpp |
