SPEC® CINT2006 Result

Hewlett-Packard Company

HP Integrity rx3600
(1.6GHz/18MB Dual-Core Intel Itanium 2)

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9040
CPU Characteristics:	1.6GHz/18MB, 533MHz FSB
CPU MHz:	1600
FPU:	Integrated
CPU(s) enabled:	1 core, 1 chip, 2 cores/chip
CPU(s) orderable:	1-2 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	9 MB I+D on chip per core
Other Cache:	None
Memory:	16 GB (8x2GB DIMMs, AD124A 8-DIMM memory carrier)
Disk Subsystem:	2x73GB 10K RPM SAS (mirrored)
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux AS release 4 (Update 4)
Compiler:	Intel C++ Compiler for Itanium version 9.1 (Build 20060818)
Auto Parallel:	No
File System:	ext3
System State:	Multi-user
Base Pointers:	64-bit
Peak Pointers:	64-bit
Other Software:	MicroQuill Smartheap 8.0

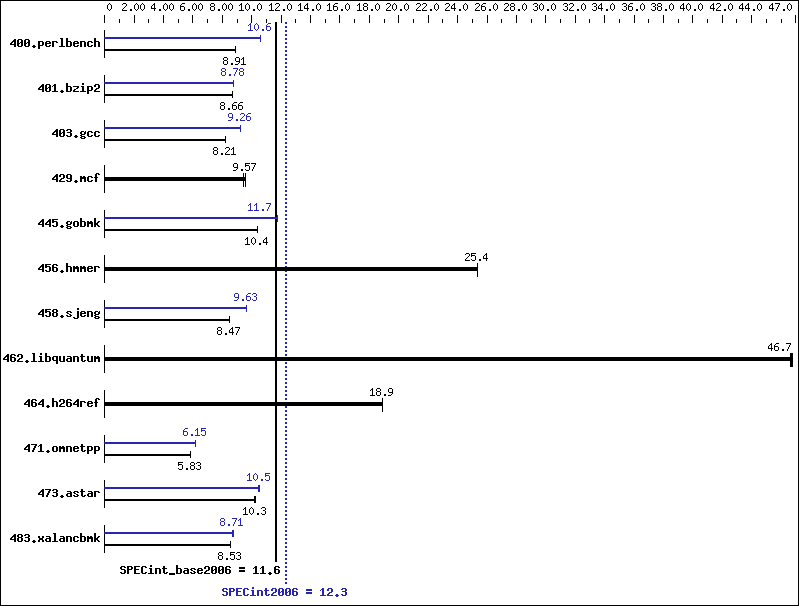

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	1096	8.91	1095	8.92	1098	8.90	923	10.6	924	10.6	923	10.6
401.bzip2	1114	8.66	1114	8.66	1114	8.67	1098	8.79	1100	8.77	1099	8.78
403.gcc	981	8.21	981	8.21	981	8.20	869	9.26	870	9.26	869	9.26
429.mcf	953	9.57	950	9.60	964	9.46	953	9.57	950	9.60	964	9.46
445.gobmk	1009	10.4	1009	10.4	1009	10.4	894	11.7	895	11.7	895	11.7
456.hmmer	368	25.4	368	25.4	368	25.3	368	25.4	368	25.4	368	25.3
458.sjeng	1429	8.47	1430	8.46	1429	8.47	1256	9.63	1256	9.63	1257	9.63
462.libquantum	444	46.7	443	46.7	443	46.8	444	46.7	443	46.7	443	46.8
464.h264ref	1171	18.9	1171	18.9	1171	18.9	1171	18.9	1171	18.9	1171	18.9
471.omnetpp	1073	5.83	1072	5.83	1074	5.82	1016	6.15	1015	6.15	1016	6.15
473.astar	684	10.3	688	10.2	685	10.3	672	10.4	666	10.5	666	10.5
483.xalancbmk	808	8.54	810	8.52	809	8.53	793	8.70	791	8.73	792	8.71

 stacksize set to unlimited prior to run

 system was booted uniprocessor by setting "maxcpus=0"
 kernel parameter in elilo.conf

icc

icpc

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_IA64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
471.omnetpp:	-DSPEC_CPU_LP64
473.astar:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX

icc

icpc

Same as Base Portability Flags

400.perlbench:	-prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias
401.bzip2:	Same as 400.perlbench
403.gcc:	Same as 400.perlbench
429.mcf:	basepeak = yes
445.gobmk:	Same as 400.perlbench
456.hmmer:	basepeak = yes
458.sjeng:	Same as 400.perlbench
462.libquantum:	basepeak = yes
464.h264ref:	basepeak = yes

471.omnetpp:	-prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:	-prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias -inline-factor=150 -Wl,-z,muldefs /opt/SmartHeap_8/lib/libsmartheapC64.a /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:	Same as 471.omnetpp

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.xml.
