CPU2006 license: | 94 | Test date: | Sep-2006 |
---|---|---|---|
Test sponsor: | The Portland Group | Hardware Availability: | Jul-2006 |
Tested by: | The Portland Group | Software Availability: | Sep-2006 |
Hardware | |
---|---|
CPU Name: | Intel Xeon 5160 |
CPU Characteristics: | 1333 MHz system bus |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
CPU(s) orderable: | 1 to 2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 4 MB I+D on chip per chip |
L3 Cache: | None |
Other Cache: | None |
Memory: | 4 GB (4x 1GB, Samsung M395T2953CZ4 DDR2 FBD 667 CL5-5-5) |
Disk Subsystem: | Hitachi Deskstar SATA, 164 GB, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SLES 10 (Kernel 2.6.16.21-0.8-smp) |
Compiler: | The Portland Group (PGI) PGI pgf90 6.2-3 Fortran Compiler PGI pgcc 6.2-3 C Compiler PGI pgCC 6.2-3 C++ Compiler |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Multi-user |
Base Pointers: | 64-bit |
Peak Pointers: | 64-bit |
Other Software: | None |

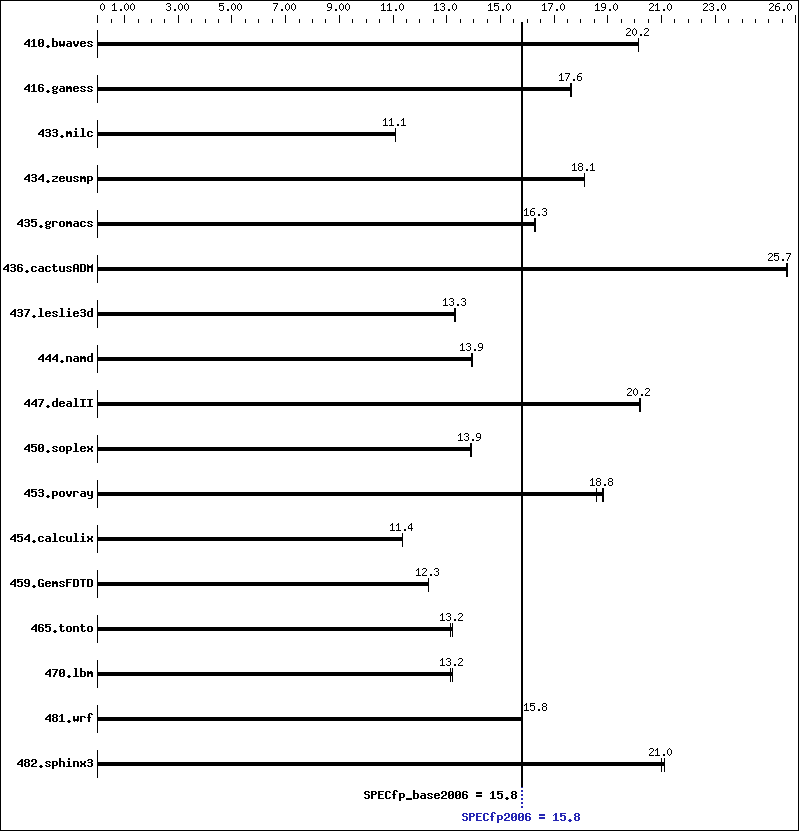

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 674 | 20.2 | 674 | 20.2 | 675 | 20.1 | 674 | 20.2 | 674 | 20.2 | 675 | 20.1 |
416.gamess | 1110 | 17.6 | 1112 | 17.6 | 1110 | 17.6 | 1110 | 17.6 | 1112 | 17.6 | 1110 | 17.6 |
433.milc | 828 | 11.1 | 828 | 11.1 | 828 | 11.1 | 828 | 11.1 | 828 | 11.1 | 828 | 11.1 |
434.zeusmp | 502 | 18.1 | 502 | 18.1 | 502 | 18.1 | 502 | 18.1 | 502 | 18.1 | 502 | 18.1 |
435.gromacs | 438 | 16.3 | 438 | 16.3 | 439 | 16.3 | 438 | 16.3 | 438 | 16.3 | 439 | 16.3 |
436.cactusADM | 465 | 25.7 | 465 | 25.7 | 466 | 25.6 | 465 | 25.7 | 465 | 25.7 | 466 | 25.6 |
437.leslie3d | 707 | 13.3 | 706 | 13.3 | 705 | 13.3 | 707 | 13.3 | 706 | 13.3 | 705 | 13.3 |
444.namd | 575 | 13.9 | 576 | 13.9 | 575 | 13.9 | 575 | 13.9 | 576 | 13.9 | 575 | 13.9 |
447.dealII | 567 | 20.2 | 566 | 20.2 | 566 | 20.2 | 567 | 20.2 | 566 | 20.2 | 566 | 20.2 |
450.soplex | 600 | 13.9 | 600 | 13.9 | 600 | 13.9 | 600 | 13.9 | 600 | 13.9 | 600 | 13.9 |
453.povray | 287 | 18.6 | 283 | 18.8 | 283 | 18.8 | 287 | 18.6 | 283 | 18.8 | 283 | 18.8 |
454.calculix | 726 | 11.4 | 726 | 11.4 | 726 | 11.4 | 726 | 11.4 | 726 | 11.4 | 726 | 11.4 |
459.GemsFDTD | 861 | 12.3 | 861 | 12.3 | 862 | 12.3 | 861 | 12.3 | 861 | 12.3 | 862 | 12.3 |
465.tonto | 748 | 13.2 | 745 | 13.2 | 745 | 13.2 | 748 | 13.2 | 745 | 13.2 | 745 | 13.2 |
470.lbm | 1039 | 13.2 | 1041 | 13.2 | 1045 | 13.2 | 1039 | 13.2 | 1041 | 13.2 | 1045 | 13.2 |
481.wrf | 707 | 15.8 | 707 | 15.8 | 708 | 15.8 | 707 | 15.8 | 707 | 15.8 | 708 | 15.8 |
482.sphinx3 | 924 | 21.1 | 927 | 21.0 | 928 | 21.0 | 924 | 21.1 | 927 | 21.0 | 928 | 21.0 |
Environment stack size set to 'unlimited' For parallel runs (those compiled with "-Mconcur") the following environment variables were set: NCPUS = 2 MP_BIND = yes MP_BLIST = 1,0 NCPUS=n sets the number of threads to use to "n". MP_BIND=yes instructs the runtime to bind a thread to a core. MP_BLIST defines the thread-core relationship. The 4 1GB memory modules populated the first DIMM socket of each channel (0-3).
pgcc |
pgCC |
pgf90 |
pgcc pgf90 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -Mnomain |
436.cactusADM: | -DSPEC_CPU_LP64 -Mnomain |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -Mnomain |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-fastsse -Mconcur -Mipa=fast -Mipa=inline -Mfprelaxed=rsqrt -Msmartalloc -Msignextend -tp core2-64 |
-fastsse -Mipa=fast -Mipa=inline -Mfprelaxed=rsqrt -Msmartalloc -tp core2-64 |
-fastsse -Mconcur -Mipa=fast -Mipa=inline -Mfprelaxed=rsqrt -Msmartalloc -tp core2-64 |
-fastsse -Mconcur -Mipa=fast -Mipa=inline -Mfprelaxed=rsqrt -Msmartalloc -Msignextend -tp core2-64 |
-w |
-w |
-w |
-w |
pgcc |
pgCC |
pgf90 |
pgcc pgf90 |
Same as Base Portability Flags
433.milc: | basepeak = yes |
470.lbm: | basepeak = yes |
482.sphinx3: | basepeak = yes |
444.namd: | basepeak = yes |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | basepeak = yes |
410.bwaves: | basepeak = yes |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | basepeak = yes |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
