SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity Superdome (1.6GHz/24MB Dual-Core
Intel Itanium 2)

CPU2006 license: 03 Test date: Sep-2006
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2006
Tested by: Hewlett-Packard Company Software Availability: Sep-2006

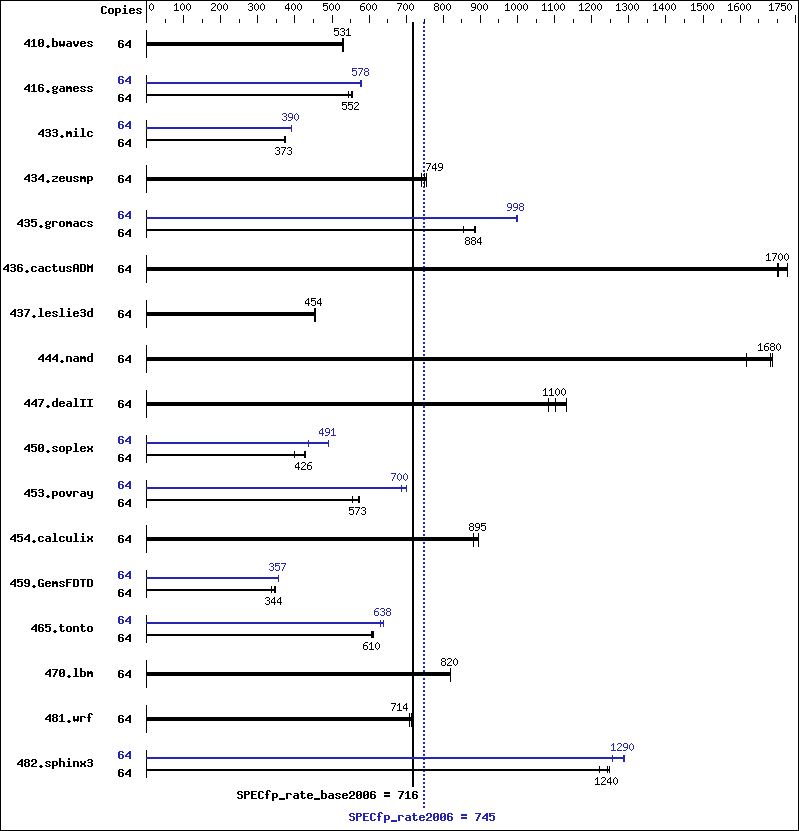

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9050
CPU Characteristics: 1.6GHz/24MB, 533MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 64 cores, 32 chips, 2 cores/chip
CPU(s) orderable: 1-64 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 12 MB I+D on chip per core
Other Cache: None
Memory: 256 GB (256x1GB DIMMs)
Disk Subsystem: 3x73GB 15K RPM SCSI (striped)
Other Hardware: None
Software
Operating System: HPUX11i-TCOE B.11.23.0609
Compiler: HP C/aC++ Developer's Bundle C.11.23.12
HP Fortran90 Compiler 11.23.32
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 1646 528 1636 532 1638 531 64 1646 528 1636 532 1638 531
416.gamess 64 2299 545 2270 552 2261 554 64 2167 578 2161 580 2172 577
433.milc 64 1578 372 1573 374 1577 373 64 1506 390 1507 390 1505 390
434.zeusmp 64 773 754 778 749 785 742 64 773 754 778 749 785 742
435.gromacs 64 534 856 516 886 517 884 64 458 997 458 998 456 1000
436.cactusADM 64 450 1700 449 1700 442 1730 64 450 1700 449 1700 442 1730
437.leslie3d 64 1320 456 1329 453 1325 454 64 1320 456 1329 453 1325 454
444.namd 64 317 1620 304 1690 305 1680 64 317 1620 304 1690 305 1680
447.dealII 64 665 1100 646 1130 676 1080 64 665 1100 646 1130 676 1080
450.soplex 64 1340 398 1249 427 1252 426 64 1220 438 1087 491 1086 492
453.povray 64 612 556 594 573 594 573 64 495 687 487 700 486 700
454.calculix 64 600 881 589 896 590 895 64 600 881 589 896 590 895
459.GemsFDTD 64 1975 344 2010 338 1960 347 64 1904 357 1902 357 1903 357
465.tonto 64 1040 606 1030 611 1032 610 64 996 632 986 639 987 638
470.lbm 64 1074 819 1073 820 1073 820 64 1074 819 1073 820 1073 820
481.wrf 64 1001 714 992 720 1009 709 64 1001 714 992 720 1009 709
482.sphinx3 64 1022 1220 1003 1240 1000 1250 64 992 1260 968 1290 970 1290

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

 The system was configured as a single partition with 8 cells and
 4 processors (8 cores) per cell.  Memory was configured as 50% local
 and 50% interleaved.

 The following config file entry was used to bind
 processes to cells using the HP-UX "mpsched" utility:
 submit = let "MYNUM=$SPECCOPYNUM" ; let "LDOM=\$MYNUM/8" ; mpsched -l \$LDOM $command

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Base Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
454.calculix:  -DSPEC_CPU_NOZMODIFIER
481.wrf:  -DNOUNDERSCORE   +noppu

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Fortran benchmarks:

 +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

Benchmarks using both Fortran and C:

 +Ofaster(-hp_cc)   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Ofaster(-hp_f90)   -Wl,-N

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Fortran benchmarks:

 /opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

 /opt/ansic/bin/cc -Ae   /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:  -DSPEC_CPU_NEED_INVHYP
454.calculix:  -DSPEC_CPU_NOZMODIFIER
481.wrf:  -DNOUNDERSCORE   +noppu

Peak Optimization Flags

C benchmarks:

433.milc:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
470.lbm:  basepeak = yes
482.sphinx3:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N
453.povray:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
465.tonto:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster(-hp_cc)   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   +Ofaster(-hp_f90)
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.xml.
