SPEC® CFP2006 Result

Hewlett-Packard Company

HP Integrity Superdome (1.6GHz/24MB Dual-Core
Intel Itanium 2)

SPECfp®_rate2006 = 1480

SPECfp_rate_base2006 = 1420

CPU2006 license:	03	Test date:	Aug-2006
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2006
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2006

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9050
CPU Characteristics:	1.6GHz/24MB, 533MHz FSB
CPU MHz:	1600
FPU:	Integrated
CPU(s) enabled:	128 cores, 64 chips, 2 cores/chip
CPU(s) orderable:	1-64 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	12 MB I+D on chip per core
Other Cache:	None
Memory:	512 GB (512x1GB DIMMs)
Disk Subsystem:	3x73GB 15K RPM SCSI (striped)
Other Hardware:	None

Software
Operating System:	HPUX11i-TCOE B.11.23.0609
Compiler:	HP C/aC++ Developer's Bundle C.11.23.12 HP Fortran90 Compiler B.11.23.32
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	None

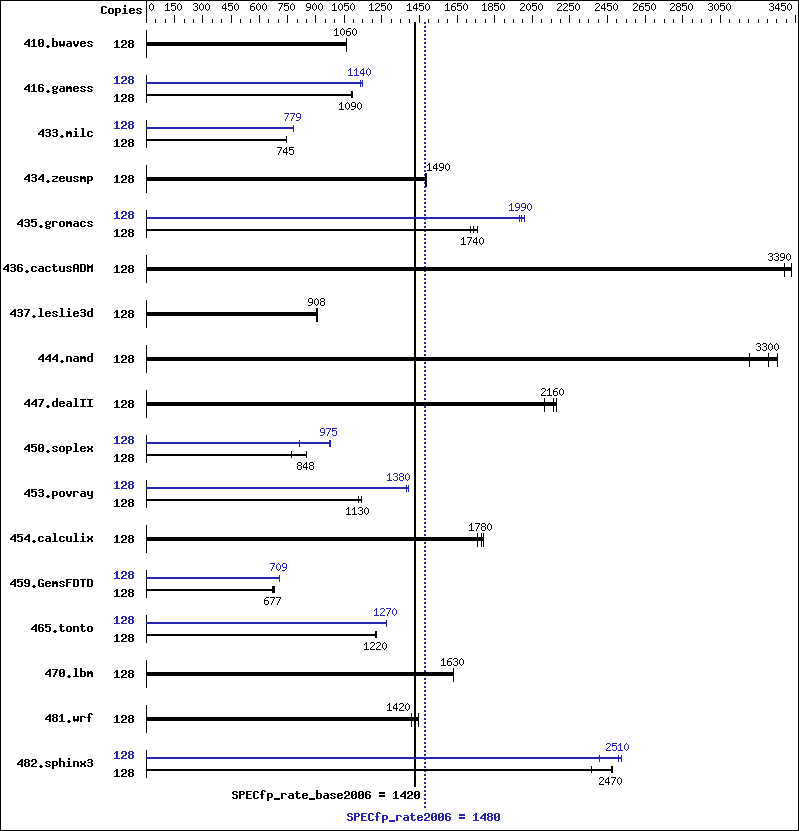

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	128	1640	1060	1636	1060	1635	1060	128	1640	1060	1636	1060	1635	1060
416.gamess	128	2304	1090	2302	1090	2291	1090	128	2204	1140	2183	1150	2204	1140
433.milc	128	1579	744	1578	745	1577	745	128	1508	779	1507	780	1508	779
434.zeusmp	128	785	1480	783	1490	784	1490	128	785	1480	783	1490	784	1490
435.gromacs	128	530	1720	526	1740	520	1760	128	461	1980	459	1990	455	2010
436.cactusADM	128	451	3390	451	3390	446	3430	128	451	3390	451	3390	446	3430
437.leslie3d	128	1325	908	1322	910	1329	905	128	1325	908	1322	910	1329	905
444.namd	128	320	3200	311	3300	306	3350	128	320	3200	311	3300	306	3350
447.dealII	128	672	2180	692	2120	677	2160	128	672	2180	692	2120	677	2160
450.soplex	128	1385	771	1258	848	1253	852	128	1315	812	1095	975	1095	975
453.povray	128	605	1130	603	1130	597	1140	128	493	1380	492	1380	489	1390
454.calculix	128	601	1760	593	1780	590	1790	128	601	1760	593	1780	590	1790
459.GemsFDTD	128	2006	677	1995	681	2024	671	128	1916	709	1915	709	1914	709
465.tonto	128	1031	1220	1035	1220	1031	1220	128	989	1270	989	1270	988	1280
470.lbm	128	1079	1630	1079	1630	1077	1630	128	1079	1630	1079	1630	1077	1630
481.wrf	128	1017	1410	990	1440	1004	1420	128	1017	1410	990	1440	1004	1420
482.sphinx3	128	1055	2370	1010	2470	1007	2480	128	1037	2410	988	2520	995	2510

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

 The system was configured as a single partition with 16 cells and
 4 processors (8 cores) per cell.  Memory was configured as 50% local
 and 50% interleaved.

 The following config file entry was used to bind
 processes to cells using the HP-UX "mpsched" utility:
 submit = let "MYNUM=$SPECCOPYNUM" ; let "LDOM=\$MYNUM/8" ; mpsched -l \$LDOM $command

Base Compiler Invocation

Base Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER
481.wrf:	-DNOUNDERSCORE +noppu

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Fortran benchmarks:

/opt/fortran90/bin/f90

Benchmarks using both Fortran and C:

/opt/ansic/bin/cc -Ae /opt/fortran90/bin/f90

Peak Portability Flags

453.povray:	-DSPEC_CPU_NEED_INVHYP
454.calculix:	-DSPEC_CPU_NOZMODIFIER
481.wrf:	-DNOUNDERSCORE +noppu

Peak Optimization Flags

C benchmarks:

433.milc:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
470.lbm:	basepeak = yes
482.sphinx3:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	basepeak = yes
450.soplex:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap -Wl,-N
453.povray:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	+Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct -Wl,-N
465.tonto:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct

Benchmarks using both Fortran and C:

435.gromacs:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster(-hp_cc) +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap +Ofaster(-hp_f90)
436.cactusADM:	basepeak = yes
454.calculix:	basepeak = yes
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.06.xml.
