SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL585 (AMD Opteron 854)

SPECfp®2006 = 13.0

CPU2006 license: 3 Test date: Apr-2006
Test sponsor: Hewlett-Packard Company Hardware Availability: Oct-2005
Tested by: Hewlett-Packard Company Software Availability: Mar-2006

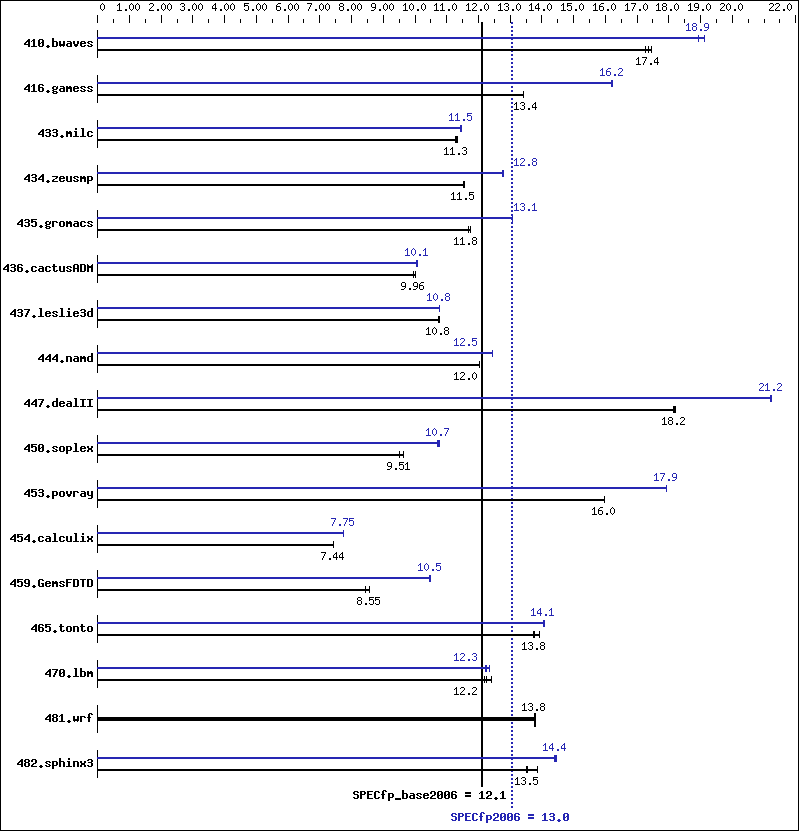

Benchmark results graph
Hardware
CPU Name: AMD Opteron 854
CPU Characteristics: 2.8GHz, 1MB L2 cache
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 2 cores, 2 chips, 1 core/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2048 MB PC3200 CL3.0)
Disk Subsystem: 1x146GB 10K Ultra320 SCSI
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 9 (x86_64) SP 3
SuSE kernel 2.6.5-7.244-smp
Compiler: PathScale EKO Compiler Suite, Release 2.4
PGI C Compiler 6.1-3 for Linux (64-bit)
PGI Fortran Compiler 6.1-3 for Linux (64-bit)
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 779 17.4  783 17.4  787 17.3  718 18.9  711 19.1  717 18.9
416.gamess 1460 13.4  1459 13.4  1459 13.4  1208 16.2  1208 16.2  1208 16.2
433.milc 814 11.3  810 11.3  812 11.3  803 11.4  800 11.5  801 11.5
434.zeusmp 787 11.6  789 11.5  790 11.5  712 12.8  712 12.8  713 12.8
435.gromacs 610 11.7  608 11.8  607 11.8  546 13.1  546 13.1  547 13.1
436.cactusADM 1194 10.0  1200 9.96 1202 9.94 1186 10.1  1191 10.0  1185 10.1
437.leslie3d 871 10.8  874 10.8  875 10.7  872 10.8  872 10.8  872 10.8
444.namd 666 12.0  666 12.0  666 12.0  644 12.5  644 12.5  644 12.4
447.dealII 628 18.2  630 18.2  631 18.1  540 21.2  539 21.2  539 21.2
450.soplex 865 9.64 877 9.51 877 9.51 775 10.8  778 10.7  777 10.7
453.povray 333 16.0  333 16.0  333 16.0  297 17.9  297 17.9  297 17.9
454.calculix 1109 7.44 1110 7.43 1109 7.44 1064 7.75 1064 7.75 1065 7.74
459.GemsFDTD 1255 8.45 1241 8.55 1240 8.56 1012 10.5  1013 10.5  1013 10.5
465.tonto 707 13.9  715 13.8  717 13.7  700 14.1  701 14.0  698 14.1
470.lbm 1106 12.4  1122 12.2  1126 12.2  1113 12.3  1124 12.2  1121 12.3
481.wrf 809 13.8  811 13.8  811 13.8  809 13.8  811 13.8  811 13.8
482.sphinx3 1407 13.9  1441 13.5  1439 13.5  1350 14.4  1355 14.4  1347 14.5

General Notes

 BIOS Configuration Notes
   Node Interleaving is Disabled
 Other Configuration Notes
    Taskset utility used to bind process to CPU(s)

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast

Benchmarks using both Fortran and C:

 -Ofast

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
470.lbm:  pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks (except as noted below):

 pathf95
434.zeusmp:  pgf90
459.GemsFDTD:  pgf90

Benchmarks using both Fortran and C (except as noted below):

 pathcc   pathf95
454.calculix:  pgcc   pgf90

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -c9x   -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mipa=nolocalarg(pass 2)   -Mipa=vestigial(pass 2)   -Mpfo(pass 2)   -tp k8-64   -fastsse
470.lbm:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
482.sphinx3:  -c9x   -tp k8-64   -fastsse   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -Msignextend

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
447.dealII:  -Ofast   -m32   -fno-exceptions
450.soplex:  -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -tp k8-64   -fastsse   -Mfprelaxed   -Mvect=fuse
437.leslie3d:  -O3   -OPT:Ofast
459.GemsFDTD:  -tp k8-64   -fastsse   -Munroll=n:4
465.tonto:  -Ofast   -CG:local_fwd_sched=on   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -c9x   -tp k8-64   -fastsse   -Mnolre   -Mipa=fast   -Mipa=inline
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks (except as noted below):

 -w
470.lbm:  No flags used

Fortran benchmarks:

434.zeusmp:  -w
459.GemsFDTD:  -w

Benchmarks using both Fortran and C:

454.calculix:  -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.04.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.04.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v91.
Report generated on Tue Sep 13 11:17:08 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 August 2006.
