SPEC® ACCEL™ OMP Result

Supermicro

Intel Xeon Platinum 8592+

SuperServer SYS-221H-TN24R

ACCEL license:	001176	Test date:	Nov-2023
Test sponsor:	Supermicro	Hardware Availability:	Oct-2023
Tested by:	Supermicro	Software Availability:	Apr-2023

Hardware
CPU Name:	Intel Xeon Platinum 8592+
CPU Characteristics:	Intel Turbo Boost Technology up to 3.90 GHz
CPU MHz:	1900
CPU MHz Maximum:	3900
FPU:	Integrated
CPU(s) enabled:	128 cores, 2 chips, 64 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	2 MB I+D on chip per core
L3 Cache:	320 MB I+D on chip per chip
Other Cache:	None
Memory:	1 TB (16 x 64 GB 2Rx4 PC5-5600B-R)
Disk Subsystem:	1 x 960 GB NVMe SSD
Other Hardware:	None

Accelerator
Accel Model Name:	Intel Xeon Platinum 8592+
Accel Vendor:	Intel
Accel Name:	Intel Xeon Platinum 8592+
Type of Accel:	CPU
Accel Connection:	N/A
Does Accel Use ECC:	Yes
Accel Description:	2 x Intel Xeon Platinum 8592+
Accel Driver:	N/A

Software
Operating System:	Ubuntu 22.04.3 LTS 6.2.0-37-generic
Compiler:	C/C++/Fortran: Version 2023.1 of Intel oneAPI DPC++/C++
File System:	ext4
System State:	Run level 3 (multi-user)
Other Software:	None

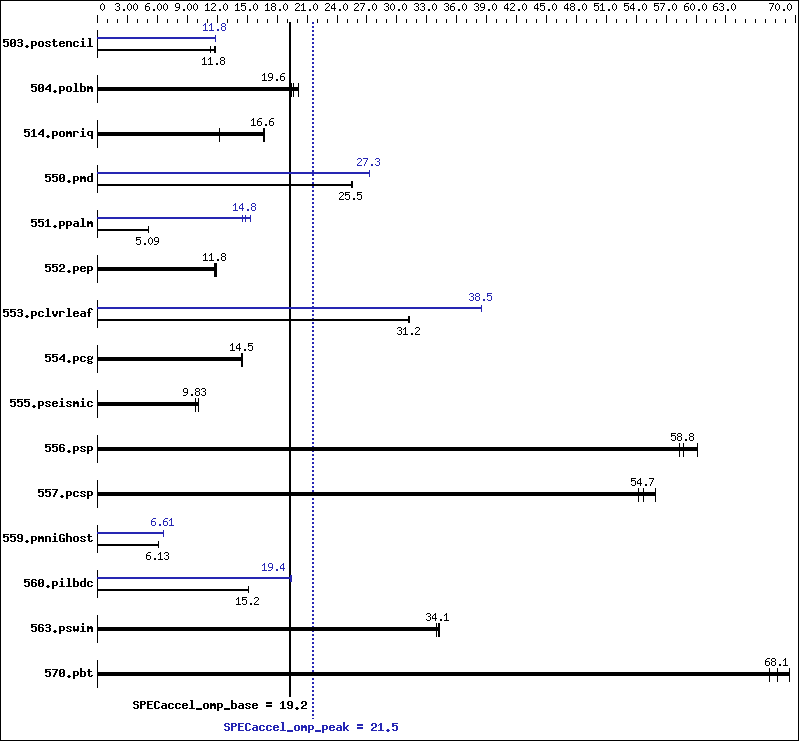

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
503.postencil	9.65	11.3	9.25	11.8	9.27	11.8	9.23	11.8	9.21	11.8	9.25	11.8
504.polbm	6.07	20.1	6.21	19.6	6.26	19.5	6.07	20.1	6.21	19.6	6.26	19.5
514.pomriq	37.2	16.7	50.9	12.2	37.4	16.6	37.2	16.7	50.9	12.2	37.4	16.6
550.pmd	9.48	25.4	9.45	25.5	9.44	25.5	8.84	27.3	8.83	27.3	8.84	27.3
551.ppalm	106	5.12	107	5.09	107	5.09	35.6	15.3	37.5	14.5	36.7	14.8
552.pep	19.6	11.8	19.4	11.9	19.7	11.7	19.6	11.8	19.4	11.9	19.7	11.7
553.pclvrleaf	36.7	31.2	36.7	31.2	36.7	31.2	29.7	38.5	29.7	38.5	29.7	38.5
554.pcg	23.0	14.5	22.9	14.5	23.1	14.4	23.0	14.5	22.9	14.5	23.1	14.4
555.pseismic	28.7	9.83	27.9	10.1	28.7	9.82	28.7	9.83	27.9	10.1	28.7	9.82
556.psp	13.9	58.8	13.6	60.1	14.0	58.4	13.9	58.8	13.6	60.1	14.0	58.4
557.pcsp	15.4	55.9	15.8	54.2	15.7	54.7	15.4	55.9	15.8	54.2	15.7	54.7
559.pmniGhost	64.8	6.13	64.8	6.13	64.7	6.14	60.1	6.61	60.0	6.62	60.0	6.61
560.pilbdc	43.1	15.2	43.1	15.2	43.1	15.1	33.6	19.4	33.7	19.4	33.6	19.5
563.pswim	4.66	34.1	4.67	34.0	4.64	34.3	4.66	34.1	4.67	34.0	4.64	34.3
570.pbt	11.2	69.3	11.6	67.3	11.4	68.1	11.2	69.3	11.6	67.3	11.4	68.1

Platform Notes

 Sysinfo program /home/accel/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on mingyuan-Super-Server Mon Nov 27 11:30:32 2023

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : INTEL(R) XEON(R) PLATINUM 8592+
       2 "physical id"s (chips)
       256 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 64
       siblings  : 128
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63
    cache size : 327680 KB

 From /proc/meminfo
    MemTotal:       1056462728 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Ubuntu 22.04.3 LTS

 From /etc/*release* /etc/*version*
    debian_version: bookworm/sid
    os-release:
       PRETTY_NAME="Ubuntu 22.04.3 LTS"
       NAME="Ubuntu"
       VERSION_ID="22.04"
       VERSION="22.04.3 LTS (Jammy Jellyfish)"
       VERSION_CODENAME=jammy
       ID=ubuntu
       ID_LIKE=debian
       HOME_URL="https://www.ubuntu.com/"

 uname -a:
    Linux mingyuan-Super-Server 6.2.0-37-generic #38~22.04.1-Ubuntu SMP
    PREEMPT_DYNAMIC Thu Nov  2 18:01:13 UTC 2 x86_64 x86_64 x86_64 GNU/Linux

 run-level 3 Nov 27 11:26

 SPEC is set to: /home/accel
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/nvme0n1p2 ext4  879G  230G  605G  28% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS American Megatrends International, LLC. 2.0 10/07/2023
   Memory:
    16x Micron Technology MTC40F2046S1RC56BD1 64 GB 2 rank 5600 MT/s
    16x NO DIMM NO DIMM

 (End of data from sysinfo program)

General Notes

=========================================================================
BIOS Setting:
    Power Performance Tuning = BIOS Controls EPB
    ENERGY_PERF_BIAS_CFG Mode = Extreme Performance
    UMA-Based Clustering = Disable (All2All)
=========================================================================
Spectre and Meltdown
    NA: The test sponsor attests, as of date of publication, the CVE-2017-5754 (Meltdown)
    is mitigated in the system as tested and documented.
    Yes: The test sponsor attests, as of date of publication, the CVE-2017-5753 (Spectre variant 1)
    is mitigated in the system as tested and documented.
    Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
    is mitigated in the system as tested and documented.
=========================================================================
OS tunning:
    Stack size set to unlimited using "ulimit -s unlimited"
=========================================================================
IPMI setting:
    Fan Mode: Full Speed

Base Compiler Invocation

C benchmarks:

icc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Base Portability Flags

503.postencil:	-DSPEC_USE_INNER_SIMD
504.polbm:	-DSPEC_USE_INNER_SIMD
514.pomriq:	-DSPEC_USE_INNER_SIMD
550.pmd:	-DSPEC_USE_INNER_SIMD -80
551.ppalm:	-DSPEC_USE_INNER_SIMD
552.pep:	-DSPEC_USE_INNER_SIMD
553.pclvrleaf:	-DSPEC_USE_INNER_SIMD
554.pcg:	-DSPEC_USE_INNER_SIMD
555.pseismic:	-DSPEC_USE_INNER_SIMD
556.psp:	-DSPEC_USE_INNER_SIMD
557.pcsp:	-DSPEC_USE_INNER_SIMD
559.pmniGhost:	-DSPEC_USE_INNER_SIMD -nofor-main
560.pilbdc:	-DSPEC_USE_INNER_SIMD
563.pswim:	-DSPEC_USE_INNER_SIMD
570.pbt:	-DSPEC_USE_INNER_SIMD

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

icc

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icc ifort

Peak Portability Flags

503.postencil:	-DSPEC_USE_INNER_SIMD
504.polbm:	-DSPEC_USE_INNER_SIMD
514.pomriq:	-DSPEC_USE_INNER_SIMD
550.pmd:	-DSPEC_USE_INNER_SIMD -80
551.ppalm:	-DSPEC_USE_INNER_SIMD -DSPEC_HOST_FFTW3
552.pep:	-DSPEC_USE_INNER_SIMD
553.pclvrleaf:	-DSPEC_USE_INNER_SIMD
554.pcg:	-DSPEC_USE_INNER_SIMD
555.pseismic:	-DSPEC_USE_INNER_SIMD
556.psp:	-DSPEC_USE_INNER_SIMD
557.pcsp:	-DSPEC_USE_INNER_SIMD
559.pmniGhost:	-DSPEC_USE_INNER_SIMD -nofor-main
560.pilbdc:	-DSPEC_USE_INNER_SIMD
563.pswim:	-DSPEC_USE_INNER_SIMD
570.pbt:	-DSPEC_USE_INNER_SIMD

Peak Optimization Flags

C benchmarks:

503.postencil:	-Ofast -xCORE-AVX512 -qopt-zmm-usage=high -no-prec-sqrt -qopenmp -qopenmp-offload=host -ipo -ansi-alias -qopt-multiple-gather-scatter-by-shuffles -fimf-precision=low:exp,sin,cos,sincos,log
504.polbm:	basepeak = yes
514.pomriq:	basepeak = yes
552.pep:	basepeak = yes
554.pcg:	basepeak = yes
557.pcsp:	basepeak = yes
570.pbt:	basepeak = yes

Fortran benchmarks:

550.pmd:	-Ofast -xCORE-AVX512 -qopt-zmm-usage=high -no-prec-sqrt -qopenmp -qopenmp-offload=host -ipo -ansi-alias -qopt-multiple-gather-scatter-by-shuffles -fimf-precision=low:exp,sin,cos,sincos,log -fimf-precision=low -ip
551.ppalm:	-Ofast -xCORE-AVX512 -qopt-zmm-usage=high -no-prec-sqrt -qopenmp -qopenmp-offload=host -ipo -ansi-alias -qopt-multiple-gather-scatter-by-shuffles -fimf-precision=low:exp,sin,cos,sincos,log -I/home/FFTW/fftw-3.3.10/include -L/home/FFTW/fftw-3.3.10/lib
555.pseismic:	basepeak = yes
556.psp:	basepeak = yes
560.pilbdc:	-Ofast -xCORE-AVX512 -qopt-zmm-usage=high -no-prec-sqrt -qopenmp -qopenmp-offload=host -ipo -ansi-alias -qopt-multiple-gather-scatter-by-shuffles -fimf-precision=low:exp,sin,cos,sincos,log
563.pswim:	basepeak = yes

Benchmarks using both Fortran and C:

-Ofast -xCORE-AVX512 -qopt-zmm-usage=high -no-prec-sqrt -qopenmp -qopenmp-offload=host -ipo -ansi-alias -qopt-multiple-gather-scatter-by-shuffles -fimf-precision=low:exp,sin,cos,sincos,log

Peak Other Flags

Fortran benchmarks:

551.ppalm:

-lfftw3

The flags files that were used to format this result can be browsed at
https://www.spec.org/accel/flags/Intel-icc2021.2-linux64.20230726.html,
https://www.spec.org/accel/flags/Supermicro-Platform-Settings-V1.2-SPR-revF.html.

You can also download the XML flags sources by saving the following links:
https://www.spec.org/accel/flags/Intel-icc2021.2-linux64.20230726.xml,
https://www.spec.org/accel/flags/Supermicro-Platform-Settings-V1.2-SPR-revF.xml.
