SPEC® ACCEL™ OMP Result

Copyright 2015-2023 Standard Performance Evaluation Corporation

Supermicro

Intel Xeon Platinum 8490H

SuperServer SYS-221H-TN24R

SPECaccel_omp_base = 13.9

SPECaccel_omp_peak = 13.9

ACCEL license: 001176 Test date: Jan-2023
Test sponsor: Supermicro Hardware Availability: Jan-2023
Tested by: Supermicro Software Availability: Aug-2022

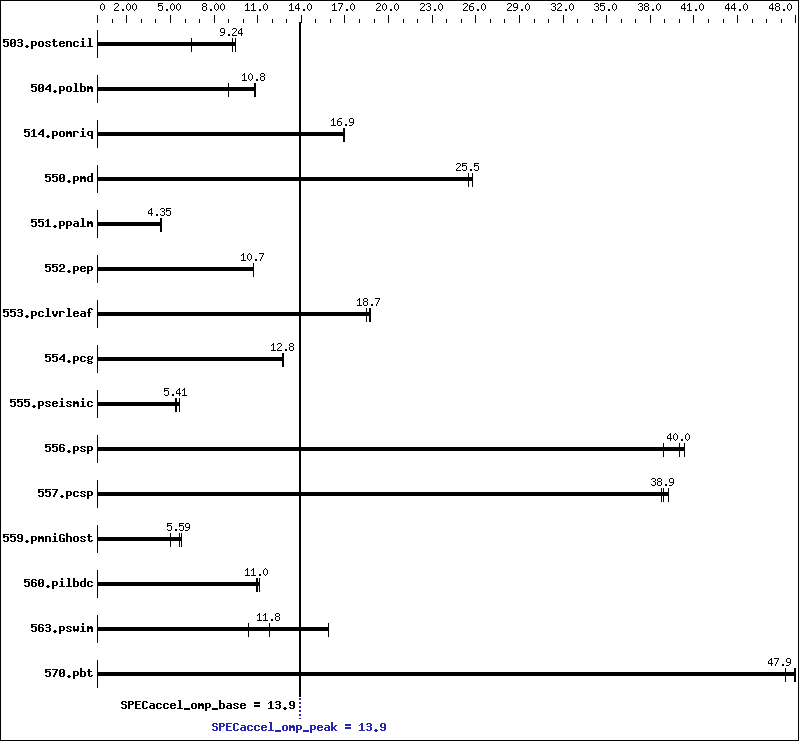

Benchmark results graph
Hardware
CPU Name: Intel Xeon Platinum 8490H
CPU Characteristics: Intel Turbo Boost Technology up to 3.50 GHz
CPU MHz: 1900
CPU MHz Maximum: 3500
FPU: Integrated
CPU(s) enabled: 120 cores, 2 chips, 60 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 48 KB D on chip per core
Secondary Cache: 2 MB I+D on chip per core
L3 Cache: 115200 KB I+D on chip per chip
Other Cache: None
Memory: 1 TB (16 x 64 GB 2Rx4 PC5-4800B-R)
Disk Subsystem: 1 x 1.92 TB M.2 NVME SSD
Other Hardware: None
Accelerator
Accel Model Name: Intel Xeon Platinum 8490H
Accel Vendor: Intel
Accel Name: Intel Xeon Platinum 8490H
Type of Accel: CPU
Accel Connection: N/A
Does Accel Use ECC: Yes
Accel Description: 2 x Intel Xeon Platinum 8490H
Accel Driver: N/A
Software
Operating System: Ubuntu 22.04.1 LTS
5.15.0-58-generic
Compiler: C/C++/Fortran: Version 2023.0.0.20221208 of Intel
oneAPI DPC++/C++
File System: ext4
System State: Run-level 5 (multi-user)
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
503.postencil 11.5   9.47  11.8   9.24  17.0   6.42  11.5   9.47  11.8   9.24  17.0   6.42
504.polbm 11.3   10.8   13.6   8.96  11.2   10.8   11.3   10.8   13.6   8.96  11.2   10.8
514.pomriq 36.6   17.0   36.8   16.9   36.7   16.9   36.6   17.0   36.8   16.9   36.7   16.9
550.pmd 9.44  25.5   9.36  25.8   9.45  25.5   9.44  25.5   9.36  25.8   9.45  25.5
551.ppalm 125     4.35  126     4.33  124     4.40  125     4.35  126     4.33  124     4.40
552.pep 21.6   10.7   21.6   10.7   21.6   10.7   21.6   10.7   21.6   10.7   21.6   10.7
553.pclvrleaf 61.0   18.8   61.9   18.5   61.3   18.7   61.0   18.8   61.9   18.5   61.3   18.7
554.pcg 26.2   12.7   26.1   12.8   26.1   12.8   26.2   12.7   26.1   12.8   26.1   12.8
555.pseismic 52.1   5.41  53.1   5.31  49.9   5.65  52.1   5.41  53.1   5.31  49.9   5.65
556.psp 21.0   38.9   20.3   40.4   20.5   40.0   21.0   38.9   20.3   40.4   20.5   40.0
557.pcsp 21.9   39.3   22.2   38.8   22.1   38.9   21.9   39.3   22.2   38.8   22.1   38.9
559.pmniGhost 79.5   4.99  71.0   5.59  69.0   5.76  79.5   4.99  71.0   5.59  69.0   5.76
560.pilbdc 59.4   11.0   59.8   10.9   58.6   11.1   59.4   11.0   59.8   10.9   58.6   11.1
563.pswim 15.3   10.4   13.5   11.8   10.0   15.9   15.3   10.4   13.5   11.8   10.0   15.9
570.pbt 16.5   47.3   16.3   47.9   16.3   48.0   16.5   47.3   16.3   47.9   16.3   48.0

Platform Notes

 Sysinfo program /home/accel/Docs/sysinfo
 $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35
 running on lab Sat Jan 21 03:36:06 2023

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/accel/Docs/config.html#sysinfo

 From /proc/cpuinfo
    model name : Intel(R) Xeon(R) Platinum 8490H
       2 "physical id"s (chips)
       240 "processors"
    cores, siblings (Caution: counting these is hw and system dependent.  The
    following excerpts from /proc/cpuinfo might not be reliable.  Use with
    caution.)
       cpu cores : 60
       siblings  : 120
       physical 0: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
       physical 1: cores 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
       22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46
       47 48 49 50 51 52 53 54 55 56 57 58 59
    cache size : 115200 KB

 From /proc/meminfo
    MemTotal:       1056094820 kB
    HugePages_Total:       0
    Hugepagesize:       2048 kB

 /usr/bin/lsb_release -d
    Ubuntu 22.04.1 LTS

 From /etc/*release* /etc/*version*
    debian_version: bookworm/sid
    os-release:
       PRETTY_NAME="Ubuntu 22.04.1 LTS"
       NAME="Ubuntu"
       VERSION_ID="22.04"
       VERSION="22.04.1 LTS (Jammy Jellyfish)"
       VERSION_CODENAME=jammy
       ID=ubuntu
       ID_LIKE=debian
       HOME_URL="https://www.ubuntu.com/"

 uname -a:
    Linux lab 5.15.0-58-generic #64-Ubuntu SMP Thu Jan 5 11:43:13 UTC 2023 x86_64
    x86_64 x86_64 GNU/Linux

 run-level 5 Jan 21 02:22

 SPEC is set to: /home/accel
    Filesystem     Type  Size  Used Avail Use% Mounted on
    /dev/nvme0n1p2 ext4  1.8T   27G  1.7T   2% /
 Additional information from dmidecode:

    Warning: Use caution when you interpret this section. The 'dmidecode' program
    reads system data which is "intended to allow hardware to be accurately
    determined", but the intent may not be met, as there are frequent changes to
    hardware, firmware, and the "DMTF SMBIOS" standard.

   BIOS Supermicro X13DEM 1.1 01/20/2023
   Memory:
    16x Micron Technology MTC40F2046S1RC48BA1 64 GB 2 rank 4800 MT/s


 (End of data from sysinfo program)

General Notes

=========================================================================
BIOS Setting:
    Power Performance Tuning = BIOS Controls EPB
    ENERGY_PERF_BIAS_CFG Mode = Extreme Performance
    LLC Dead Line Alloc = Auto
    NUMA = Disabled
    UMA-Based Clustering = Disable (All2All)
=========================================================================
Spectre and Meltdown
    NA: The test sponsor attests, as of date of publication, the CVE-2017-5754 (Meltdown)
    is mitigated in the system as tested and documented.
    Yes: The test sponsor attests, as of date of publication, the CVE-2017-5753 (Spectre variant 1)
    is mitigated in the system as tested and documented.
    Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2)
    is mitigated in the system as tested and documented.
=========================================================================
OS tunning:
    Stack size set to unlimited using "ulimit -s unlimited"

Base Compiler Invocation

C benchmarks:

 icc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

503.postencil:  -DSPEC_USE_INNER_SIMD
504.polbm:  -DSPEC_USE_INNER_SIMD
514.pomriq:  -DSPEC_USE_INNER_SIMD
550.pmd:  -DSPEC_USE_INNER_SIMD
551.ppalm:  -DSPEC_USE_INNER_SIMD
552.pep:  -DSPEC_USE_INNER_SIMD
553.pclvrleaf:  -DSPEC_USE_INNER_SIMD
554.pcg:  -DSPEC_USE_INNER_SIMD
555.pseismic:  -DSPEC_USE_INNER_SIMD
556.psp:  -DSPEC_USE_INNER_SIMD
557.pcsp:  -DSPEC_USE_INNER_SIMD
559.pmniGhost:  -DSPEC_USE_INNER_SIMD   -nofor-main
560.pilbdc:  -DSPEC_USE_INNER_SIMD
563.pswim:  -DSPEC_USE_INNER_SIMD
570.pbt:  -DSPEC_USE_INNER_SIMD

Base Optimization Flags

C benchmarks:

 -qopenmp   -qopenmp-offload=host   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -no-prec-sqrt   -qopt-multiple-gather-scatter-by-shuffles

Fortran benchmarks:

 -qopenmp   -qopenmp-offload=host   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -no-prec-sqrt   -qopt-multiple-gather-scatter-by-shuffles

Benchmarks using both Fortran and C:

 -qopenmp   -qopenmp-offload=host   -Ofast   -xCORE-AVX512   -qopt-zmm-usage=high   -fimf-precision=low:exp,sin,cos,sincos,log   -no-prec-sqrt   -qopt-multiple-gather-scatter-by-shuffles

Peak Optimization Flags

C benchmarks:

503.postencil:  basepeak = yes
504.polbm:  basepeak = yes
514.pomriq:  basepeak = yes
552.pep:  basepeak = yes
554.pcg:  basepeak = yes
557.pcsp:  basepeak = yes
570.pbt:  basepeak = yes

Fortran benchmarks:

550.pmd:  basepeak = yes
551.ppalm:  basepeak = yes
555.pseismic:  basepeak = yes
556.psp:  basepeak = yes
560.pilbdc:  basepeak = yes
563.pswim:  basepeak = yes

Benchmarks using both Fortran and C:

553.pclvrleaf:  basepeak = yes
559.pmniGhost:  basepeak = yes

The flags files that were used to format this result can be browsed at
https://www.spec.org/accel/flags/Intel-compiler.20230208.html,
https://www.spec.org/accel/flags/Supermicro-Platform-Settings-V1.2-SPR-revC.html.

You can also download the XML flags sources by saving the following links:
https://www.spec.org/accel/flags/Intel-compiler.20230208.xml,
https://www.spec.org/accel/flags/Supermicro-Platform-Settings-V1.2-SPR-revC.xml.
