Lenovo Global Technology NVIDIA Tesla V100S-PCIE-16GB ThinkSystem SR860 V2 |
SPECaccel_ocl_base = 12.2 |
|
SPECaccel_ocl_peak = 13.5 |
| ACCEL license: | 28 | Test date: | Aug-2020 |
|---|---|---|---|
| Test sponsor: | Lenovo Global Technology | Hardware Availability: | Oct-2020 |
| Tested by: | Lenovo Global Technology | Software Availability: | Oct-2020 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon Platinum 8380H |
| CPU Characteristics: | Intel Turbo Boost Technology up to 4.3 GHz |
| CPU MHz: | 2900 |
| CPU MHz Maximum: | 4300 |
| FPU: | Integrated |
| CPU(s) enabled: | 112 cores, 4 chips, 28 cores/chip |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 39424 KB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1536 GB (48 x 32 GB 2Rx8 PC4-3200AA-R) |
| Disk Subsystem: | 1 x 1TB SATA 2.5" SSD |
| Other Hardware: | None |
| Accelerator | |
|---|---|
| Accel Model Name: | Tesla V100S |
| Accel Vendor: | NVIDIA Corporation |
| Accel Name: | NVIDIA Tesla V100S-PCIE-16GB |
| Type of Accel: | GPU |
| Accel Connection: | PCIe 3.0 16x |
| Does Accel Use ECC: | Yes |
| Accel Description: | NVIDIA Tesla V100S-PCIE-16GB |
| Accel Driver: | NVIDIA UNIX x86_64 Kernel Module 450.51.06 |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 15 SP2 5.3.18-22-default |
| Compiler: | Nvidia HPC SDK Release 20.5 |
| File System: | xfs |
| System State: | Run level 3 |
| Other Software: | CUDA 11.0 SDK |

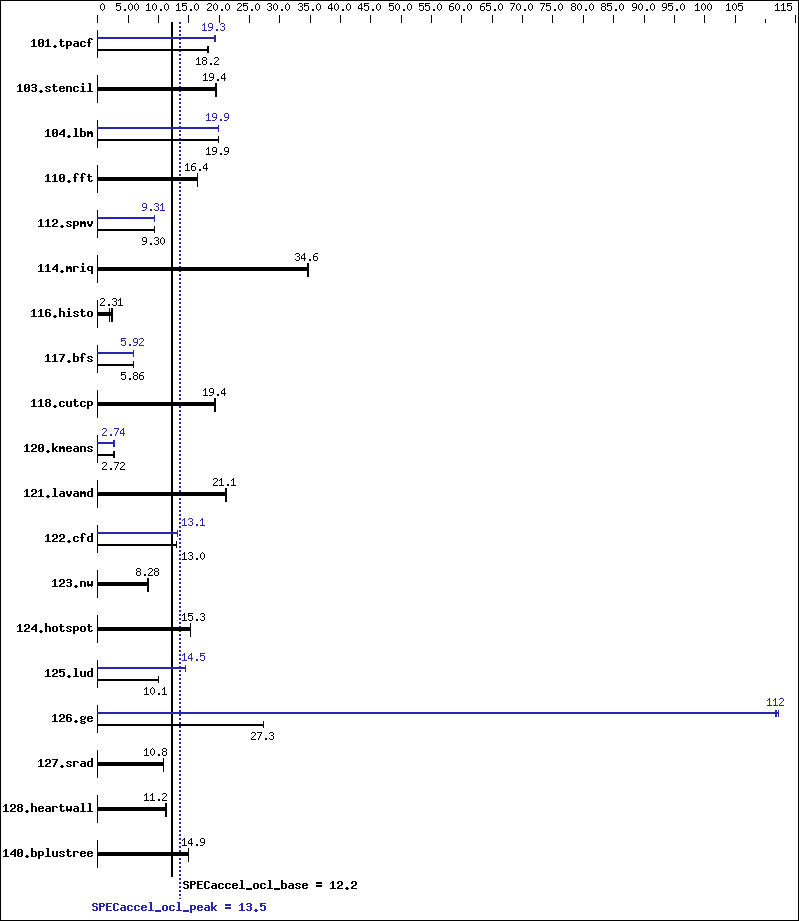

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 101.tpacf | 5.88 | 18.2 | 5.90 | 18.1 | 5.87 | 18.2 | 5.55 | 19.3 | 5.54 | 19.3 | 5.52 | 19.4 |
| 103.stencil | 6.43 | 19.4 | 6.46 | 19.4 | 6.41 | 19.5 | 6.43 | 19.4 | 6.46 | 19.4 | 6.41 | 19.5 |
| 104.lbm | 5.61 | 20.0 | 5.62 | 19.9 | 5.62 | 19.9 | 5.62 | 19.9 | 5.64 | 19.9 | 5.63 | 19.9 |
| 110.fft | 6.77 | 16.4 | 6.77 | 16.4 | 6.75 | 16.4 | 6.77 | 16.4 | 6.77 | 16.4 | 6.75 | 16.4 |
| 112.spmv | 15.7 | 9.34 | 15.8 | 9.30 | 15.8 | 9.30 | 15.8 | 9.31 | 15.8 | 9.31 | 15.8 | 9.32 |
| 114.mriq | 3.14 | 34.7 | 3.15 | 34.6 | 3.16 | 34.5 | 3.14 | 34.7 | 3.15 | 34.6 | 3.16 | 34.5 |
| 116.histo | 49.4 | 2.31 | 48.3 | 2.36 | 56.6 | 2.02 | 49.4 | 2.31 | 48.3 | 2.36 | 56.6 | 2.02 |
| 117.bfs | 20.0 | 5.86 | 20.0 | 5.86 | 19.9 | 5.87 | 19.7 | 5.93 | 19.8 | 5.91 | 19.8 | 5.92 |
| 118.cutcp | 5.11 | 19.4 | 5.13 | 19.3 | 5.11 | 19.4 | 5.11 | 19.4 | 5.13 | 19.3 | 5.11 | 19.4 |
| 120.kmeans | 36.4 | 2.74 | 37.7 | 2.65 | 36.8 | 2.72 | 36.2 | 2.76 | 37.7 | 2.65 | 36.4 | 2.74 |
| 121.lavamd | 5.17 | 21.1 | 5.16 | 21.1 | 5.14 | 21.2 | 5.17 | 21.1 | 5.16 | 21.1 | 5.14 | 21.2 |
| 122.cfd | 9.72 | 13.0 | 9.69 | 13.0 | 9.68 | 13.0 | 9.63 | 13.1 | 9.60 | 13.1 | 9.62 | 13.1 |
| 123.nw | 13.9 | 8.28 | 13.9 | 8.29 | 13.9 | 8.27 | 13.9 | 8.28 | 13.9 | 8.29 | 13.9 | 8.27 |
| 124.hotspot | 7.45 | 15.3 | 7.48 | 15.2 | 7.45 | 15.3 | 7.45 | 15.3 | 7.48 | 15.2 | 7.45 | 15.3 |
| 125.lud | 11.8 | 10.1 | 11.8 | 10.0 | 11.8 | 10.1 | 8.22 | 14.5 | 8.25 | 14.4 | 8.20 | 14.5 |
| 126.ge | 5.67 | 27.3 | 5.68 | 27.3 | 5.67 | 27.3 | 1.38 | 112 | 1.39 | 112 | 1.39 | 112 |
| 127.srad | 10.6 | 10.8 | 10.6 | 10.8 | 10.6 | 10.8 | 10.6 | 10.8 | 10.6 | 10.8 | 10.6 | 10.8 |
| 128.heartwall | 9.49 | 11.2 | 9.46 | 11.2 | 9.42 | 11.2 | 9.49 | 11.2 | 9.46 | 11.2 | 9.42 | 11.2 |
| 140.bplustree | 7.26 | 14.9 | 7.26 | 14.9 | 7.25 | 14.9 | 7.26 | 14.9 | 7.26 | 14.9 | 7.25 | 14.9 |
Submit Notes
The config file option 'submit' was used.
Platform Notes
Sysinfo program /home/ACCEL1.3/Docs/sysinfo $Rev: 6965 $ $Date:: 2015-04-21 #$ c05a7f14b1b1765e3fe1df68447e8a35 running on Narvi152 Tue Aug 18 13:36:52 2020 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/accel/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) Platinum 8380H CPU @ 2.90GHz 4 "physical id"s (chips) 112 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 28 siblings : 28 physical 0: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 1: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 2: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 physical 3: cores 0 1 2 3 4 5 6 8 9 10 11 12 13 14 16 17 18 19 20 21 22 24 25 26 27 28 29 30 cache size : 39424 KB From /proc/meminfo MemTotal: 1584974840 kB HugePages_Total: 0 Hugepagesize: 2048 kB From /etc/*release* /etc/*version* os-release: NAME="SLES" VERSION="15-SP2" VERSION_ID="15.2" PRETTY_NAME="SUSE Linux Enterprise Server 15 SP2" ID="sles" ID_LIKE="suse" ANSI_COLOR="0;32" CPE_NAME="cpe:/o:suse:sles:15:sp2" uname -a: Linux Narvi152 5.3.18-22-default #1 SMP Wed Jun 3 12:16:43 UTC 2020 (720aeba) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Aug 17 15:54 SPEC is set to: /home/ACCEL1.3 Filesystem Type Size Used Avail Use% Mounted on /dev/sda4 xfs 490G 47G 443G 10% /home Additional information from dmidecode: Warning: Use caution when you interpret this section. The 'dmidecode' program reads system data which is "intended to allow hardware to be accurately determined", but the intent may not be met, as there are frequent changes to hardware, firmware, and the "DMTF SMBIOS" standard. BIOS Lenovo M5E103N-1.00 08/07/2020 Memory: 48x Samsung M393A4G43AB3-CWE 32 GB 2 rank 3200 MT/s (End of data from sysinfo program)
General Notes
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Base Runtime Environment
C benchmarks:
| OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 11.0.197 OpenCL Device #0: Tesla V100S-PCIE-32GB, v 450.51.06 |
C++ benchmarks:
| OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 11.0.197 OpenCL Device #0: Tesla V100S-PCIE-32GB, v 450.51.06 |
Base Other Flags
C benchmarks:
| -I/usr/local/cuda-11.0/targets/x86_64-linux/include -L/usr/local/cuda-11.0/lib64 -lOpenCL |
C++ benchmarks:
| -I/usr/local/cuda-11.0/targets/x86_64-linux/include -L/usr/local/cuda-11.0/lib64 -lOpenCL |
Peak Runtime Environment
C benchmarks:
| OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 11.0.197 OpenCL Device #0: Tesla V100S-PCIE-32GB, v 450.51.06 |
C++ benchmarks:
| OpenCL Platform: NVIDIA CUDA, OpenCL 1.2 CUDA 11.0.197 OpenCL Device #0: Tesla V100S-PCIE-32GB, v 450.51.06 |
Peak Optimization Flags
C benchmarks:
| 110.fft: | basepeak = yes |
| 114.mriq: | basepeak = yes |
| 116.histo: | basepeak = yes |
| 117.bfs: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_0_0=64 -DSPEC_ACCEL_WG_SIZE_1_0=64 |
| 118.cutcp: | basepeak = yes |
| 121.lavamd: | basepeak = yes |
| 124.hotspot: | basepeak = yes |
| 127.srad: | basepeak = yes |
| 128.heartwall: | basepeak = yes |
| 140.bplustree: | basepeak = yes |
C++ benchmarks:
| 101.tpacf: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_0_0=1024 |
| 103.stencil: | basepeak = yes |
| 104.lbm: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_0_0=32 -DSPEC_ACCEL_WG_SIZE_0_1=1 -DSPEC_ACCEL_WG_SIZE_0_2=1 |
| 112.spmv: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_0_0=96 |
| 120.kmeans: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_0_0=288 |
| 122.cfd: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_3_0=288 |
| 123.nw: | basepeak = yes |
| 125.lud: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_0_0=32 |
| 126.ge: | -fast -Mfprelaxed -DSPEC_ACCEL_WG_SIZE_0_0=512 -DSPEC_ACCEL_WG_SIZE_1_0=1 -DSPEC_ACCEL_WG_SIZE_1_1=512 |
