SPECsfs97_R1.v3 Result

ONStor, Inc. :	ONStor Bobcat 2260 NAS Gateway / 3PAR InServ S800 Storage Server (RAID-1)
SPECsfs97_R1.v3 =	30530 Ops/Sec (Overall Response Time = 1.78 msec)

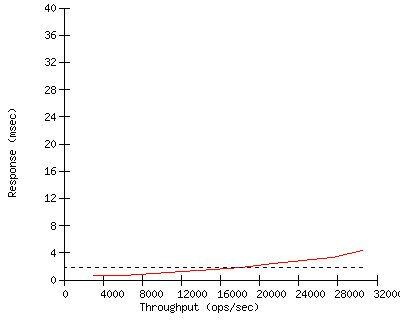

Performance

Throughput (ops/sec)	Response (msec)
3038	0.7
6042	0.6
9121	0.9
12106	1.3
15235	1.5
18094	1.9
21393	2.4
24343	2.9
27457	3.3
30530	4.4

Configuration

Server Configuration and Availability
Vendor	ONStor, Inc.
Hardware Available	Feb 2005
Software Available	Jun 2005
Date Tested	Jul 2005
SFS License Number	2192
Licensee Locations	Los Gatos, CA, USA

CPU, Memory and Power

Model Name ONStor Bobcat 2260 NAS Gateway / 3PAR InServ S800 Storage Server (RAID-1)

Processor 750 Mhz Broadcom BCM1250

# of Processors 4 cores, 2 chips, 2 cores/chip

Primary Cache 32 KB I + 32 KB D on chip

Secondary Cache 512 KB (I+D) on chip

Other Cache N/A

UPS N/A

Other Hardware McData Sphereon 4500

Memory Size 8 GB (filer) + 20 GB (3PAR InServ) (see notes)

NVRAM Size 0

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version EverON 1.2.2.6

Other Software 3PAR InForm OS 2.2

File System STOR-FS

NFS version 3

Server Tuning

Buffer Cache Size dynamic

# NFS Processes N/A

Fileset Size 290.1 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	custom (see notes)
Number Networks	1
Number Network Controllers	1
Protocol Type	TCP

Switch Type Extreme networks - Summit 7i - model 11704

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 1

Number of Disks 120

Number of Filesystems 16

File System Creation Ops N/A

File System Config VV striped across 60 disks (see notes)

Disk Controller 1 FC controller with 2 ports

# of Controller Type 1

Number of Disks 120

Disk Type 147 GB 10 K RPM - FC disks

File Systems on Disks vol201-vol208 and vol301-vol308

Special Config Notes N/A

Load Generator (LG) Configuration
Number of Load Generators	4
Number of Processes per LG	32
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Dell PowerEdge 1850

Number and Type Processors Intel(R) dual Xeon(TM) CPU 3.00GHz

Memory Size 2GB

Operating System Red Hat Enterprise Linux ES release 4

Compiler pre-compiled binary

Compiler Options N/A

Network Type 1 Gigabit Eth interface

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1-4 LG1 1 /vol201, /vol202, /vol203, /vol204, /vol205, /vol206, /vol207, /vol208, /vol301, /vol302, /vol303, /vol304, /vol305, /vol306, /vol307, /vol308, N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1-4	LG1	1	/vol201, /vol202, /vol203, /vol204, /vol205, /vol206, /vol207, /vol208, /vol301, /vol302, /vol303, /vol304, /vol305, /vol306, /vol307, /vol308,	N/A

Other Notes

The system under test is an ONStor Bobcat NAS Gateway in front of a
3PAR InServ S800 Storage Server.
The ONStor Bobcat NAS Gateway has no NVRAM anywhere in the filer.
All updates are written to external stable storage on 3PAR Storage
Server before acknowledging the client. Memory caches
within an ONStor NAS Gateway are effectively write-through caches.
The ONStor Bobcat NAS Gateway contains two BCM1250 processors each with
two cores (total 4 CPUs). All network protocol and filesystem operations
are performed by these processors.
The ONStor Bobcat NAS Gateway has one network controller with four Gigabit
ethernet connections, all connected to the same network. A custom FPGA
is used to calculate the CRC for TCP. Jumbo frames were not used.
The ONStor Bobcat NAS Gateway has one disk controller with two 2 Gbps FC
ports. All ports are managed by one core of a PMC-Sierra RM9200 CPU with
512 MB of memory and a QLOGIC ISP2312 FC controller.
The two FC controller ports on the ONStor Bobcat NAS Gateway were
connected to a 16 port fibre channel switch (McData Sphereon 4500).
Each 3PAR Controller Node had two ports connected to the same fibre
channel switch.
The 3PAR S800 Storage Server is a fibre-channel-attached, block-level
storage array. The 3PAR S800 was configured as a single array with two
2,400 MHz 3PAR Controller Nodes.
Each Controller Node of the 3PAR InServ S800 includes 8 GB of
data cache (16 GB total). The InServ S800 has an additional 2 GB
of control cache (CPU memory) per Controller Node.
Write-caching occurs in the disk subsystem only.
There are redundant lead-acid batteries supporting each 3PAR
Controller Node. These batteries power the node during a power
failure, saving all cache contents to an internal drive.
Booting after a power failure initiates a recovery process that
recovers cache contents from the internal drives.
The ONStor NAS Gateway created 16 filesystems (or "volumes" in ONStor
terminology). Each volume was written to eight 3PAR VVs
("Virtual Volumes") on the 3PAR InServ.
Each VV was configured for RAID-1 and striped across 60 disks.
Automatic snapshot scheduling was disabled and data cache read-ahead
was disabled on the NAS Gateway.
ONStor, the ONStor logo, EverON, and STOR-FS are trademarks of ONStor, Inc.
3PARdata, the 3PAR logo, 3PAR, InServ and InForm are trademarks of 3PARdata, Inc.
Other trademarks are the property of their respective holders.

First published at SPEC.org on 29-Aug-2005

LG Type	LG1
LG Model	Dell PowerEdge 1850
Number and Type Processors	Intel(R) dual Xeon(TM) CPU 3.00GHz
Memory Size	2GB
Operating System	Red Hat Enterprise Linux ES release 4
Compiler	pre-compiled binary
Compiler Options	N/A
Network Type	1 Gigabit Eth interface
