SPECsfs97_R1.v3 Result

IBM Corporation :	IBM eServer OpenPower 720 (1.65GHz, 4 CPU, TCP, Linux)
SPECsfs97_R1.v3 =	73092 Ops/Sec (Overall Response Time = 1.34 msec)

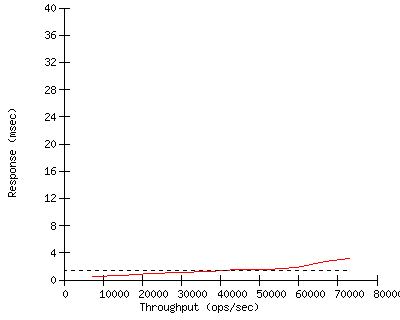

Performance

Throughput (ops/sec)	Response (msec)
7358	0.5
14728	0.7
22172	1.0
29562	1.1
37016	1.3
44459	1.5
52047	1.5
59543	1.8
66897	2.7
73092	3.2

Configuration

Server Configuration and Availability
Vendor	IBM Corporation
Hardware Available	September 2004
Software Available	January 2005
Date Tested	January 2005
SFS License Number	11
Licensee Locations	Austin, Texas

CPU, Memory and Power

Model Name IBM eServer OpenPower 720 (1.65GHz, 4 CPU, TCP, Linux)

Processor 1.65GHz POWER5

# of Processors 4 cores, 2 chips, 2 cores/chip (SMT on)

Primary Cache 64KBI+32KBD (on chip)/core

Secondary Cache 1920KB unified (on chip)/chip

Other Cache 36MB unified (off chip)/DCM, 2 DCMs/SUT

UPS N/A

Other Hardware N/A

Memory Size 64 GB

NVRAM Size 8 GB (8 x 1GB)

NVRAM Type 1GB battery-backed DRAM per controller

NVRAM Description 5-day battery; cache bypass on battery failure

Server Software

OS Name and Version SUSE LINUX Enterprise Server 9 SP1 for IBM POWER

Other Software N/A

File System OS on EXT3, test file systems on JFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 170

Fileset Size 705.9 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit
Network Controller Desc.	IBM 10/100/1000 Base-TX Ethernet
Number Networks	7 (N1-N7)
Number Network Controllers	7(See Other Notes)
Protocol Type	TCP

Switch Type N/A

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 9

Number of Disks 281

Number of Filesystems 56 (F1-F56)

File System Creation Ops default

File System Config default

Disk Controller PCI-X Dual Channel Ultra320 SCSI Adapter (integrated)

# of Controller Type 1

Number of Disks 1

Disk Type 72GB 15Krpm 16-Bit LVD SCSI Disk Drive

File Systems on Disks OS, page space

Special Config Notes N/A

Disk Controller IBM Fiber Channel Adapter (FC 6239)

# of Controller Type 8

Number of Disks 280

Disk Type 18.2GB 15Krpm 2Gb FC

File Systems on Disks F1-F7,F8-F14,F15-F21,F22-F28,...,F49-F56

Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators	7
Number of Processes per LG	32
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model IBM eServer xSeries 335

Number and Type Processors 2 x 2.0GHz Intel Xeon(HT disabled)

Memory Size 1 GB

Operating System RedHat 9.0

Compiler gcc (GCC) 3.2.2 20030222 (Red Hat Linux 3.2.2-5)

Compiler Options -O -DNO_T_TYPES -DUSE_INTTYPES -lm

Network Type Integrated Broadcom Gigabit

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1,F8,F15,...,F50,F2,F9,F16,...,F51,F3,F10,F17,...,F52,F4,F11,F18,...,F53 N/A

2 LG1 N2 F2,F9,F16,...,F51,F3,F10,F17,...,F52,F4,F11,F18,...,F53,F5,F12,F19,...,F54 N/A

3 LG1 N3 F3,F10,F17,...,F52,F4,F11,F18,...,F53,F5,F12,F19,...,F54,F6,F13,F20,...,F55 N/A

4 LG1 N4 F4,F11,F18,...,F53,F5,F12,F19,...,F54,F6,F13,F20,...,F55,F7,F14,F21,...,F56 N/A

5 LG1 N5 F5,F12,F19,...,F54,F6,F13,F20,...,F55,F7,F14,F21,...,F56,F1,F8,F15,...,F50 N/A

6 LG1 N6 F6,F13,F20,...,F55,F7,F14,F21,...,F56,F1,F8,F15,...,F50,F2,F9,F16,...,F51 N/A

7 LG1 N7 F7,F14,F21,...,F56,F1,F8,F15,...,F50,F2,F9,F16,...,F51,F3,F10,F17,...,F52 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1,F8,F15,...,F50,F2,F9,F16,...,F51,F3,F10,F17,...,F52,F4,F11,F18,...,F53	N/A
2	LG1	N2	F2,F9,F16,...,F51,F3,F10,F17,...,F52,F4,F11,F18,...,F53,F5,F12,F19,...,F54	N/A
3	LG1	N3	F3,F10,F17,...,F52,F4,F11,F18,...,F53,F5,F12,F19,...,F54,F6,F13,F20,...,F55	N/A
4	LG1	N4	F4,F11,F18,...,F53,F5,F12,F19,...,F54,F6,F13,F20,...,F55,F7,F14,F21,...,F56	N/A
5	LG1	N5	F5,F12,F19,...,F54,F6,F13,F20,...,F55,F7,F14,F21,...,F56,F1,F8,F15,...,F50	N/A
6	LG1	N6	F6,F13,F20,...,F55,F7,F14,F21,...,F56,F1,F8,F15,...,F50,F2,F9,F16,...,F51	N/A
7	LG1	N7	F7,F14,F21,...,F56,F1,F8,F15,...,F50,F2,F9,F16,...,F51,F3,F10,F17,...,F52	N/A

Other Notes

There are 4 IBM TotalStorage DS4400 Storage Server units attached to
the SUT. Each DS4400 contains 2 controllers. Each controller is
connected to an FC adapter. Also, each controller has a 1GB cache.
Writes to either cache are mirrored in the other such that the total
effective write cache is 1GB per DS4400. There are 5 EXP700 expansion
units connected to each DS4400. Every EXP700 contains 14 physical
disks. A logical disk is composed of 5 physical disks in a RAID-5
configuration. There is one test filesystem per logical disk.
EXT3 is used for the OS. JFS is used for the test filesystems (F1-F56).
DCM is a Dual-Chip Module, one dual-core cpu chip plus one L3-cache chip.
SMT stands for Simultaneous Multi-Threading. SMT is a processor technology
that allows the simultaneous execution of multiple thread contexts within a
single processor core. SMT enabled is the default mode of operation.
There were 2 external 7311-D20 I/O drawers used in this configuration.
Each drawer contained 4 Fiber Channel and 2 Gigbit adapters.
Used one of the integrated gigabit ports, plus all ports of the 6
gigabit adapters, with two adapters placed in the internal slots.
Server specific tuning:
"noatime" and "nodatime" specified when mounting the JFS file systems.
sys.vm.min_free_kbytes = 40960, boot options: "selinux=0 elevator=noop
iommu=vmerge dhash_entries=16777216 ihash_entries=16777216"
The number of NFS threads is 170 (/usr/sbin/rpc.nfsd 170).
F1-F56 exported with no_wdelay(no write delay) option.
Client and Server tuning: Gigabit Ethernet MTU=9000
net.core.rmem_max = 20971520 (4194304 Clients), receive socket buffer size
net.core.rmem_default = 20971520 (4194304 Clients)
net.core.wmem_max = 20971520 (4194304 Clients), send socket buffer size
net.core.wmem_default = 20971520 (4194304 Clients)

First published at SPEC.org on 01-Mar-2005

LG Type	LG1
LG Model	IBM eServer xSeries 335
Number and Type Processors	2 x 2.0GHz Intel Xeon(HT disabled)
Memory Size	1 GB
Operating System	RedHat 9.0
Compiler	gcc (GCC) 3.2.2 20030222 (Red Hat Linux 3.2.2-5)
Compiler Options	-O -DNO_T_TYPES -DUSE_INTTYPES -lm
Network Type	Integrated Broadcom Gigabit
