SPECsfs97_R1.v2 Result

Hewlett-Packard :	hp ProLiant DL580G2 Storage Server
SPECsfs97_R1.v2 =	13319 Ops/Sec (Overall Response Time = 1.44 msec)

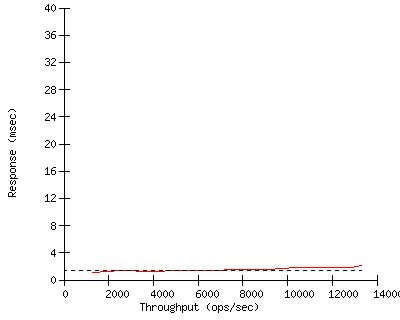

Performance

Throughput (ops/sec)	Response (msec)
1283	1.1
2574	1.4
3881	1.3
5179	1.4
6493	1.4
7808	1.5
9169	1.6
10400	1.8
11760	1.8
12850	1.9
13319	2.1

Configuration

Server Configuration and Availability
Vendor	Hewlett-Packard
Hardware Available	Nov 2003
Software Available	Sept 2004
Date Tested	Aug 2004
SFS License Number	3
Licensee Locations	Richardson, Texas

CPU, Memory and Power

Model Name hp ProLiant DL580G2 Storage Server

Processor Intel Xeon MP @ 2.8 GHz

# of Processors 4 cores, 4 chips, 1 core/chip

Primary Cache 12 KB + 8 KB (I + D)

Secondary Cache 512 KB

Other Cache L3 Cache 2 MB

UPS N/A

Other Hardware 2 HP8b Fibre Channel Switches

Memory Size 8 GB

NVRAM Size 6 GB (2 GB/VA7410 * 3)

NVRAM Type 1 GB mirrored battery backed NVRAM (3 day)

NVRAM Description VA7410 Array controller

Server Software

OS Name and Version Windows(R) Storage Server(tm) 2003 Enterprise Edition

Other Software hp ProLiant Storage Server Service Release 3

File System NTFS

NFS version 2

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 64

Fileset Size 135.3 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	NC7770 (PCI-X 1000Base-T)
Number Networks	2
Number Network Controllers	2
Protocol Type	UDP

Switch Type ExtremeNetworks Summit 7i

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 3

Number of Disks 128

Number of Filesystems 7

File System Creation Ops /q /fs:ntfs /v: /a:16k /x

File System Config chkdsk /l:65536

Disk Controller Integrated Smart Array 5i Plus (Builtin)

# of Controller Type 1

Number of Disks 2

Disk Type 36GB, 10000 rpm Ultra3 SCSI

File Systems on Disks os, pagefile

Special Config Notes Configured in RAID1

Disk Controller Fibre Channel FCA2404

# of Controller Type 2

Number of Disks 63/63

Disk Type 18GB, 15000 rpm (A6191A)

File Systems on Disks F1,F3,F5/F2,F4,F6

Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators	4
Number of Processes per LG	6
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model HP NetServer LT6000r

Number and Type Processors 2x Pentium III Xeon @ 700 MHz\1MB

Memory Size 1 GB

Operating System Linux 2.4.20-24.9smp (RedHat 9.0)

Compiler gcc 3.2.2 20030222

Compiler Options Default

Network Type Intel PRO/1000 T Server Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2 LG1 N1 F1-F6 2 clients/net

3/4 LG1 N2 F1-F6 2 clients/net

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2	LG1	N1	F1-F6	2 clients/net
3/4	LG1	N2	F1-F6	2 clients/net

Other Notes

The server has 2 FC controllers. One to each FC switch. Each VA7410 has 2 controllers, with 1 FC
port from each controller attached to each switch, so that controller 1 is connected to switch 1,
and controller 2 is connected to switch 2. There are 3 VA7410s total. Each VA7410 has 42 disks
and 1024 MB NVRAM per controller, which is mirrored between the controllers. The VA7410s are using
RAID 0+1. Disk scrubbing is disabled. Each VA7410 has 2 LUNs. LUN 1 is striped across 21 disks.
LUN 2 is striped across the other 21 disks. Each of the 6 LUNs contained 1 file system. Each file
system was formatted with a 16kB Allocation size.
"File System Creation Ops" = /q /fs:ntfs /v: /a:16k /x
/q -- Performs a quick format.
/fs:ntfs -- Specifies the type of the file system (NTFS).
/v: -- Specifies the volume label. (Blank in this case)
/a:16k -- Sets the allocation unit size.
/x -- Forces the volume to dismount first if necessary.
"File System Config" = chkdsk /l:65536
/l:65536 -- Changes the log file size to the specified number of kilobytes.
Each File System had 1 NFS export that was shared with rw access, root allow, and anonymous
access=yes. Each NFS share used the NFSONLY option. A local hosts file was on the servers and
clients. HyperThreading disabled in BIOS. Interrupt Filter used to set interrupt affinity of NIC1
to CPU0 and NIC2 to CPU1.
The following registry tunes were used (all values in HEX):
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem]
"NtfsDisable8dot3NameCreation"=dword:00000001
"NtfsMemoryUsage"=dword:00000002
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters]
"NumTcbTablePartitions"=dword:00000008
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\Interfaces\{INTERFACE NUMBER}]
"TcpAckFrequency"=dword:0000000d
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management]
"PagedPoolSize"=dword:ffffffff
"LargeSystemCache"=dword:00000000
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Executive]
"AdditionalDelayedWorkerThreads"=dword:00000010
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\RpcXdr\Parameters]
"DefaultNumberOfWorkerThreads"=dword:00000040
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NfsSvr\Parameters]
"OptimalReads"=dword:00000001
"RdWrHandleLifeTime"=dword:0000000a
"RdWrNfsReadHandlesLifeTime"=dword:0000000a
"RdWrNfsHandleLifeTime"=dword:0000003c
"RdWrThreadSleepTime"=dword:0000003c
"SecureHandleLevel"=dword:00000000
"NfsHandlesCacheSizeLowWatermark"=dword:003d08ce
"NfsHandlesCacheSizeMax"=dword:003d0900
"NtfsHandlesCacheSizeLowWatermark"=dword:000249be
"NtfsHandlesCacheSizeMax"=dword:000249f0
"FileHandleCacheSizeInMB"=dword:3de00000
"LockFileHandleCacheInMemory"=dword:00000001
"MaxIcbNfsReadHandlesCacheSize"=dword:00001f40
hp ProLiant Storage Server Service Release 3 includes the latest security
patches as well as the latest drivers for the platform.

First published at SPEC.org on 24-Jan-2005

LG Type	LG1
LG Model	HP NetServer LT6000r
Number and Type Processors	2x Pentium III Xeon @ 700 MHz\1MB
Memory Size	1 GB
Operating System	Linux 2.4.20-24.9smp (RedHat 9.0)
Compiler	gcc 3.2.2 20030222
Compiler Options	Default
Network Type	Intel PRO/1000 T Server Adapter
