SPECsfs97_R1.v3 Result

EMC Corp. :	Celerra NS600 Failover Cluster (1FS, primary/secondary, 8GB BE)
SPECsfs97_R1.v3 =	25656 Ops/Sec (Overall Response Time = 2.05 msec)

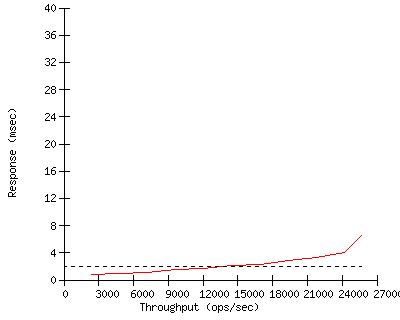

Performance

Throughput (ops/sec)	Response (msec)
2385	0.8
4807	0.9
7181	1.1
9630	1.5
12031	1.7
14455	2.1
16936	2.3
19350	2.8
21784	3.3
24196	4.0
25656	6.5

Configuration

Server Configuration and Availability
Vendor	EMC Corp.
Hardware Available	April 2003
Software Available	June 2003
Date Tested	April 2003
SFS License Number	47
Licensee Locations	Hopkinton, MA

CPU, Memory and Power

Model Name Celerra NS600 Failover Cluster (1FS, primary/secondary, 8GB BE)

Processor 2GHz Pentium 4

# of Processors 2

Primary Cache 16KBI+16KBD on chip

Secondary Cache 512KB(I+D)

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 4 GB

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version Dart 5.1.15.99

Other Software Redhat Linux 7.2 on Control Station

File System N/A

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 4

Fileset Size 253.1 GB

Network Subsystem
Network Type	Jumbo Gigabit Ethernet
Network Controller Desc.	Gigabit Ethernet Controller
Number Networks	1
Number Network Controllers	2
Protocol Type	TCP

Switch Type Cisco 6509 Gbit Switch (Jumbo)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4 [2 per Storage Processor, 2 SPs]

Number of Disks 135

Number of Filesystems 1

File System Creation Ops N/A

File System Config striped (8KB element size), across 123 disk (41 LUNs)

Disk Controller Integrated 2Gb Fibre Channel

# of Controller Type 4 [2 per SP]

Number of Disks 135 (dual ported)

Disk Type Seagate ST373405 73GB 10K RPM

File Systems on Disks OS (5), UxFS Log (6), Filesystem fs1 (123), 1 unused

Special Config Notes 4GB cache per SP on storage array. 2048 MB mirrored write cache per SP. See notes below.

Load Generator (LG) Configuration
Number of Load Generators	6
Number of Processes per LG	24
Biod Max Read Setting	5
Biod Max Write Setting	5

LG Type LG1

LG Model Sun Sparc 220R

Number and Type Processors 2 x 450 MHz Sparc

Memory Size 512 MB

Operating System Solaris 2.8

Compiler Sun Forte 6.2

Compiler Options None

Network Type Intraserver Gbe

LG Type LG2

LG Model Sun Sparc 420R

Number and Type Processors 2 x 450 MHz Sparc

Memory Size 1 GB

Operating System Solaris 2.8

Compiler Sun Forte 6.2

Compiler Options None

Network Type Intraserver Gbe

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1..2 LG1 1 /fs1../fs1 N/A

3..6 LG2 1 /fs1../fs1 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1..2	LG1	1	/fs1../fs1	N/A
3..6	LG2	1	/fs1../fs1	N/A

Other Notes

param ufs inoBlkHashSize=170669 (inode block hash size)
param ufs inoHashTableSize=1218761 (inode hash table size)
param ufs updateAccTime=0 (disable access-time updates)
param nfs withoutCollector=1 (enable NFS-to-CPU thread affinity)
param file prefetch=0 (disable Dart read prefetch)
param kernel maxStrToBeProc=16 (no. of network streams to process at once)
file initialize nodes=980000 dnlc=1056000 (no. of inodes, no. of dirctory name lookup cache entries)
nfs start openfiles=722462 nfsd=4 (no. of open files and 4 NFS daemons)
bcm cge0 offload (offload IP checksum calc. to the NIC for network controller 0)
bcm cge1 offload (offload IP checksum calc. to the NIC for network controller 1)
bcm cge0 packetburst=16 (maximum no. of packets to be processed at once)
bcm cge1 packetburst=16 (maximum no. of packets to be processed at once)
setiter num=8 (8 consecutive iterations of network packets processing)
Storage array notes:
The storage array was configured into 43 RAID-0 groups of 3 spindles each (129 total disk spindles, log+data)
Each RAID group was striped with an 8KB size stripe. Two of the 43 LUN
groups were used for the ufs logs. Each of the 41 file data LUNs was 30 GB.
The ufs logs were 2GB each.
The storage array has dual storage processor units that work as
an active-active failover pair. The mirrored write cache is backed up
with a battery unit capable of saving the write cache to disk prior to
a power failure. In the event of a storage array failure, the second
storage processor unit is capable of saving all state that was managed
by the first (and vise-versa), even with a simultaneous power failure.
When one of the storage processors or battery units are off-line, the
system turns off the write cache and writes directly to disk before
acknowledging any write operations.
The length of time the battery can support the retention of data is 2
minutes - that is sufficient to write all necessary data twice.
Storage processor A could have written 99% of its memory to disk and
then fail. In that case storage processor B has enough battery to
store its copy of A's data as well as its own.

First published at SPEC.org on 29-Apr-2003

LG Type	LG1
LG Model	Sun Sparc 220R
Number and Type Processors	2 x 450 MHz Sparc
Memory Size	512 MB
Operating System	Solaris 2.8
Compiler	Sun Forte 6.2
Compiler Options	None
Network Type	Intraserver Gbe

LG Type	LG2
LG Model	Sun Sparc 420R
Number and Type Processors	2 x 450 MHz Sparc
Memory Size	1 GB
Operating System	Solaris 2.8
Compiler	Sun Forte 6.2
Compiler Options	None
Network Type	Intraserver Gbe
