SPECsfs97_R1.v2 Result

Hewlett Packard :	rp2470
SPECsfs97_R1.v2 =	17112 Ops/Sec (Overall Response Time = 1.48 msec)

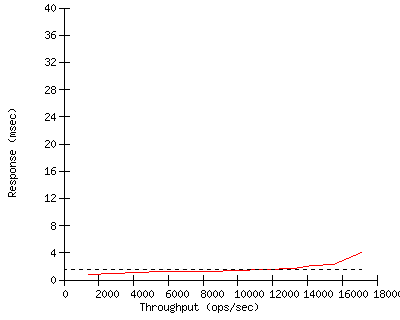

Performance

Throughput (ops/sec)	Response (msec)
1394	0.8
2834	1.0
4225	1.1
5624	1.2
7042	1.3
8470	1.3
9870	1.4
11585	1.5
13204	1.7
14268	2.1
15525	2.3
17112	4.1

Configuration

Server Configuration and Availability
Vendor	Hewlett Packard
Hardware Available	July 2002
Software Available	July 2002
Date Tested	July 2002
SFS License Number	3
Licensee Locations	Richardson, Texas

CPU, Memory and Power

Model Name rp2470

Processor PA-8700 @ 750 Mhz

# of Processors 2

Primary Cache 768 KB Inst, 1.5 MB data

Secondary Cache N/A

Other Cache N/A

UPS N/A

Other Hardware 2 Brocade fc Silkworm 3800

Memory Size 8 GB

NVRAM Size 6 GB (1 GB / VA7400)

NVRAM Type VA7400

NVRAM Description Built into VA7400

Server Software

OS Name and Version HP-UX 11.11

Other Software N/A

File System JFS

NFS version 2

Server Tuning

Buffer Cache Size Dynamic with ceiling at 60 percent

# NFS Processes 192

Fileset Size 161.5 GB

Network Subsystem
Network Type	HP A4926A 1000Base-SX
Network Controller Desc.	Gigabit Adapter
Number Networks	2
Number Network Controllers	2
Protocol Type	UDP

Switch Type HP Procurve 4000M

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 3

Number of Disks 253

Number of Filesystems 96

File System Creation Ops mkfs -F vxfs -o logsize=2048,bs=8k

File System Config N/A

Disk Controller SCSI C896 Ultra wide LVD

# of Controller Type 1

Number of Disks 1

Disk Type Seagate 36G Model ST336704LC

File Systems on Disks os, swap, dump

Special Config Notes N/A

Disk Controller HP XL2 Fibre Channel adaptor A6795A

# of Controller Type 1

Number of Disks 126

Disk Type 36 GB, FC, 15K RPM (A6193A)

File Systems on Disks F1,F3,F5,F9....F95

Special Config Notes See notes below.

Disk Controller HP XL2 Fibre Channel adaptor A6795A

# of Controller Type 1

Number of Disks 126

Disk Type 36 GB, FC, 15K RPM (A6193A)

File Systems on Disks F2, F4,F6,F8....F96

Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators	16
Number of Processes per LG	6
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type A-Class

LG Model A-180C

Number and Type Processors PA-7300LC @ 180 MHz

Memory Size 256 MB

Operating System HP-UX 11.11

Compiler SPEC CD binaries. (Vers: HP92453-01 A.11.01.00 HP C Compiler)

Compiler Options SPEC CD defaults.

Network Type HP A4926A 1000Base-SX

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1..8 LG1 N1 F1,F2..F6/F7,F8..F12/...F43,F44..F48 8 clients/net

9..16 LG1 N2 F49,F50..F54/F55,F56..F60/...F91,F92..F96 8 clients/net

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1..8	LG1	N1	F1,F2..F6/F7,F8..F12/...F43,F44..F48	8 clients/net
9..16	LG1	N2	F49,F50..F54/F55,F56..F60/...F91,F92..F96	8 clients/net

Other Notes

Configuration notes.
.. Server is an rp2470 and contains:
.. 2cpus, 8GB ram, 2 FC controllers, 2 Gigabit NICs
.. Server has 2 fibre channel controllers. One goes
.. to each FC switch. There are 2 FC switches.
.. Each VA7400 has 2 FC ports attached to the same switch.
.. There are 3 VA7400s connected to each FC switch.
.. Each VA7400 contains: 42 disks, 1024 MB NVRAM. Both FC ports in use.
.. VA7400s are using RAID 0/1. Disk scrubbing is disabled.
.. Each VA7400 has 16 LUNs. LUNs 1,2..8 are striped across 21 disks.
.. LUNs 9,10..16 are striped across the other 21 disks.
System tuneables.
.. bufcache_hash_locks=4096, dbc_min_pct=20
.. dbc_max_pct=60, dnlc_hash_locks=4096, scsi_max_qdepth=90
.. ftable_hash_locks=4096, max_thread_proc=1000
.. maxswapchunks=16384, ncsize=2100000, nfile=16384
.. ninode=2100000, nkthread=10000.
.. nstrpty=200, vnode_hash_locks=4096
.. vps_pagesize=4k,max_fcp_reqs=1024
.. vx_fancyra_enable=1, create_fastlinks=1.
.. All Fibre channels are in 1 Gbit mode.
Filesystem tunes:
.. read_unit_io=8192,read_pref_io=8192,write_unit_io=8192,write_pref_io=8192,
.. max_buf_data_size=8192,read_nstream=1,write_nstream=100,max_diskq=104857600

First published at SPEC.org on 06-Aug-2002
