SPECsfs97_R1.v2 Result

Hewlett Packard :	rp7410
SPECsfs97_R1.v2 =	36352 Ops/Sec (Overall Response Time = 2.88 msec)

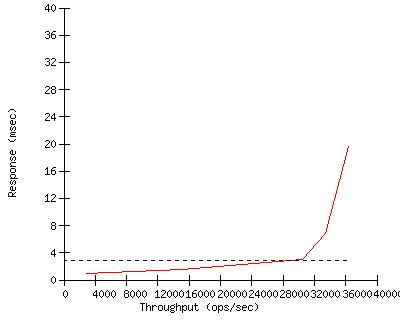

Performance

Throughput (ops/sec)	Response (msec)
2915	0.9
5981	1.1
8969	1.2
12021	1.4
15061	1.6
18171	1.9
21191	2.1
24320	2.4
27327	2.7
30439	3.0
33438	6.8
36352	19.6

Configuration

Server Configuration and Availability
Vendor	Hewlett Packard
Hardware Available	March 2002
Software Available	March 2002
Date Tested	March 2002
SFS License Number	3
Licensee Locations	Richardson, Texas

CPU, Memory and Power

Model Name rp7410

Processor PA-8700 @ 750 Mhz

# of Processors 8

Primary Cache 768 KB Inst, 1.5 MB data

Secondary Cache N/A

Other Cache N/A

UPS N/A

Other Hardware 3 Brocade fc Silkworm 3800

Memory Size 16 GB

NVRAM Size 9 GB (1 GB / VA7400)

NVRAM Type VA7400

NVRAM Description Built into VA7400

Server Software

OS Name and Version HP-UX 11.11

Other Software N/A

File System JFS

NFS version 2

Server Tuning

Buffer Cache Size Dynamic with ceiling at 42 percent

# NFS Processes 1

Fileset Size 348.2 GB

Network Subsystem
Network Type	HP A4926A 1000Base-SX
Network Controller Desc.	Gigabit Adapter
Number Networks	6
Number Network Controllers	6
Protocol Type	TCP

Switch Type HP Procurve 4000M

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 10

Number of Disks 379

Number of Filesystems 144

File System Creation Ops mkfs -F vxfs -o logsize=2048,bs=8k

File System Config N/A

Disk Controller SCSI Ultra160 LVD A6793A

# of Controller Type 1

Number of Disks 1

Disk Type Seagate 18.2G Model ST318404LC

File Systems on Disks os, swap, dump

Special Config Notes N/A

Disk Controller HP Fibre Channel adaptor A6795A

# of Controller Type 9

Number of Disks 42

Disk Type 36 GB, FC, 15K RPM (A6193A)

File Systems on Disks F1,F10,F19...F136 / F2,F11,F20..F137...

Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators	48
Number of Processes per LG	18
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type A-Class

LG Model A-180C

Number and Type Processors PA-7300LC @ 180 MHz

Memory Size 256 MB

Operating System HP-UX 11.11

Compiler SPEC CD binaries. (Vers: HP92453-01 A.11.01.00 HP C Compiler)

Compiler Options SPEC CD defaults.

Network Type HP A4926A 1000Base-SX

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1..8 LG1 N1 F1,F2..F18/F19,F20..F37/..F127,F128..F144 8 clients/net

9..16 LG1 N2 F1,F2..F18/F19,F20..F37/..F127,F128..F144 8 clients/net

17..24 LG1 N3 F1,F2..F18/F19,F20..F37/..F127,F128..F144 8 clients/net

25..32 LG1 N4 F1,F2..F18/F19,F20..F37/..F127,F128..F144 8 clients/net

33..40 LG1 N5 F1,F2..F18/F19,F20..F37/..F127,F128..F144 8 clients/net

41..48 LG1 N6 F1,F2..F18/F19,F20..F37/..F127,F128..F144 8 clients/net

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1..8	LG1	N1	F1,F2..F18/F19,F20..F37/..F127,F128..F144	8 clients/net
9..16	LG1	N2	F1,F2..F18/F19,F20..F37/..F127,F128..F144	8 clients/net
17..24	LG1	N3	F1,F2..F18/F19,F20..F37/..F127,F128..F144	8 clients/net
25..32	LG1	N4	F1,F2..F18/F19,F20..F37/..F127,F128..F144	8 clients/net
33..40	LG1	N5	F1,F2..F18/F19,F20..F37/..F127,F128..F144	8 clients/net
41..48	LG1	N6	F1,F2..F18/F19,F20..F37/..F127,F128..F144	8 clients/net

Other Notes

Configuration notes.
.. Server is an rp7410 and contains:
.. 8cpus, 16GB ram, 9 FC controllers, 6 Gigabit NICs
.. Server has 9 fibre channel controllers. Three go
.. to each FC switch. There are 3 FC switches.
.. Each VA7400 has 2 FC ports attached to the same switch.
.. There are 3 VA7400s connected to each FC switch.
.. Each VA7400 contains: 42 disks, 1024 MB NVRAM. Both FC ports in use.
.. VA7400s are using RAID 0/1. Disk scrubbing is disabled.
.. Each VA7400 has 16 LUNs. LUNs 1,2..8 are striped across 21 disks.
.. LUNs 9,10..16 are striped across the other 21 disks.
System tuneables.
.. bufcache_hash_locks=4096, dbc_min_pct=10
.. dbc_max_pct=42, dnlc_hash_locks=4096, scsi_max_qdepth=90
.. ftable_hash_locks=4096, max_thread_proc=1000
.. maxswapchunks=16384, ncsize=2100000, nfile=16384
.. ninode=2100000, nkthread=10000, "nfsd" is multi-threaded.
.. nstrpty=200, vnode_hash_locks=4096
.. vps_pagesize=4k,max_fcp_reqs=1024, netmemmax=-1
.. vx_fancyra_enable=1, create_fastlinks=1, vx_ninode=2100000
.. All Fibre channels are in 1 Gbit mode.
Filesystem tunes:
.. read_unit_io=8192,read_pref_io=8192,write_unit_io=8192,write_pref_io=8192,
.. max_buf_data_size=8192,read_nstream=1,write_nstream=100,max_diskq=104857600

First published at SPEC.org on 30-Apr-2002
