SPECsfs97_R1.v3 Result

IBM Corporation :	IBM eServer pSeries 620 Model 6F1
SPECsfs97_R1.v3 =	19843 Ops/Sec (Overall Response Time = 1.63 msec)

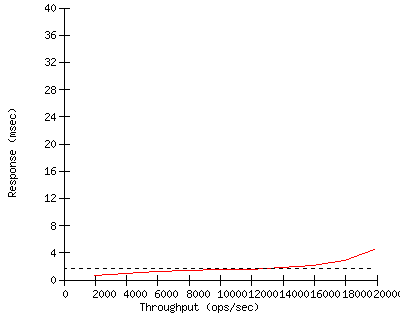

Performance

Throughput (ops/sec)	Response (msec)
1972	0.6
3926	0.9
5915	1.2
7917	1.4
9904	1.5
11906	1.6
13910	1.9
15904	2.2
17898	2.8
19843	4.5

Configuration

Server Configuration and Availability
Vendor	IBM Corporation
Hardware Available	April 2002
Software Available	April 2002
Date Tested	March 2002
SFS License Number	11
Licensee Locations	Austin, Texas

CPU, Memory and Power

Model Name IBM eServer pSeries 620 Model 6F1

Processor 750MHz RS64 IV

# of Processors 4

Primary Cache 128KBI+128KBD on chip

Secondary Cache 8MB(I+D) off chip

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 32 GB

NVRAM Size 96 MB (3 x 32MB)

NVRAM Type 32MB DRAM daughter card on SerialRAID adapter

NVRAM Description 7-day battery; cache bypass on battery failure

Server Software

OS Name and Version AIX 5L V5.1 (64-bit)

Other Software N/A

File System JFS and Enhanced JFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 1

Fileset Size 188.6 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit
Network Controller Desc.	IBM Gigabit Ethernet-SX PCI Adapter
Number Networks	2 (N1, N2)
Number Network Controllers	2
Protocol Type	UDP

Switch Type Alteon ACEswitch 180 (1)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4

Number of Disks 97

Number of Filesystems 84 (F1-F84)

File System Creation Ops default

File System Config See Other Notes

Disk Controller Wide/Ultra-2 SCSI I/O Controller

# of Controller Type 1

Number of Disks 1

Disk Type 9.1GB 7200rpm 16-bit SCSI

File Systems on Disks OS, page space

Special Config Notes N/A

Disk Controller IBM SSA 160 SerialRAID Adapter

# of Controller Type 3

Number of Disks 96

Disk Type 9.1GB 7200rpm SSA (Type DGHC)

File Systems on Disks F1-F28, F29-F56, F57-F84

Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators	2
Number of Processes per LG	42
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model RS/6000 Model 44P-270

Number and Type Processors 4 x 375MHz POWER3-II

Memory Size 1.5 GB

Operating System AIX 4.3.3 plus APAR IY22024

Compiler N/A, SFS97_R1 pre-compiled binaries

Compiler Options N/A

Network Type IBM Gigabit Ethernet-SX PCI Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1,F29,F57,F2,F30,F58,F3,F31,F59,F4,F32,F60,...,F14,F42,F70 N/A

2 LG1 N2 F15,F43,F71,F16,F44,F72,F17,F45,F73,F18,F46,F74,...,F28,F56,F84 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1,F29,F57,F2,F30,F58,F3,F31,F59,F4,F32,F60,...,F14,F42,F70	N/A
2	LG1	N2	F15,F43,F71,F16,F44,F72,F17,F45,F73,F18,F46,F74,...,F28,F56,F84	N/A

Other Notes

There are 32 disks (28 filesystems) per disk controller. 8 disks per
logical disk volume (2 logical disk volumes per disk controller): 1 disk
contains filesystem logs, and each of the other 7 contain filesystem data.
The size of each filesystem log is 256MB.
JFS used for the OS, Enhanced JFS used for the test filesystems (F1-F84).
SSA adapters/disks configured in JBOD mode with fast-write enabled.
Using jumbo frames (9000-byte MTU) over Gigabit Ethernet.
Server tuning: Gigabit Ethernet adapter jumbo_frames=yes, hardware
multithreading enabled (bosdebug -H on)
Client tuning: Gigabit Ethernet adapter jumbo_frames=yes
The number of NFS daemons (nfsd threads) is dynamic, with an upper bound of 3891 (operating system default value).
APAR IY28102 (April 2002 release) applied on AIX 5L V5.1.

First published at SPEC.org on 16-Apr-2002

LG Type	LG1
LG Model	RS/6000 Model 44P-270
Number and Type Processors	4 x 375MHz POWER3-II
Memory Size	1.5 GB
Operating System	AIX 4.3.3 plus APAR IY22024
Compiler	N/A, SFS97_R1 pre-compiled binaries
Compiler Options	N/A
Network Type	IBM Gigabit Ethernet-SX PCI Adapter
