SPECsfs97_R1.v3 Result

Hewlett Packard :	HP Surestore NAS-105LC Failover Cluster
SPECsfs97_R1.v3 =	21343 Ops/Sec (Overall Response Time = 4.26 msec)

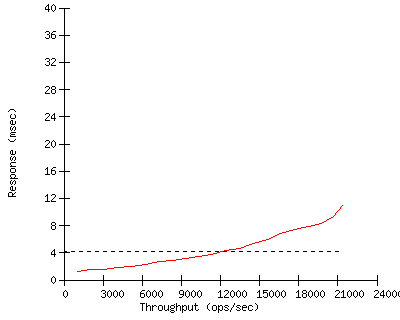

Performance

Throughput (ops/sec)	Response (msec)
1003	1.2
2042	1.5
3067	1.6
4115	1.8
5179	2.0
6213	2.3
7285	2.7
8305	2.8
9337	3.1
10298	3.5
11330	3.8
12361	4.4
13463	4.7
14561	5.4
15610	5.9
16605	6.8
17637	7.4
18710	7.8
19732	8.3
20697	9.3
21343	11.0

Configuration

Server Configuration and Availability
Vendor	Hewlett Packard
Hardware Available	Jan 2002
Software Available	Jan 2002
Date Tested	Jan 2002
SFS License Number	3
Licensee Locations	Richardson, Texas

CPU, Memory and Power

Model Name HP Surestore NAS-105LC Failover Cluster

Processor PA-8600 @ 550 Mhz

# of Processors 8 (4 processors/node)

Primary Cache 512KB Inst, 1 MB data

Secondary Cache N/A

Other Cache N/A

UPS N/A

Other Hardware Brocade fibre channel Silkworm 2800

Memory Size 32 GB (16 GB/node)

NVRAM Size 2 GB (1 GB/VA7400)

NVRAM Type VA7400

NVRAM Description Built into VA7400

Server Software

OS Name and Version HP-UX 11.11

Other Software N/A

File System JFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic with ceiling at 62 percent

# NFS Processes 1

Fileset Size 208.0 GB

Network Subsystem
Network Type	PCI 1000Base-SX Adapter.
Network Controller Desc.	Gigabit Adapter
Number Networks	2
Number Network Controllers	4
Protocol Type	TCP

Switch Type Gigabit HP Procurve 4000M

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 6

Number of Disks 86

Number of Filesystems 16

File System Creation Ops mkfs -F vxfs -o logsize=2048,bs=8k

File System Config N/A

Disk Controller Ultra2 Wide SCSI (builtin)

# of Controller Type 2

Number of Disks 2

Disk Type HP-C4476 18.2GB 10k RPM

File Systems on Disks os, swap, dump

Special Config Notes N/A

Disk Controller PCI FiberChannel A3740A Shortwave

# of Controller Type 2

Number of Disks 42

Disk Type 36 GB, FC, 15K RPM

File Systems on Disks F1,F2..F8

Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave

# of Controller Type 2

Number of Disks 42

Disk Type 36 GB, FC, 15K RPM

File Systems on Disks F9,F10..F16

Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators	16
Number of Processes per LG	16
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type A-Class

LG Model A-180C

Number and Type Processors PA-7300LC @ 180 MHz

Memory Size 128 MB

Operating System HP-UX 11.00

Compiler HP ANSI C compiler

Compiler Options +O2 -Ae

Network Type PCI 100 BaseT

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1..8 LG1 N1 F1,F2..F16 / F1,F2..F16 / ...

9..16 LG1 N2 F1,F2..F16 / F1,F2..F16 / ...

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1..8	LG1	N1	F1,F2..F16 / F1,F2..F16 / ...
9..16	LG1	N2	F1,F2..F16 / F1,F2..F16 / ...

Other Notes

Configuration notes.
.. Two nodes. Each node is an rp5470 and contains:
.. 4cpus, 16GB ram, 2 FC controllers, 2 Gigabit NICs
.. Each node has 2 virtual IP addresses. One is for
.. network #1 and the other is for network #2
.. The cluster has MC Service Guard installed and
.. enables automatic, transparent failover. The
.. nodes are in an active-active configuration.
.. Each node has 2 fibre channel controllers. One
.. is connected to FC switch #1, the second is
.. connected to FC switch #2. Each VA7400 has 2 FC ports.
.. One port is connected to FC switch #1 and the second is
.. connected to FC switch #2. All filesystems/LUNs can
.. be directly accessed by either node.
.. VA7400 contains: 42 disks, 1 GB NVram, 2 FC ports.
.. VA7400 is using RAID 0/1.
.. Each VA7400 has 8 LUNs. LUNs 1,2,3,4 are striped across 21 disks.
.. LUNs 5,6,7,8 are striped across the other 21 disks in the array.
System tuneables.
.. bufcache_hash_locks=4096, dbc_min_pct=40
.. dbc_max_pct=62, dnlc_hash_locks=4096, scsi_max_qdepth=90
.. ftable_hash_locks=4096, max_thread_proc=1000
.. maxswapchunks=16384, ncsize=12000, nfile=16384
.. ninode=800000, nkthread=10000, nproc=4096
.. nstrpty=200, vnode_hash_locks=4096
.. nc_hash_size=800000, vps_pagesize=4k,max_fcp_reqs=1024
.. vx_fancyra_enable=1, create_fastlinks=1, vx_ninode=800000
.. Number of nfs threads is dynamic.
Filesystem tunes:
.. read_unit_io=8192,read_pref_io=8192,write_unit_io=8192,write_pref_io=8192,
.. max_buf_data_size=8192,read_nstream=1,write_nstream=1000,max_diskq=104857600

First published at SPEC.org on 19-Feb-2002
