SPECsfs97_R1.v3 Result

Network Appliance, Inc. :	F880c Failover Cluster (TCP, 100x36GB FCAL, 2xGbE)
SPECsfs97_R1.v3 =	28596 Ops/Sec (Overall Response Time = 1.89 msec)

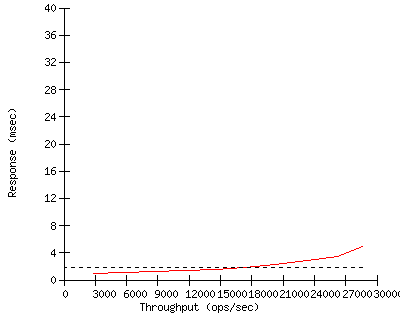

Performance

Throughput (ops/sec)	Response (msec)
2866	1.0
5740	1.1
8665	1.2
11521	1.4
14520	1.6
17331	1.9
20318	2.3
23293	2.8
26237	3.5
28596	4.9

Configuration

Server Configuration and Availability
Vendor	Network Appliance, Inc.
Hardware Available	July 2001
Software Available	July 2001
Date Tested	September 2001
SFS License Number	33
Licensee Locations	Sunnyvale, CA

CPU, Memory and Power

Model Name F880c Failover Cluster (TCP, 100x36GB FCAL, 2xGbE)

Processor 866-MHz Intel Pentium III Coppermine

# of Processors 4 cores, 4 chips, 1 core/chip (2 per node)

Primary Cache 16 KB I + 16 KB D

Secondary Cache 256 KB on-die

Other Cache N/A

UPS none

Other Hardware X1920A cluster adapter card (1 per node - see notes)

Memory Size 6144 MB (3072 MB per node)

NVRAM Size 256 MB (128 MB per node)

NVRAM Type DIMMs on PCI cards

NVRAM Description 15-day battery-backed shelf-life

Server Software

OS Name and Version Data ONTAP 6.1.1

Other Software Cluster Option

File System WAFL

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 276.2 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	X1025C PCI adapter card
Number Networks	1 (N1)
Number Network Controllers	2 (1 per node)
Protocol Type	TCP

Switch Type 4 Netgear 518S, 1 Extreme Black Diamond (N1)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4

Number of Disks 100

Number of Filesystems 2

File System Creation Ops default

File System Config 6 RAID-groups of 8 disks each

Disk Controller X2044A FC-AL adapter card (256 KB RAM standard)

# of Controller Type 4

Number of Disks 25/25/25/25

Disk Type X234A 36GB FC-AL

File Systems on Disks F1/F1/F2/F2

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	30
Number of Processes per LG	4
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Intel ISP1100 Internet Server Platform

Number and Type Processors 1x700-MHz Pentium III

Memory Size 512 MB

Operating System Linux 2.2.18 (Red Hat 6.2)

Compiler gcc version egcs-2.91.66

Compiler Options -static -O -DNO_T_TYPES -DUSE_INTTYPES

Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../30 LG1 N1 F1,F2 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../30	LG1	N1	F1,F2	N/A

Other Notes

NetApp's embedded operating system processes NFS requests from the network layer without any NFS daemons, and uses non-volatile memory to improve performance.
The tested system was a failover cluster comprised of two nodes joined by a cluster interconnect.
The cluster option was licensed and enabled.
Each disk controller had two FC-AL loops, one primary and one secondary. Only the primary loops were active.
Each node was the owner of one filesystem, but the disks were dual-attached so that, in the event of a fault, they could be controlled by the other node via a secondary loop.
The F1 filesystem was striped across both primary loops of the first node. The F2 filesystem was striped across both primary loops of the second node.
Each filesystem was composed of six RAID-4 groups; each RAID-group was composed of 7 data disks and 1 parity disk. Four spare disks were present.
Server tunings:
options minra 1 -- minimize file read-ahead
options raid.scrub.enable 0 -- disable periodic RAID scrubs for reproducibility
Clients were attached in groups of 7 or 8 into the four Netgear switches.
Each of the Netgear switches was uplinked into the Black Diamond switch.
NetApp is a registered trademark and "Data ONTAP", "Network Appliance", and WAFL are trademarks of Network Appliance, Inc. in the United States and other countries.
All other trademarks belong to their respective owners and should be treated as such.

First published at SPEC.org on 26-Sep-2001

LG Type	LG1
LG Model	Intel ISP1100 Internet Server Platform
Number and Type Processors	1x700-MHz Pentium III
Memory Size	512 MB
Operating System	Linux 2.2.18 (Red Hat 6.2)
Compiler	gcc version egcs-2.91.66
Compiler Options	-static -O -DNO_T_TYPES -DUSE_INTTYPES
Network Type	integrated Intel Pro/100+ 100BASE-T
