SPECsfs2008_nfs.v3 Result

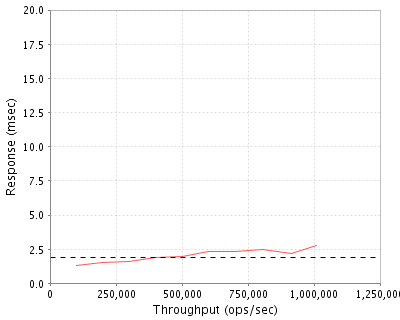

Throughput (ops/sec) Response (msec) 100050 1.3 200409 1.5 300817 1.6 401085 1.9 500903 2.0 601892 2.3 704199 2.3 803654 2.5 913094 2.2 1007611 2.8

Tested By	Huawei
Product Name	Huawei OceanStor 9000 Storage System, 20 nodes
Hardware Available	July 2013
Software Available	October 2013
Date Tested	October 2013
SFS License Number	3175
Licensee Locations	Chengdu Research Institute U9 Huawei Chengdu Base, No.1899, Xiyuan Avenue, Hi-tech Western District, Chengdu, Sichuan Province, CHINA

The Huawei OceanStor 9000 is a Big Data storage product. Applicable industries include broadcasting media, satellite mapping, genetic research, energy exploration, scientific research and education. With a distributed architecture, the OceanStor 9000 supports seamless scale-out from 3 to a maximum of 288 nodes. All nodes are symmetrically arranged in the OceanStor 9000. The OceanStor 9000 supports on-demand hitless scale-out, which increases capacity and performance linearly. The OceanStor 9000 offers up to 40 PB in a single file system. Such massive scalability helps maximally reduce your CAPEX and TCO while enabling the OceanStor 9000 to optimally adapt to your changing storage requirements.

Item No	Qty	Type	Vendor	Model/Name	Description
1	20	Storage Node	Huawei	OceanStor 9000 P Node	OceanStor 9000 high performance node(P Node), including slots for 25 2.5 inch storage devices.
2	120	200GB SSD	Huawei	Disk drive	HSSD 200GB SAS disk solid state Drive(2.5").
3	380	900GB SAS Disk	Huawei	Disk drive	900GB 10K RPM SAS Disk Drive(2.5").
4	1	10GE network switch	Huawei	Cloud Engine 12800 switch	Huawei Cloud Engine switch with 400 10GE ports

OS Name and Version	Huawei OceanStor 9000 V100R001C00
Other Software	Huawei OceanStor Integrated Storage Management-N V100R001C00
Filesystem Software	WushanFS

Name	Value	Description
nfsd number	64	The number of NFS threads has been increased to 64 by editing /proc/fs/nfsd/work_threads.
NFS_MOUNTD_THREAD_NUM	8	The maximum number of concurrent mount threads the server can handle simultaneously.
tcp_mem	94371840	Socket buffer sizes for the 10GE ports.
tcp_rmem	94371840	Socket receive buffer sizes for the 10GE ports.
tcp_wmem	47185920	Socket send buffer sizes for the 10GE ports.

Server Tuning Notes

None

Description	Number of Disks	Usable Size
200GB SSDs	120	21.8 TB
900GB SAS drives	380	308.8 TB
Total	500	330.5 TB

Number of Filesystems	1
Total Exported Capacity	338480 GB
Filesystem Type	WushanFS
Filesystem Creation Options	Default
Filesystem Config	Reed-Solomon (8 + 1)
Fileset Size	117201.5 GB

The system contains 20 P Nodes. Each has 6 200GB SSDs and 19 900GB SAS disks. The WiseTier software dynamically recognizes hot files and migrates them between the SSDs and the SAS disks; hotspots are stored on the SSDs and colder files on the SAS disks. File data for a given file is striped across 9 P Nodes. Reed-Solomon erasure coding (8 + 1) is the default protection level for an OceanStor 9000 20-node system. +2 and +3 protection levels are also available.

Item No	Network Type	Number of Ports Used	Notes
1	10 Gigabit Ethernet	40	There are 2 10GE network ports used per OceanStor 9000 P Node for internal connection, with MTU size 9000.
2	10 Gigabit Ethernet	20	There is 1 10GE network port used per OceanStor 9000 P Node for external connection, with MTU size 1500.

Network Configuration Notes

All network interfaces were connected to the 10GE network switch(Huawei CE12800).

For each client, 4 10GE interfaces are bonded to one port, with MTU size 1500.

Item No	Qty	Type	Description	Processing Function
1	40	CPU	Intel Six-Core Xeon Processor E5-2420, 1.9GHz, 15MB L3 cache	WushanFS, NFS, TCP/IP

Processing Element Notes

Each of the OceanStor 9000 P Nodes has 2 physical processors, and each processor has 6 physical cores. Hyperthreading is enabled, yielding 24 hardware threads per node.

Description	Size in GB	Number of Instances	Total GB	Nonvolatile
OceanStor 9000 P Node System Memory	96	20	1920	V
NVDIMM Non-volatile Memory on PCIe adapter, used to provide stable storage for writes not yet committed to disk.	2	20	40	NV
Grand Total Memory Gigabytes			1960

Memory Notes

Each OceanStor 9000 P Node has main memory for the operating system and filesystem data. A separate, NVDIMM module is used to provide stable storage for writes not yet committed to disk.

The NVDIMM in each OceanStor 9000 P Node stores and journals writes until they can be flushed to the disks. Each NVDIMM has a capacitor and 2GB flash. Data in the NVDIMM is flushed to flash using capacitor power (up to 25 seconds) when node power fails. Writes are ACKed to the client once they have been written and journaled in the NVDIMM. When the system comes back up after an outage, the journal in the NVDIMM flash is replayed. In the event of capacitor failure, data is no longer journaled in the NVDIMM, but is written to disks on a write-through basis.

The system under test consists of 20 2U OceanStor 9000 P Nodes. Each P Node has 3 10GE ports connected to a 10GE switch. One port is used for external connections; the other two are used internally.

None

Item No	Qty	Vendor	Model/Name	Description
1	4	Huawei	Tecal RH2285	48GB RAM Server running SUSE Linux Enterprise Server 11 SP1

LG Type Name	Tecal RH2285
BOM Item #	1
Processor Name	Intel(R) Xeon(R) E5620
Processor Speed	2.4 GHz
Number of Processors (chips)	2
Number of Cores/Chip	4
Memory Size	48 GB
Operating System	SUSE Linux Enterprise Server 11 SP1
Network Type	10 Gigabit Ethernet

Benchmark Parameters

Network Attached Storage Type	NFS V3
Number of Load Generators	4
Number of Processes per LG	1000
Biod Max Read Setting	2
Biod Max Write Setting	2
Block Size	AUTO

Testbed Configuration

LG No	LG Type	Network	Target Filesystems	Notes
1..4	LG1	10 Gigabit Ethernet	Single filesystem named /fs	N/A

Load Generator Configuration Notes

All clients are connected to the single filesystem /fs through all OceanStor 9000 P Nodes.

Each load-generating client hosts 1000 processes. The assignment of processes to network interfaces is done such that they are evenly divided across all network paths to the OceanStor 9000 P Nodes.

None.

• Config Diagram
