|Gluesys Co., LTD||:||VTN 2400|

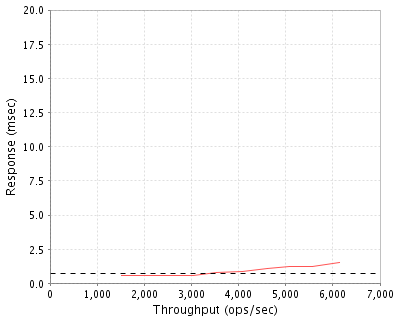

|SPECsfs2008_nfs.v3||=||6135 Ops/Sec (Overall Response Time = 0.75 msec)|
|Tested By||Gluesys Co., LTD|
|Product Name||VTN 2400|
|Hardware Available||May 2013|
|Software Available||May 2013|
|Date Tested||May 2013|
|SFS License Number||3473|
The Gluesys VTN 2400 appliance provides tier based NAS Storage Solution. The Internal Cache disk will be configured with SSD, SAS and SATA. Tier Policy supports "path preserve mode" function that preserves filename and migrated file path, as a result Migration Target System can serve migrated files with read only mode.
Migration Target System Example
|1||1||Storage Appliance||Gluesys Co., LTD||VTN 2400||Virtual Tier based NAS Appliance running TierCat OS 0.1 software. Maxium 24 Disks can be included.|
|2||1||Storage Appliance||Gluesys Co., LTD||AnyStor 500||Gluesys NAS Storage Solution. Maxium 24 Disks will be included.|
|OS Name and Version||TierCat 0.1|
|atime age||8 hours||Files may be migrated to the AnyStor 500 Storage if there is no access up to 8 hours.|
|high watermark||80||When 80% of Internal Cache Storage used, Migration will start automatically.|
|low watermark||50||When 50% of Internal Cache Storage used, Migration process will stop automatically.|
|path preserve mode||yes||It will preserve Migration Path. So NFS/CIFS Clients can read files directly from AnyStor 500 NAS Storage.|
20+2 RAID6 array were created on VTN 2400 Appliance, and 2 hot spares were attached. And the 120GB SSD disk was used for secondary read cache.
|Description||Number of Disks||Usable Size|
|VTN 2400 contains 24 2TB 7200K RPM SATA Disks. All Data resides on these disks.||24||35.2 TB|
|VTN 2400 contain 1 250G SATA disk. Used for System OS.||1||250.0 GB|
|VTN 2400 contain 1 120G SSD disk. Used for secondary Volume cache.||1||120.0 GB|
|AnyStor 500 contains 24 3TB 7200 RPM SATA Disks. The GXFS file system is used to manage these disks and the VTN 2400 can access them via NFSv3.||24||39.1 TB|
|AnyStor 500 contain (1) 250G SATA disk. System OS used.||1||250.0 GB|
|Number of Filesystems||1|
|Total Exported Capacity||36000 GB|
|Filesystem Type||TCFS (TierCat Filesystem 0.1)|
|Filesystem Creation Options||Default setup. Disable Compression and deduplication functions. AnyStor 500 Appliance set up was also default.|
|Filesystem Config||VTN 2400 (20+2 RAID6, 2 Hot Spares). AnyStor 500 (20+2 RAID6, 2 Hot Spares).|
|Fileset Size||703.1 GB|
|Item No||Network Type||Number of Ports Used||Notes|
|1||10G Gigabit Ethernet||1||One 10 Gigabit Ethernet port used for VTN 2400 appliance.|
|2||Gigabit Ethernet||1||The AnyStor 500 Appliance is connected via 1 Gigabit Ethernet.|
The VTN 2400 Appliance was attached to Load Generator directly with 10G NIC. The VTN 2400 and AnyStor 500 were attached to a CISCO 3560G-TS-S 1G Switch.
There were two 10 gigabit ethernet network interfaces on storage controller. The interfaces were configured to use jumbo frames (MTU size of 9000 bytes).
|Item No||Qty||Type||Description||Processing Function|
|1||2||CPU||Intel(R) Xeon(R) CPU E5-2407 0 @ 2.20GHz||VTN 2400 OS, Network, NFS/CIFS, Filesystem, Device Drivers|
|2||1||CPU||Intel(R) Xeon(R) CPU E5-2407 0 @ 2.20GHz||AnyStor 500 OS, Network, NFS/CIFS, Filesystem, Device Drivers|
There is no additional processing ASIC.
|Description||Size in GB||Number of Instances||Total GB||Nonvolatile|
|VTN 2400 System 1st Cache||8||2||16||V|
|VTN 2400 NVRAM module||1||1||1||NV|
|AnyStor 500 System 1st Cache||8||1||8||V|
|AnyStor 500 NVRAM module||0.5||1||0.5||NV|
|VTN 2400 2th Cache||120||1||120||NV|
|Grand Total Memory Gigabytes||145.5|
The VTN 2400 node has main memory that is used for the operating system and for caching data and meta-data. Main memory will be extended up to 128GB.
The VTN 2400 has 1GB NVRAM. A user's data and meta data changes log to the NVRAM module. For the performance reason, 120G SSD is used for secondary READ cache. Filesystem modifying NFS operations are not acknowledged until the data has been safely stored in NVRAM. The battery backup for NVRAM ensures that any uncommitted transactions persist for at least 72 hours.
The system under test consists of one VTN 2400 storage appliance housed in a single 4U chassis, with 24 2TB SATA disk drives. A dual-port gigabit ethernet host bus adapter was present in a PCI-e expansion slot. A 120G SSD was present in a PCI-e expansion slot and enabled with secondary filesystem cache. The storage disks were configured with RAID6(22) and hot spares(2) by TierCat Volume Manager. The system under test was connected to 10 gigabit ethernet (cross link to Load Generator).
|1||1||SuperMicro||X8DTH-i||WorkStation with 16G RAM and Linux Operation System|
|LG Type Name||LG1|
|BOM Item #||1|
|Processor Name||Intel(R) Xeon(R) CPU E5606|
|Number of Processors (chips)||2|
|Number of Cores/Chip||4|
|Memory Size||16 GB|
|Network Type||Intel Corporation 82599EB 10-GigE|
|Network Attached Storage Type||NFS V3|
|Number of Load Generators||1|
|Number of Processes per LG||10|
|Biod Max Read Setting||2|
|Biod Max Write Setting||2|
|LG No||LG Type||Network||Target Filesystems||Notes|
One Load Generator (LG1) was connected to VTN 2400 storage appliance directly via 10G Ethernet.
The LG1 client hosted 10 processes. The assignment of processes to filesystems and network interfaces was done such that they were evenly divided across all filesystems and network paths to the storage controllers. The filesystem data was striped evenly across all disks.
The VTN 2400 Stoarge Appliance hardware was designed for Legacy Storage Server. A Linux/Windows OS can be installed.
Generated on Wed Jun 05 16:02:16 2013 by SPECsfs2008 HTML Formatter
Copyright © 1997-2008 Standard Performance Evaluation Corporation
First published at SPEC.org on 28-May-2013
