SPECsfs2008_cifs Result

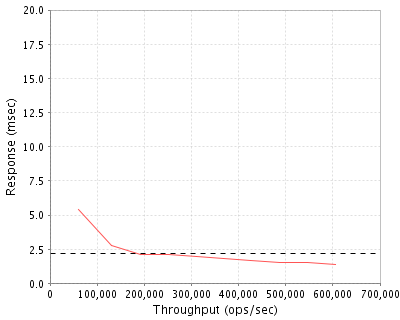

Throughput (ops/sec) Response (msec) 60534 5.4 129503 2.8 192153 2.1 250999 2.1 310806 2.0 369024 1.8 426202 1.7 487029 1.5 546452 1.5 605629 1.4

Tested By	Isilon Systems, LLC.
Product Name	S200-6.9TB-200GB-48GB-10GBE - 56 Nodes
Hardware Available	April 2011
Software Available	March 2011
Date Tested	May 2011
SFS License Number	47
Licensee Locations	Hopkinton, MA

The Isilon S200, built on Isilon's proven scale-out storage platform, provides enterprises with industry-leading IO/s from a single file system, single volume. The S200 accelerates business and increases speed-to-market by providing scalable, high performance storage for mission critical and highly transactional applications. In addition, the single filesystem, single volume, and linear scalability of the OneFS operating system enables enterprises to scale storage seamlessly with their environment and application while maintaining flat operational expenses. The S200 is based on enterprise-class 2.5" 10,000 RPM Serial Attached SCSI drive technology, 10GbE Ethernet networking, dual quad-core Intel CPUs, a high performance Infiniband back-end, and up to 13.8 TB of globally coherent cache. The S200 scales from as few as 3 nodes to as a high as 144 nodes in a single file system, single volume.

Item No	Qty	Type	Vendor	Model/Name	Description
1	56	Storage Node	Isilon	S200-6.9TB & 200GB SSD, 48GB RAM, 2x10GE SFP+ & 2x1GE	S200 6.9TB SAS + SSD Storage node
2	56	Software License	Isilon	OneFS 6.5.1	OneFS 6.5.1 License
3	1	Infiniband Switch	QLogic	9120-144	144 Port DDR Infiniband Switch

OS Name and Version	OneFS 6.5.1
Other Software	N/A
Filesystem Software	OneFS

Name	Value	Description
NA	NA	NA

Server Tuning Notes

N/A

Description	Number of Disks	Usable Size
300GB SAS 10k RPM Disk Drives	1288	334.6 TB
200GB SSD	56	10.0 TB
Total	1344	344.5 TB

Number of Filesystems	1
Total Exported Capacity	344.5 TB
Filesystem Type	IFS
Filesystem Creation Options	Default
Filesystem Config	13+1 Parity Protected
Fileset Size	70318.1 GB

Default SSD policy stores one mirror of all metadata on SSD. File data for a given file is striped across 14 nodes.

Item No	Network Type	Number of Ports Used	Notes
1	10GbE with Jumbo Frames	56	10GbE SFP+ PCIe NIC

Network Configuration Notes

The Brocade MLXe-32 configured with 232 wire speed 10GbE ports delivering full utilization of all links for optimum network utilization and instantaneous link or node failover. Non-stop networking is further achieved through hitless failover and software upgrades, and fully redundant hardware components. The configuration provided a single VLAN, with STP disabled and Jumbo Frame support enabled.

Each load generator and each S200 storage node was configured with a single 10GbE, 9000 MTU connection to the MLXe-32.

Item No	Qty	Type	Description	Processing Function
1	112	CPU	Intel E5620, Quad-Core CPU, 2.40 GHz	Network, CIFS, Filesystem, Device Drivers

Processing Element Notes

Each storage node has 2 physical processors with 4 processing cores

Description	Size in GB	Number of Instances	Total GB	Nonvolatile
Storage Node System Memory	48	56	2688	V
Storage Node Integrated NVRAM module	0.5	56	28	NV
Grand Total Memory Gigabytes			2716

Memory Notes

Each storage controller has main memory that is used for the operating system and for caching filesystem data. A separate, integrated battery-backed RAM module is used to provide stable storage for writes that have not yet been written to disk.

Each storage node is equipped with an nvram journal that stores writes to the local disks. The nvram is protected by 2 batteries, providing stable storage for more than 72 hours. In the event of double battery failure the node will no longer write to the local disks, but continues to write to the remaining storage nodes.

The system under test consisted of 56 S200 storage nodes, 2U each, connected by DDR Infiniband. Each storage node was configured with a single 10GbE network interface connected to a 10GbE switch.

Item No	Qty	Vendor	Model/Name	Description
1	28	Dell	R610	1U Linux client, dual 6-core CPU, 48GB RAM
2	1	Brocade	MLXe32	Brocade NetIron MLXe32 Chassis with 10GbE blades

LG Type Name	LG1
BOM Item #	1
Processor Name	Intel E5645
Processor Speed	2.40 GHz
Number of Processors (chips)	2
Number of Cores/Chip	6
Memory Size	48 GB
Operating System	CentOS release 5.5 kernel 2.6.18-164.11.1.el5
Network Type	Intel 82598EB 10-Gigabit AF

Benchmark Parameters

Network Attached Storage Type	CIFS
Number of Load Generators	28
Number of Processes per LG	32

Testbed Configuration

LG No	LG Type	Network	Target Filesystems	Notes
1..28	LG1	1	/ifs/data

Load Generator Configuration Notes

All clients were connected to a single filesystem through all storage nodes

Each load-generating client hosted 32 processes. The assignment of processes to network interfaces was done such that they were evenly divided across all network paths to the storage controllers. The filesystem data was striped evenly across all disks and storage nodes.
