SPECsfs2008_cifs Result

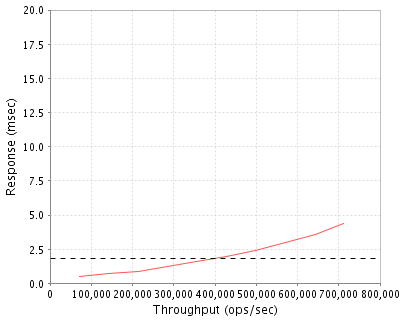

Throughput (ops/sec) Response (msec) 71201 0.5 142149 0.7 213364 0.9 284738 1.2 356037 1.6 427781 2.0 498954 2.4 571026 3.0 644303 3.6 712664 4.4

Tested By	Huawei Symantec
Product Name	Oceanspace N8500 Clustered NAS Storage System
Hardware Available	March 2011
Software Available	March 2011
Date Tested	March 2011
SFS License Number	3726
Licensee Locations	The West Zone Science Park of UESTC,No.88,Tianchen Road,Chengdu CHINA

The N8500 Clustered NAS Storage System is an advanced, modular, and unified storage platform (including NAS, FC-SAN, and IP SAN) designed for high-end and mid-range storage applications. Huawei Symantec fully owns the intelligent property right (IPR) of the Huawei Symantec Oceanspace N8500 Clustered NAS Storage System. Oceanspace N8500 is a professional integrated storage solution that optimally utilizes storage resources. Its superior performance, reliability, ease of management, and flexible scalability maximize its cross-field application potential to span areas such as high-end computing, databases, websites, file servers, streaming media, digital video surveillance, and file backup.

Item No	Qty	Type	Vendor	Model/Name	Description
1	8	Engine Node	Huawei Symantec	N8500	Oceanspace N8500 Clustered NAS Storage System
2	1	Fiber channel switch	HP	HP StorageWorks DC SAN Backbone Director	HP StorageWorks DC SAN Backbone Director 384*8G ports
3	18	Storage Controller	Huawei Symantec	S5600	Huawei Symantec Oceanspace N8500 Storage Unit---storage array Controller,4U hard disk frame,24 hard disks
4	54	Storage Expansion	Huawei Symantec	D200	Huawei Symantec Oceanspace N8500 Storage Unit---storage array Expansion,4U hard disk frame,24 hard disks
5	1728	Disk	Huawei Symantec	FC-450GB	450GB 15K RPM FC disk

OS Name and Version	N8000 Clutsered NAS Engine Software V100R002
Other Software	Integrated Storage Management V100R003C01
Filesystem Software	VxFS

Name	Value	Description
read_pref_io	32768	Preferred read request size.
noatime	on	Mount option added to all filesystems to disable updating of access times.
vx_ninode	3000000	Maximum number of inodes to cache.
write_throttle	1	The number of dirty pages per file.

Server Tuning Notes

None.

Description	Number of Disks	Usable Size
96 disks per storage unit (One S5600 + Three D200s), bound into 8 6+6 RAID-10 LUNs; every 18 LUNs, one from each storage unit, creates a filesystem with stripe depth of 18 and stripe size of 1024 KB; total eight filesystems are set up for this test.	1728	350.9 TB
Total	1728	350.9 TB

Number of Filesystems	8
Total Exported Capacity	196608 GB
Filesystem Type	VxFS
Filesystem Creation Options	Default
Filesystem Config	One file system was mounted and exported from each node.
Fileset Size	83213.1 GB

Item No	Network Type	Number of Ports Used	Notes
1	10 Gigabit Ethernet	8	There are 2 10GbE network ports per node, 1 port in use.

Network Configuration Notes

All clients connected to a Huawei Quidway S9303 10GbE switch.

An MTU size of 9000 was set for all connections.

Item No	Qty	Type	Description	Processing Function
1	16	CPU	Intel Six-Core Xeon Processor X5680 3.33GHz,12MB L2 cache	VxFS,CIFS,TCP/IP
2	36	CPU	Quad-Core AMD Opteron(tm) Processor 2372GHz,512KB L2 cache	block serving

Processing Element Notes

Each N8500 NAS Engine Node has two physical processors.

Description	Size in GB	Number of Instances	Total GB	Nonvolatile
Clustered NAS Engine Nodes memory	96	8	768	V
S5600 storage controller provide write cache vault. When power failure is detected, a standby ups will kick in to hold the controller cache contents and controller will flush them back to internal disk. Data in the controller cache is guarantee stable more than 72 hours.	32	18	576	NV
Grand Total Memory Gigabytes			1344

Memory Notes

Each Storage Unit has dual storage controllers that work as an active-active failover pair.

S5600 storage controller provide write cache vault. When power failure is detected, a standby ups will kick in to hold the controller cache contents and controller will flush them back to internal disk. Data in the controller cache is guarantee stable more than 72 hours.

Default configuration

None

Item No	Qty	Vendor	Model/Name	Description
1	8	IBM	X3850 X5	16G RAM and Red Hat Enterprise Linux Server release 5.3
2	1	Huawei	Huawei Quidway S9303	Huawei Quidway S9303 10 GbE 24-port switch

LG Type Name	IBM X3850 X5
BOM Item #	1
Processor Name	Intel(R)Xeon(R)CPU E7530
Processor Speed	1.87GHZ
Number of Processors (chips)	2
Number of Cores/Chip	6
Memory Size	16 GB
Operating System	Red Hat Enterprise Linux Server release 5.3
Network Type	10 Gigabit Ethernet

Benchmark Parameters

Network Attached Storage Type	CIFS
Number of Load Generators	8
Number of Processes per LG	432

Testbed Configuration

LG No	LG Type	Network	Target Filesystems	Notes
1..8	LG1	10 Gigabit Ethernet	/vx/_fs1$,/vx/_fs2$,/vx/_fs3$,/vx/_fs4$,/vx/_fs5$,/vx/_fs6$,/vx/_fs7$,/vx/_fs8$	N/A

Load Generator Configuration Notes

All filesystems were mounted on all clients.

Each client has all file systems mounted from each node.

There are 8 filesystems: fs1, fs2, fs3, fs4, fs5, fs6, fs7, fs8. All of them are cluster mounted on all the 8 server nodes. Each server node in the cluster exports one filesystem out of the 8 clustered filesystems. For example, node 1 exports fs1, node 2 exports fs2, and so on. SpecSFS clients connect to a network switch to gain access to all the 8 server nodes in the cluster, and map all 8 CIFS shares. Each specSFS client is able to do read/write IOs to all the 8 filesystems in a unified way with this setup.

• Config Diagram
