SPECsfs2008_nfs.v3 Result

Throughput (ops/sec) Response (msec) 1027 0.8 2055 1.8 3086 2.6 4093 3.1 5139 2.3 6169 2.7 7196 3.4 8259 4.5 9389 11.8 10117 12.0 10305 12.2

Tested By	Silicon Graphics, Inc.
Product Name	SGI InfiniteStorage NEXIS 9000
Hardware Available	April, 2008
Software Available	May, 2008
Date Tested	April, 2008
SFS License Number	4
Licensee Locations	Mountain View, California

SGI® InfiniteStorage NEXIS 9000 Network-Attached Storage Appliance (NAS) is designed for scientific, education, or enterprise teams to maximize bandwidth for demanding and scalable High Performance Computing (HPC) applications or to consolidate multiple departments on a single NAS platform. It reduces CPU overhead and supports large Cache memory with an expanded cache architecture. NEXIS 9000 delivers high throughput to applications over InfiniBand (IB), 10GbE and/or GbE networks. A single NEXIS 9000 can scale storage capacity from 48 drives to 480 drives. NEXIS appliances support NFS v3 & v4, CIFS, FTP, TCP, SSH as well as iSCSI over IB and a web-based GUI for setup, management and monitoring storage resources, their utilization and performance.

For the most demanding HPC workloads, SGI® InfiniteStorage NEXIS 9000 NFS/RDMA over InfiniBand (IB) provides a low cost/high performance transport architecture reducing client CPU overhead, utilizing high-bandwidth IB fabrics and maximizing throughput.

Item No	Qty	Type	Vendor	Model/Name	Description
1	1	Base Server	SGI	N9K-BASE-220-4	NEXIS 9000 BASE HIGH PERF NAS with 4 IS220
2	1	Server Upgrade	SGI	N9K-EXP-220-6	NEXIS 9000 Expansion with 6 additional IS220 (10 total)
3	12	Memory	SGI	N-MEM-16GB-MC	NEXIS 16GB Mem (4 x 4GB)
4	120	Disk	SGI	N-220-146-I	Nexis 146GB 15k rpm SAS Drive for InfiniteStorage 220
5	10	Disk & Enclosure	SGI	N-DE-220-146-I	12 bay tray with 12 146GB 15k rpm SAS Drives and RMKit
6	5	IB Controller	SGI	PCIE-IB-HCA410D	InfiniBand HCA (X8 PCIe, low profile, memory free) w/ single 4X DDR IB port
7	1	Rack	SGI	NEXIS-RACK-TALL	InfiniteStorage NEXIS Rack for all NAS Bundles
8	4	Power	SGI	LSX-PDU-220-Z	Power Distribution Unit for US, CANADA, JAPAN, KOREA, TAIWAN
9	1	Software	SGI	SR5-NFS-RDMA-4	NFS RDMA License
10	1	Software	SGI	SC5-APPMGR-4.2	NAS software for bundles includes Appliance Manager software, ProPack 5 and SLES 10 media kits
11	1	Software	SGI	SR5-PP-SV1-4-3Y	SGI ProPack Server for 1-4 sockets 3 yrs upgrade protection.
12	1	Software	SGI	SR5-SLS-SV1-32-3Y	SMP server 1-32 sockets with 3 yr of upg protection; for IPF or x86_64 systems.
13	10	Software	SGI	SC5-ISSM-WE-2.70	ISSM Workgroup Edition for SGI InfiniteStorage 220 - for Linux

OS Name and Version	SUSE Linux Enterprise Server 10 (ia64) SP1 2.6.16.54-0.2.5-default
Other Software	SGI InfiniteStorage Software Platform, version 1.2.1; SGI ProPack 5SP5 for Linux; ISSM Workgroup Edition for SGI InfiniteStorage 220 - for Linux
Filesystem Software	XFS

Name	Value	Description
/proc/irq/71/smp_affinity	8	Override factory IRQ binding for 2nd IB interface; bind to CPU 3 instead of CPU 5.
vm.dirty_expire_centisecs	100	Data that has been in memory for longer than this interval will be written out next time a pdflush daemon wakes up. Expressed in 100ths of a second.

Server Tuning Notes

System defaults used except as noted. "Capacity IOPS" selected at system initialization.

Description	Number of Disks	Usable Size
Mirrored boot disk for system use only	2	300.0 GB
24 disks per IS220 RAID unit, bound into 4 4+1 RAID5 LUNs + 4 spare, all assembled into a single file system.	240	22.9 TB
Total	242	23.1 TB

Number of Filesystems	1
Total Exported Capacity	23404 GB
Filesystem Type	XFS
Filesystem Creation Options	Default
Filesystem Config	AppMan default for "Capacity IOPS" consisting of 10 stripe sets built from LUNs on 4 different controllers. The stripe sets are concatenated into an XVM logical volume. The file system uses all available capacity on the resulting logical volume.
Fileset Size	1216.2 GB

Item No	Network Type	Number of Ports Used	Notes
1	InfiniBand	4	Default

Network Configuration Notes

Two IB ports connect to each blade enclosure in the client cluster. The top and bottom available ports were used on the integral IB Plane 1 switch in each blade enclosure.

Cluster IB plane 1 used for NFS on IP over IB. Physical connections from four Nexis 9000 IB ports to the upper and lower available IB switch ports on the right side of each Altix ICE blade enclosure, four connections total. One Nexis 9000 IB port and one IB plane 1 port on each Altix ICE blade enclosure were unused. Cluster IB plane 0 used for interprocess communication. Gigabit Ethernet used only for cluster administration.

Item No	Qty	Type	Description	Processing Function
1	8	CPU	Intel® Itanium® processor 9030, 1.6 GHz, 533 MHz FSB, 8 chips, 16 cores, 2 cores/chip, DDR2 FB-DIMM memory	TCP/IP, NFS protocol, XFS file system, XVM volume manager

Processing Element Notes

None.

Description	Size in GB	Number of Instances	Total GB	Nonvolatile
Server main memory, DDR2 FB-DIMM, PC2 3200R	16	12	192	V
HW RAID memory w/ 72 hour battery backup.	2	10	20	NV
Grand Total Memory Gigabytes			212

Memory Notes

The RAID unit mirrored write cache is backed up with a battery unit able to retain the write cache for 72 hours in the event of a power failure.

NFS stable write and commit operations are not acknowledged until after the RAID storage system has acknowledged that the related data stored at least in mirrored non-volatile RAM. The storage array has dual storage processor units that work as an active-active failover pair. When one of the storage processors or battery units are off-line, the system turns off the write cache and writes directly to disk before acknowledging any write operations.

Default configuration

None.

Item No	Qty	Vendor	Model/Name	Description
1	1	SGI	LCB-SYSTEM	Altix ICE system
2	2	SGI	LCB-BASE-CB-4X-2	Altix ICE blade enclosure with two InfiniBand switches (dual plane), redundant power and fans
3	1	SGI	LCB-TORUS	3D torus or hypercube topology
4	32	SGI	LCB-BLADE-CB	Altix ICE compute blade with 2-sockets, which support processors with a 1333MHz FSB, and 8 DIMM slots.
5	64	SGI	LCB-CPU-5355-CB	2.66GHz/8M/1333MHz Quad-core Xeon Processor
6	128	SGI	LCB-MEM-FB-4G-CB	4GB Fully Buffered DIMM set (2 x 2GB, 667MHz)
7	8	SGI	IB-CABLE-01M-Z	InfiniBand 4x Cable - 1M
8	4	SGI	IB-CABLE-02M-Z	InfiniBand 4x Cable - 2M
9	1	SGI	LCB-DVD-RW-INT	Internal DVD RW drive for Altix ICE
10	6	SGI	RACK-PWR-CB-1PH	Single phase PDU (US)
11	1	SGI	LCB-CONSOLE	Console with keyboard, video and mouse
12	1	SGI	LCB-LOGIN-NODE	Login node
13	1	SGI	LCB-SYS6015	Altix ICE service node (1U, RPS, RAID)
14	2	SGI	LCB-MEM-FB-2G-SN	2GB Fully Buffered DIMM set (2 x 1GB, 667MHz) for Altix ICE system admin controller and service nodes
15	2	SGI	LCB-SASDRV-73G	73GB 15K RPM SAS HDD for Altix ICE
16	1	SGI	LCB-CPU-5150-SN	Additional 2.66GHz Dual-core Xeon Processor

LG Type Name	LG1
BOM Item #	4
Processor Name	LCB-CPU-5355-CB
Processor Speed	2.66 GHz
Number of Processors (chips)	2
Number of Cores/Chip	4
Memory Size	16 GB
Operating System	SLES10 SP1
Network Type	Built-in NICs, 2 each 4xDDR InfiniBand, 1 each Gigabit Ethernet

Benchmark Parameters

Network Attached Storage Type	NFS V3
Number of Load Generators	32
Number of Processes per LG	8
Biod Max Read Setting	2
Biod Max Write Setting	2
Block Size	1024

Testbed Configuration

LG No	LG Type	Network	Target Filesystems	Notes
1..4	LG1	IB0	FS1	4 cluster nodes accessing storage on the 10.149.0.0/18 IB0 subnet.
5..8	LG1	IB1	FS1	4 cluster nodes accessing storage on the 10.149.64.0/18 IB1 subnet.
9..12	LG1	IB2	FS1	4 cluster nodes accessing storage on the 10.149.128.0/18 IB2 subnet.
13..16	LG1	IB3	FS1	4 cluster nodes accessing storage on the 10.149.192.0/18 IB3 subnet.

Load Generator Configuration Notes

One file system mounted by all active clients. Compute nodes in blade enclosure 0 were active as load generators. Compute nodes in blade enclosure 1 were unused.

Every client has the same file system mounted from the server.

None

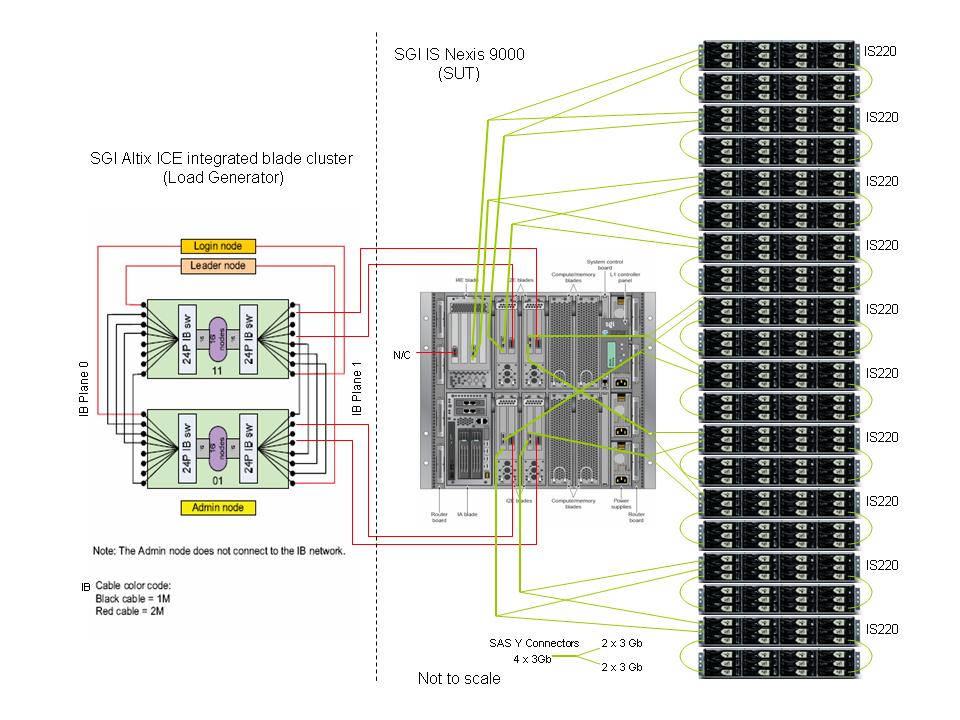

• Config Diagram
