SPECsfs2008_cifs Result

NSPLab(SM) Performed Benchmarking : SPECsfs2008 Reference Platform (CIFS)
SPECsfs2008_cifs = 3088 Ops/Sec (Overall Response Time = 3.44 msec)


320 1.5
642 1.8
961 2.0
1285 2.3
1607 2.6
1924 3.2
2244 4.0
2579 5.6
2897 8.5
3088 10.6

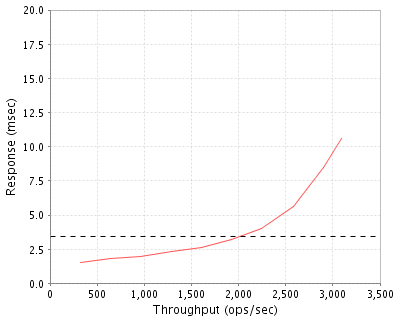

Performance Graph

Product and Test Information

Tested By NSPLab(SM) Performed Benchmarking
Product Name SPECsfs2008 Reference Platform (CIFS)
Hardware Available January 2003
Software Available November 2007
Date Tested December 2007
SFS License Number 2851
Licensee Locations El Paso, TX

The PowerEdge 1600SC Server was setup as a small workgroup file server using AX100 and AX150 arrays to provide RAID 5 storage. The storage was directly connected to the server.

Configuration Bill of Materials

Item No Qty Type Vendor Model/Name Description
1 1 Server Generic PowerEdge 1600SC PowerEdge 1600SC server with single Xeon 2.4GHz processor, running Red Hat Enterprise Linux 5.1 software.
2 2 HBA Generic LightPulse Generic LightPulse 4Gb/s LPe1105-n dual-channel HBA
3 1 Disk Controller Generic AX100 Storage Array running DaU operating environment version 14.92. This array includes 12 146GB/7200 rpm SATA drives.
4 1 Disk Controller Generic AX150 Storage Array running DaU operating environment version 14.92. This array includes 12 230GB/7200 rpm SATA drives.
5 1 Ethernet Switch Generic PowerConnect 2616 16 port Gigabit Ethernet Switch

Server Software

OS Name and Version Linux RHEL 5.1
Other Software Linux RHEL 5.1 kernel 2.6.16
Filesystem Software Samba

Server Tuning

Name Value Description
net.core.rmem_max 1048576 The maximum receive socket buffer size
net.core.wmem_max 1048576 The maximum send socket buffer size
net.core.wmem_default 1048576 The default send socket buffer size
net.core.rmem_default 1048576 The default receive socket buffer size
vm.min_free_kbytes 40960 Force the VM to keep a minimum number of kilobytes free
vm.dirty_background_ratio 1 The percentage of total memory at which the pdflush background writeback daemon will start writing out dirty data.
vm.dirty_expire_centisecs 1 Data that has been in memory for longer than this interval will be written out next time a pdflush daemon wakes up. Expressed in 100ths of a second.
vm.dirty_writeback_centisecs 99 The interval between wakeups of the pdflush daemons. Expressed in 100th of a second.
vm.dirty_ratio 10 The percentage of total memory at which a process that is generating disk writes will start writing out dirty data.

Server Tuning Notes


Disks and Filesystems

Description Number of Disks Usable Size
AX100 array configuration includes 12 146GB disks configured as (10+1)RAID-5 bound as a single LUN on which a 2.0TB CIFS file system is built. One disk is used as a Hot Spare. 12 1.4 TB
AX150 array configuration includes 12 230GB disks configured as (10+1)RAID-5 bound as a single LUN on which a 2.0TB CIFS file system is built. One disk is used as a Hot Spare. 12 2.2 TB
This is an internal SCSI disk drive used for the Linux OS for system use. 1 146.0 GB
Total 25 3.8 TB
Number of Filesystems 2
Total Exported Capacity 3.3 TB
Filesystem Type CIFS
Filesystem Creation Options CIFS via Samba
Filesystem Config A filesystem is created on a LUN on the AX100 and another on a LUN on the AX150. The filesystems are fs1 and fs2.
Fileset Size 372.1 GB

Each of the arrays, AX100 and AX150 contained 12 disks that were configured as (10+1) RAID-5 groups with 64KB RAID stripe size. The 12th disk was configured as hot spare.

Network Configuration

Item No Network Type Number of Ports Used Notes
1 Gigabit Ethernet 1 Used Gigabit Ethernet port on motherboard

Network Configuration Notes

All network interfaces were connected to a the switch.

Benchmark Network

The PowerEdge 1600SC server single on-board network interface was connected to the switch. Each of the LG single on-board network interface was connected to the switch.

Processing Elements

Item No Qty Type Description Processing Function
1 1 CPU Intel Xeon 2.4 Ghz, 1 chip, 1 core per chip, 512KB of (I+D) L2 cache. CIFS protocol
2 4 CPU 1.2 Ghz Intel Celeron, 2 per AX100/AX150 disk array RAID processing

Processing Element Notes



Description Size in GB Number of Instances Total GB Nonvolatile
NAS server main memory 4 1 4 V
Storage Processor main memory 1 2 2 NV
Grand Total Memory Gigabytes     6

Memory Notes

Each storage array has dual storage processor units that work as an active-active failover pair. The mirrored write cache is backed up with a battery unit capable of saving the write cache to disk in the event of a power failure. In the event of a storage array failure, the second storage processor unit is capable of saving all state that was managed by the first (and vise versa), even with a simultaneous power failure. When one of the storage processors or battery units are off-line, the system turns off the write cache and writes directly to disk before acknowledging any write operations. The battery unit can support the retention of data for 2 minutes which is sufficient to write all necessary data twice. Storage processor A could have written 99% of its memory to disk and then fail. In that case storage processor B has enough battery to store its copy of A's data as well as its own.

Stable Storage

2 CIFS file systems were used. Each RAID group was bound in a single LUN on each array. Each file system was configured on one LUN: fs1 on AX150 and fs2 on AX100. Each array had 2 Fibre Channel connections to the server although only one connection was enabled. In this configuration, CIFS write and commit operations are not acknowledged until after the storage array has acknowledged that the related data has been stored in stable storage (i.e. NVRAM or disk).

System Under Test Configuration Notes

See above for the tuning params.

Other System Notes

A minimal amount of Linux tuning was performed to get the benchmark to run successfully. The goal was to measure performance as close to out of the box (default tunings) as possible.

Test Environment Bill of Materials

Item No Qty Vendor Model/Name Description
1 4 Generic 430SC Workstation with single Dual Core Xeon 2.8 GHz with 1 GB RAM

Load Generators

LG Type Name LG1-4
BOM Item # 1
Processor Name Xeon Dual Core
Processor Speed 2.8 GHz
Number of Processors (chips) 1
Number of Cores/Chip 2
Memory Size 1 GB
Operating System Linux RHES 4.2
Network Type BCM95751

Load Generator (LG) Configuration

Benchmark Parameters

Network Attached Storage Type CIFS
Number of Load Generators 4
Number of Processes per LG 10

Testbed Configuration

LG No LG Type Network Target Filesystems Notes
1..4 LG1 1 fs1,fs2 N/A

Load Generator Configuration Notes

Both filesystems were mounted on all clients, which were connected to the same physical and logical network.

Uniform Access Rule Compliance

Each client has the both file systems mounted from each of the 2 storage arrays: AX150 and AX100.

Other Notes

(No other report notes)
