SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SR860 V4 | SPECpower_ssj2008 = 22,331 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Sep 5, 2025 |
| Hardware Availability: | Nov-2025 | Software Availability: | Jun-2025 | Publication: | Sep 26, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

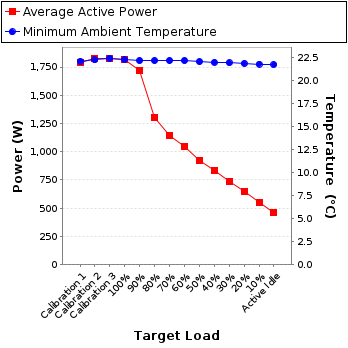

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,790 | 22.1 |
| Calibration 2 | 1,827 | 22.2 |
| Calibration 3 | 1,828 | 22.4 |
| 100% | 1,814 | 22.2 |
| 90% | 1,718 | 22.1 |
| 80% | 1,307 | 22.1 |
| 70% | 1,145 | 22.1 |
| 60% | 1,043 | 22.1 |
| 50% | 924 | 22.0 |
| 40% | 832 | 21.9 |
| 30% | 741 | 21.9 |
| 20% | 646 | 21.8 |
| 10% | 550 | 21.8 |
| Active Idle | 465 | 21.7 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3UD17023E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | China National Accreditation Service for Conformity Assessment (CNAS) |
| Accredited by: | GRG METROLOGY & TEST (BEIJING) CO.,LTD. |
| Calibration Label: | 1GA24011968-0002 |
| Date of Calibration: | 10-Oct-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to PSU 1 PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |

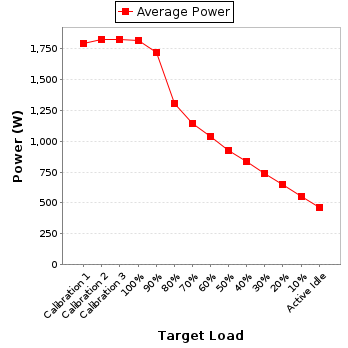

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 221 | 300.0 | 8.13 | 10.0 | 0.998 | 1,790 | 0.2% |
| Calibration 2 | 221 | 300.0 | 8.30 | 10.0 | 0.998 | 1,827 | 0.2% |
| Calibration 3 | 221 | 300.0 | 8.30 | 10.0 | 0.998 | 1,828 | 0.2% |
| 100% | 221 | 300.0 | 8.24 | 10.0 | 0.998 | 1,814 | 0.2% |
| 90% | 221 | 300.0 | 7.81 | 10.0 | 0.998 | 1,718 | 0.2% |
| 80% | 221 | 300.0 | 5.94 | 10.0 | 0.997 | 1,307 | 0.2% |
| 70% | 221 | 300.0 | 5.21 | 10.0 | 0.997 | 1,145 | 0.3% |
| 60% | 221 | 300.0 | 4.75 | 10.0 | 0.996 | 1,043 | 0.3% |
| 50% | 220 | 300.0 | 4.21 | 10.0 | 0.995 | 924 | 0.3% |
| 40% | 220 | 300.0 | 3.80 | 5.0 | 0.993 | 832 | 0.2% |
| 30% | 221 | 300.0 | 3.39 | 5.0 | 0.990 | 741 | 0.2% |
| 20% | 221 | 300.0 | 2.97 | 5.0 | 0.987 | 646 | 0.3% |
| 10% | 221 | 300.0 | 2.53 | 5.0 | 0.985 | 550 | 0.3% |
| Active Idle | 221 | 300.0 | 2.16 | 5.0 | 0.979 | 465 | 0.3% |
