Lenovo Global Technology ThinkEdge SE100 ssj_ops@100% = 996,616
ssj_ops@100% per JVM = 124,577
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Apr 30, 2025
Hardware Availability: May-2025 Software Availability: Sep-2024 Publication: May 20, 2025
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     876,397
Calibration 2     995,834
Calibration 3     1,008,327
ssj_ops@calibrated=1,002,081
100% 99.5% 1,002,081 996,616
90% 89.6% 901,873 897,845
80% 80.0% 801,664 801,795
70% 69.6% 701,456 697,684
60% 60.2% 601,248 603,015
50% 50.0% 501,040 501,174
40% 39.9% 400,832 399,867
30% 29.9% 300,624 299,427
20% 20.1% 200,416 201,690
10% 10.2% 100,208 101,742
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkEdge SE100
Form Factor: 1U
CPU Name: Intel Core Ultra 7 255H
CPU Characteristics: 16 Core, 2.0GHz, 24MB L3 Cache
CPU Frequency (MHz): 2000
CPU(s) Enabled: 16 cores, 1 chip, 16 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 48 KB D on chip per core
Secondary Cache: 3 MB I+D on chip per core
Tertiary Cache: 24 MB I+D off chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8GB 1Rx16 PC5-6400B; slots 1 and 2 populated
Power Supply Quantity and Rating (W): 1 x 140
Power Supply Details: Lenovo P/N:4X27A92699
Disk Drive: 1 x 240GB M.2 SSD P/N:4XB7A89422
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1GbE RJ45
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows 11 Enterprise
OS Version: Version 24H2(OS Build 26100.1742)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.10+11-LTS-240, mixed mode, sharing), version 17.0.10
JVM Command-line Options: -server -Xmn900m -Xms1024m -Xmx1024m -XX:ParallelGCThreads=2 -XX:+UseLargePages -XX:InlineSmallCode=1500 -XX:AutoBoxCacheMax=20000 -XX:+UseParallelGC -XX:FreqInlineSize=2500 -XX:CompileThresholdScaling=210
JVM Affinity: start /NODE [0] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 8
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: DZE103U
Management Firmware Version: DZX311C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: KB5043080
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
DESKTOP-KJ3I2UJ.001 172,172
DESKTOP-KJ3I2UJ.002 110,604
DESKTOP-KJ3I2UJ.003 113,529
DESKTOP-KJ3I2UJ.004 111,803
DESKTOP-KJ3I2UJ.005 110,875
DESKTOP-KJ3I2UJ.006 173,475
DESKTOP-KJ3I2UJ.007 169,531
DESKTOP-KJ3I2UJ.008 34,627
ssj_ops@100% 996,616
ssj_ops@100% per JVM 124,577

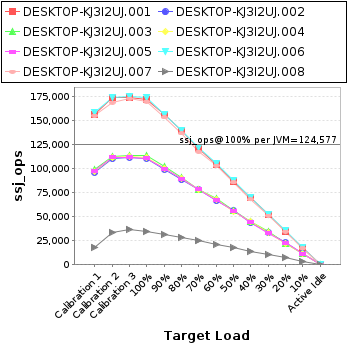

Graph of per-instance results

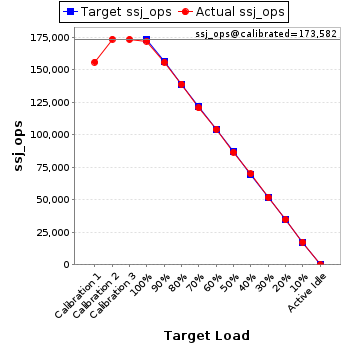

JVM 'DESKTOP-KJ3I2UJ.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     156,057
Calibration 2     173,614
Calibration 3     173,549
ssj_ops@calibrated=173,582
100% 99.2% 173,582 172,172
90% 89.8% 156,224 155,866
80% 80.1% 138,866 139,049
70% 69.5% 121,507 120,713
60% 60.1% 104,149 104,240
50% 49.9% 86,791 86,667
40% 40.3% 69,433 69,891
30% 29.9% 52,075 51,865
20% 20.0% 34,716 34,658
10% 10.0% 17,358 17,420
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,952
Calibration 2     110,198
Calibration 3     111,690
ssj_ops@calibrated=110,944
100% 99.7% 110,944 110,604
90% 89.5% 99,850 99,291
80% 79.6% 88,755 88,336
70% 70.6% 77,661 78,295
60% 60.0% 66,566 66,621
50% 50.5% 55,472 56,031
40% 39.3% 44,378 43,614
30% 30.0% 33,283 33,332
20% 20.4% 22,189 22,650
10% 10.0% 11,094 11,125
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

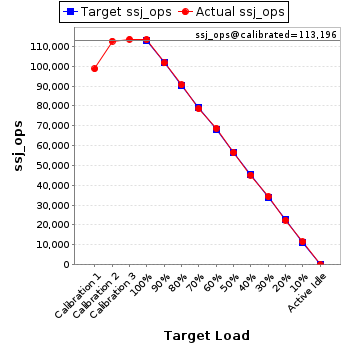

JVM 'DESKTOP-KJ3I2UJ.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,701
Calibration 2     112,749
Calibration 3     113,643
ssj_ops@calibrated=113,196
100% 100.3% 113,196 113,529
90% 89.8% 101,876 101,681
80% 80.1% 90,557 90,617
70% 69.4% 79,237 78,589
60% 60.7% 67,917 68,766
50% 49.9% 56,598 56,526
40% 39.9% 45,278 45,181
30% 30.3% 33,959 34,266
20% 19.8% 22,639 22,412
10% 10.1% 11,320 11,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

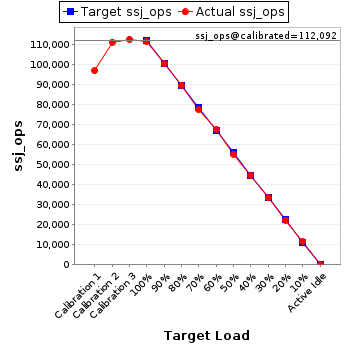

JVM 'DESKTOP-KJ3I2UJ.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,111
Calibration 2     111,395
Calibration 3     112,788
ssj_ops@calibrated=112,092
100% 99.7% 112,092 111,803
90% 89.6% 100,883 100,431
80% 80.1% 89,673 89,789
70% 69.4% 78,464 77,754
60% 60.4% 67,255 67,726
50% 49.3% 56,046 55,295
40% 39.9% 44,837 44,693
30% 29.8% 33,628 33,416
20% 19.9% 22,418 22,296
10% 10.3% 11,209 11,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,699
Calibration 2     111,628
Calibration 3     111,775
ssj_ops@calibrated=111,702
100% 99.3% 111,702 110,875
90% 89.5% 100,532 100,014
80% 79.9% 89,361 89,195
70% 70.1% 78,191 78,350
60% 59.9% 67,021 66,934
50% 50.2% 55,851 56,072
40% 39.7% 44,681 44,310
30% 29.5% 33,511 32,915
20% 20.4% 22,340 22,792
10% 10.0% 11,170 11,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

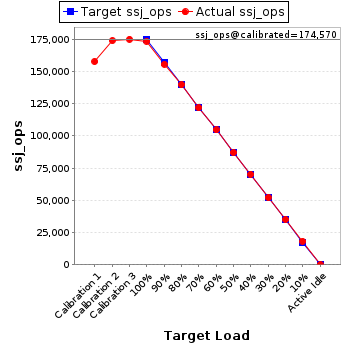

JVM 'DESKTOP-KJ3I2UJ.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     157,813
Calibration 2     174,026
Calibration 3     175,113
ssj_ops@calibrated=174,570
100% 99.4% 174,570 173,475
90% 89.2% 157,113 155,687
80% 80.0% 139,656 139,700
70% 69.8% 122,199 121,877
60% 60.0% 104,742 104,711
50% 49.9% 87,285 87,188
40% 40.2% 69,828 70,210
30% 29.8% 52,371 52,068
20% 20.1% 34,914 35,075
10% 10.4% 17,457 18,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,877
Calibration 2     168,542
Calibration 3     172,799
ssj_ops@calibrated=170,670
100% 99.3% 170,670 169,531
90% 89.9% 153,603 153,400
80% 80.0% 136,536 136,515
70% 68.7% 119,469 117,278
60% 60.3% 102,402 102,949
50% 50.3% 85,335 85,829
40% 39.7% 68,268 67,826
30% 30.0% 51,201 51,133
20% 20.2% 34,134 34,391
10% 10.1% 17,067 17,232
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'DESKTOP-KJ3I2UJ.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     18,187
Calibration 2     33,681
Calibration 3     36,969
ssj_ops@calibrated=35,325
100% 98.0% 35,325 34,627
90% 89.1% 31,793 31,476
80% 80.9% 28,260 28,595
70% 70.3% 24,728 24,828
60% 59.6% 21,195 21,069
50% 49.7% 17,663 17,566
40% 40.0% 14,130 14,141
30% 29.5% 10,598 10,432
20% 21.0% 7,065 7,417
10% 10.0% 3,533 3,533
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
